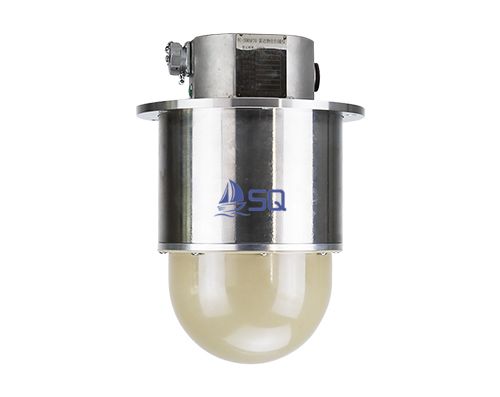

3D Radar Level Scanner

The 3D radar level scanner is a level instrument product developed and applied by our company based on years of experience in radar scanner product development and application. In response to customers' needs for 3D three-dimensional multi-point scanning detection, we further develop and create it. Previously, radar scanners used a single point detection scheme, which could not reflect the overall material level of the silo. The 3D radar level scanner is based on frequency modulated continuous wave (FMCW) radar level measurement technology, and adopts our company's proprietary radar beam scanning scheme to achieve multi-point scanning and 3D imaging of materials.

The 3D radar level scanner can be installed on the top of various types of material silos to scan the electromagnetic beam of the materials inside the silo. The data obtained from the beam scanning can be uploaded to a computer through a pre specified industrial bus interface, such as 485 bus, HART bus, network interface, or fiber optic. Through imaging software algorithms, the 3D image inside the raw material silo is reproduced, and the highest point position inside the silo is determined according to actual requirements, Real time display of information such as the lowest point position, average material level, total material volume, and total material quality.

model
TC-3DRSF30 TC-3DRSF70
Scanning angle
Horizontal 360 ° pitch ± 45 °
Scan cycle
1-3 Min
working frequency
120GHz
range
30m  70m
Single point measurement accuracy
± 2mm
Volume measurement accuracy
<2%
Power supply voltage

DC 12-28V
Maximum power

12W
Working temperature

-25 ℃~60 ℃
Protection level

IP66
Flange size

210mm
Signal output

2-way RS485
Functional highlights
This product uses high-frequency circuit to generate electromagnetic waves with specific modulation frequency (FMCW), and has good measurement effect under severe working conditions such as strong dust, foam, water vapor, crystallization, spraying, etc.
Real time detection of the highest and lowest points of the material level in the silo, calculation of average height, material volume, weight, and other data, forming a three-dimensional image.
This product can finely measure dynamic silos and is mainly used in the coal industry, cement industry, steel and metallurgical industry, petrochemical industry, food industry, etc.
