China 3D Robot Fiber Laser Cutting Machine Introduction:
Specifications
Description
3D Robot Fiber Laser Cutting Machine
3D Robot Fiber Laser Cutting Machine
It can organize a certain number of cutting units to form an automated production line to meet the production needs of medium batch.
High precision Staubli industrial robot, aluminum alloy arm, light weight; The unique hoisting device ensures the operating accuracy under any posture ;
Using fiber laser source, the beam has good quality, stable power and low energy consumption.
Fiber transmission, small energy loss, protective safety, convenient installation ;
The robot is equipped with gantry crane, which has a large working range and is close to the loading area. It can process large sheet metal forming parts ;
Equipped with the laser cutting head with the leapfrog function, the structure is compact, the weight is light, the focus lens is double protected, and the cost is low ;
The fully enclosed outer protective device adopts the safety interlock design, effectively isolating the processing zone, avoiding the radiation damage of the laser and high safety ;
Intelligent operation terminal, simple interface, clear identification, easy to learn; Embedded process database, flexible use, effectively reduce the use of difficulty ;
Robot fiber cutting system with remote diagnosis, remote assistance function, after-sales service response fast ;
The robot and the cutting head are equipped with reliable collision quick reset device to effectively protect the key parts ;
It can organize a certain number of cutting units to form an automated production line to meet the production needs of medium batch.
|
Model
|

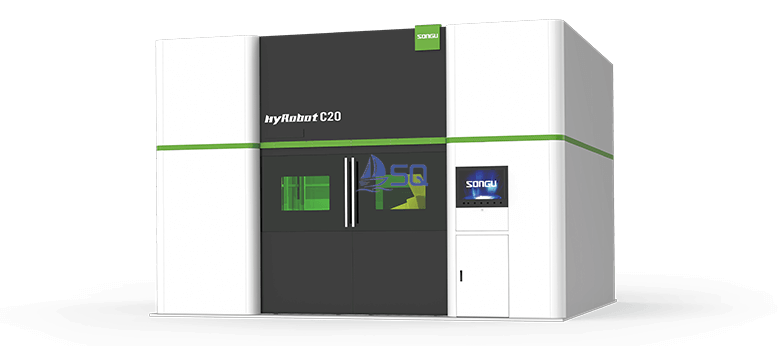

HyRobot C20
|
|
Mechanical arm span
|
≤2010mm
|
|
Output laser power
|
500-2000W
|
|
Working abutment
|
2000 x 2000 mm （ Fixed type）
|
|
Axis1
|
160˚
|
|
Axis2
|
147.5˚/-130˚
|
|
Axis3
|
145˚
|
|
Axis4
|
270˚
|
|
Axis5
|
140˚/-115˚
|
|
Axis6
|
360˚
|
|
Reposition accuracy
|
0.05mm（VDI/DGQ 3441）
|
|
Total power
|
11kw
|
|
Overall dimension
|
7000x4000x3200mm
|
