AC14 High Holding Power Anchor

Category:Marine Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Request a Quote

Get a factory quote now, we can supply according to your requirement.

China AC14 High Holding Power Anchor Introduction:

Specifications

Brand Name

HS Code

7316000000

Unit

PCE(Pieces)

Customed Made

MOQ

Delivery Period

30 days

Description

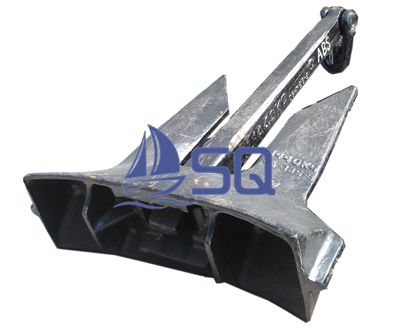

AC-14 HIGH HOLDING POWER(HHP) ANCHOR

1.  Surface: black bitumen paint
2.  Using range:freighter,warship,passenger ships,boat,etc.
3  Material: High tensile casting steel
3. Standard weight: 56kgs~100000kgs
4. Certification: All IACS cert as ABS, BV, CCS, DNV, NK, GL, LR, RMRS, KR, RINA etc.

5. Type:not balanced and fully balanced

Specification

NOMINAL WEIGHT(KG)	SIZE (mm)						NOMINAL WEIGHT(KG)	SIZE (mm)
NOMINAL WEIGHT(KG)	A	L	H	C	Cl	B	NOMINAL WEIGHT(KG)	A	L	II	C	Cl	B
30	491	440	136	299	85	236	3240	2352	2110	652	1432	407	1130
45	590	529	164	359	99	283	3443	2400	2154	665	1462	415	1154
75	677	605	188	411	122	324	3668	2451	2200	680	1493	424	1178
94	718	643	199	437	130	344	3938	2510	2252	696	1529	434	1207
113	745	666	207	452	135	357	4208	2549	2303	711	1563	444	1234
135	821	737	228	500	143	394	4500	2624	2355	727	1598	454	1261
180	904	811	251	550	157	434	4838	2688	2412	745	1637	465	1292
225	974	874	270	593	169	468	5175	2749	2467	762	1674	476	1321
270	1035	929	287	630	180	497	5513	2808	2520	778	1710	486	1350
315	1090	978	302	663	189	524	5850	2864	2570	794	1744	496	1376
360	1139	1022	316	694	198	547	6225	2923	2623	810	1780	506	1405
428	1194	1071	331	727	206	574	6525	2970	2665	823	1808	514	1428
495	1251	1122	347	762	216	602	6975	3042	2730	843	1853	527	1462
585	1360	1221	378	828	236	654	7425	3100	2782	859	1888	537	1490
675	1398	1254	387	851	242	672	7875	3162	2837	876	1925	547	1520
765	1483	1304	404	885	264	698	8325	3221	2890	893	1961	558	1548
855	1520	1363	423	925	267	729	8775	3278	2942	909	1996	567	1576
968	1590	1425	440	968	275	764	9225	3333	2991	924	2030	577	1602
1080	1631	1462	451	993	282	784	9675	3386	3039	939	2062	586	1628
1193	1660	1490	465	1011	287	798	10125	3438	3085	953	2094	595	1653
1305	1761	1580	488	1072	305	846	10575	3488	3130	967	2124	604	1677
1440	1795	1610	497	1093	311	862	11025	3537	3174	981	2154	612	1700
1575	1855	1665	514	1130	321	892	11550	3592	3224	996	2188	622	1727
1710	1900	1705	526	1157	329	913	12075	3646	3272	1011	2220	631	1753
1845	1940	1741	538	1182	336	933	12675	3705	3325	1027	2256	641	1781
1980	1977	1774	548	1203	342	950	13350	3770	3383	1045	2296	653	1812
2138	2016	1809	559	1227	349	969	14100	3839	3445	1061	2338	665	1846
2295	2089	1874	579	1272	362	1004	15000	3919	3517	1086	2387	678	1884
2475	2150	1929	596	1309	373	1033	16125	4015	3603	1113	2445	695	1930
2655	2201	1975	610	1340	382	1057	17250	4106	3685	1138	2501	711	1974
2835	2253	2022	624	1372	390	1083	18375	4194	3763	1163	2554	726	2016
3038	2302	2066	638	1402	399	1107	19500	4278	3839	1186	2605	740	2056

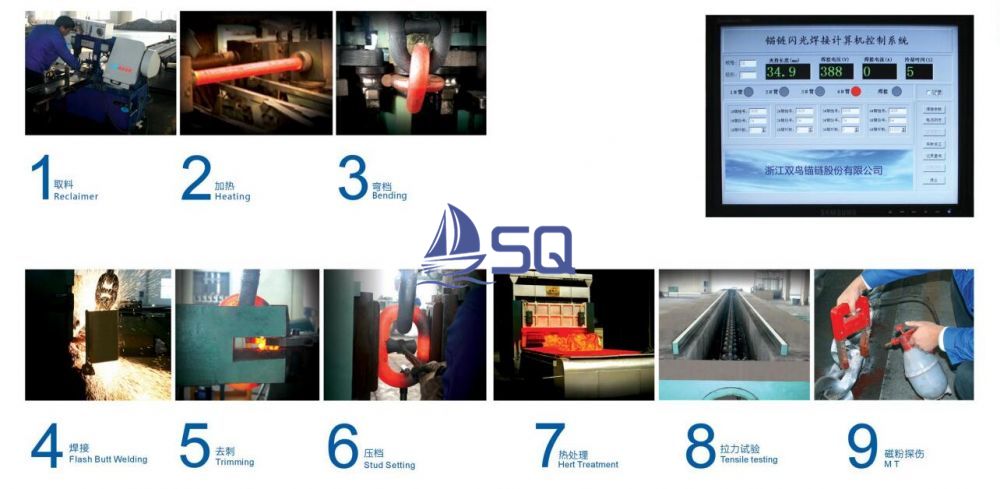

Process

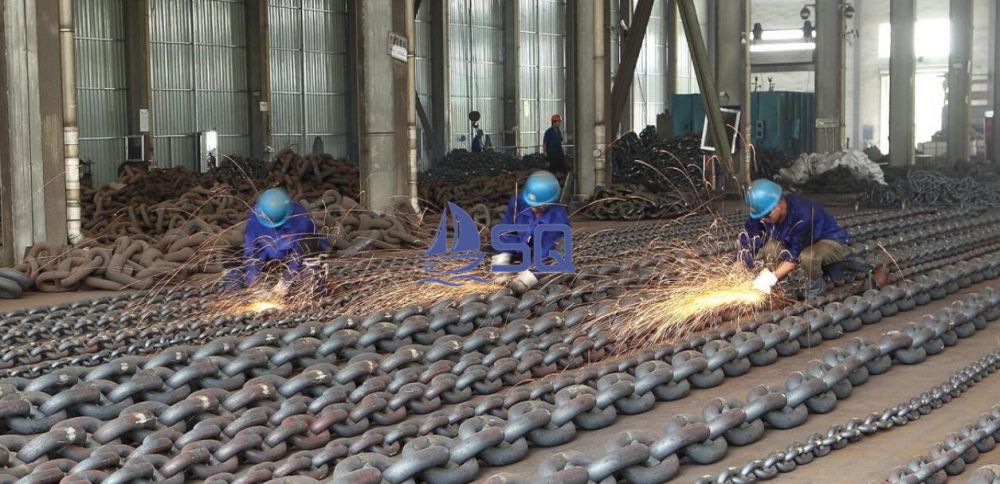

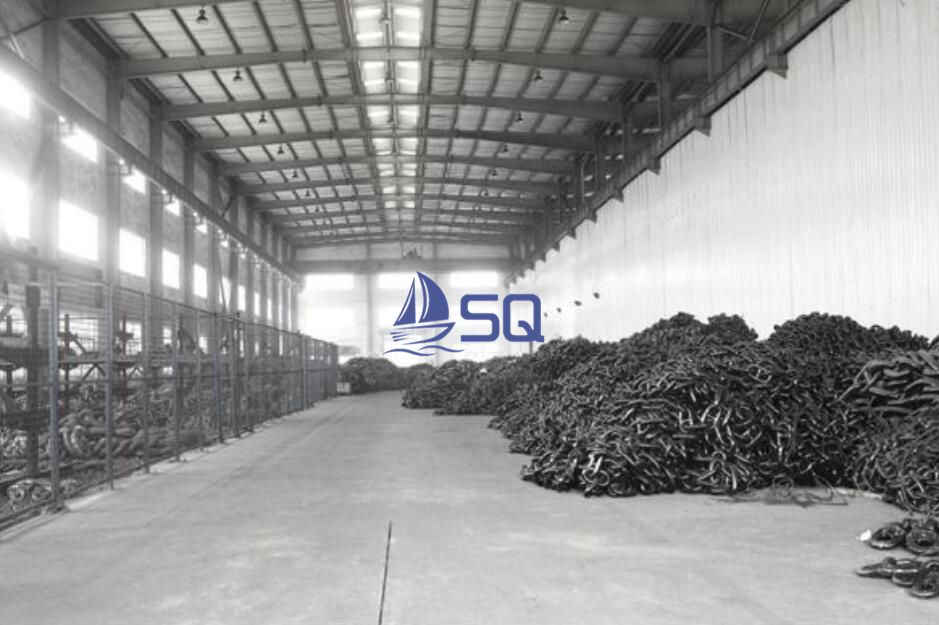

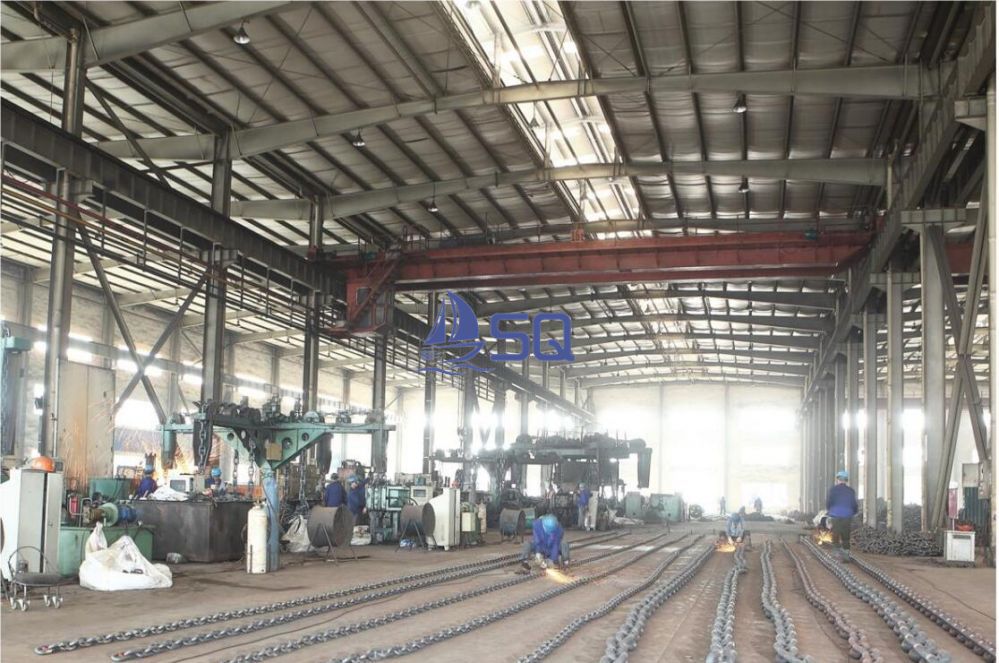

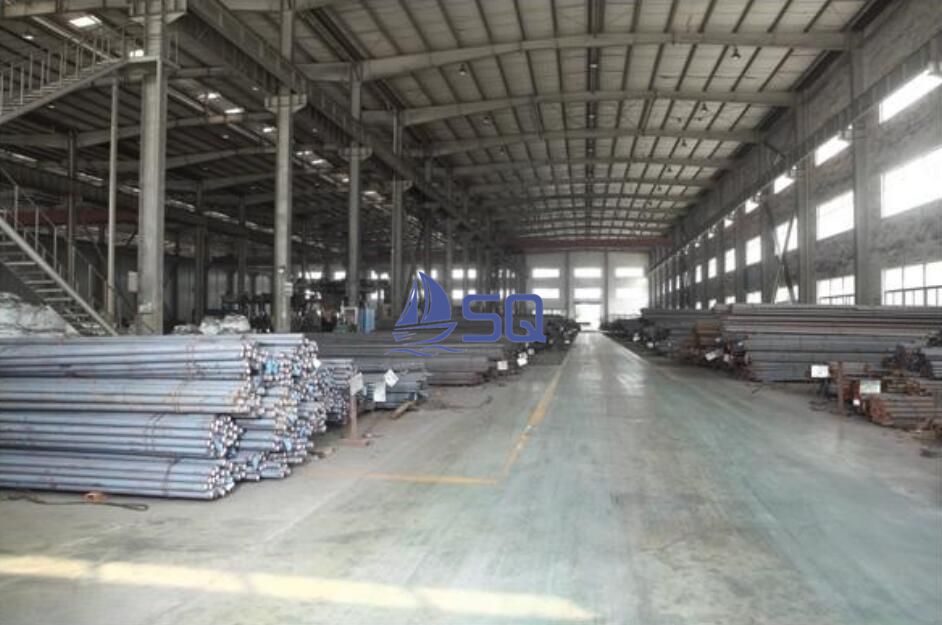

Workhouse

Service

Welcome to consult China AC14 High Holding Power Anchor suppliers. We have more than 10 years of foreign trade supply experience and have provided high-quality shipping equipment to dozens of countries around the world. We provide you with high-quality services and preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
