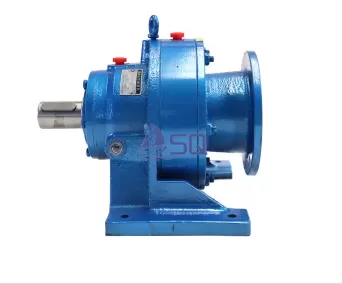

BLD BL Cycloid Drive Gear Reducer

Category:Engine Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Get a factory quote now, we can supply according to your requirement.

China BLD BL Cycloid Drive Gear Reducer Introduction:

Specifications

Brand Name

Shanqing

HS Code

Unit

UNT(Units)

Customed Made

MOQ

Delivery Period

5 days

Description

BLD BL Cycloid Drive Gear Reducer

The key to Cycloidial Drive matchless performance and reliability is that 67% of the reduction components are in contact at all times, compared to helical gear and planetary gear designs that use only limited tooth contact. Unlike geared designs, the SPEED's reduction components operate in compression rather than shear, which results to withstand shock loads exceeding ratings of 500%, provide exceptional performance, reliability and long life in most severe applications

Parameters Table

BW、BWD、XW、XWD type(Single stage) shape and installation dimensions

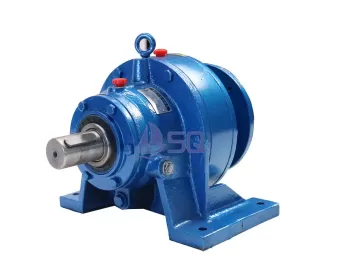

Appearance of single-stage horizontal cycloid pinwheel planetary reducer

NO.

Dimensions

Installation size

Shaft end size

weight

BWD

（≈）

BWD

BW、BWD10-19 No.

B10	120	185	214	165	190	168	100	93	15	90	150		M8	35	4	11	8	33	30	35	5	17	15	22	15	BW weight + motor weight
11	160	280	263	194	250	200	120	125	15	110	240		M8	55	4	13	10	38	35	56	6	20. 5	18	35	22
12	200	320	320	246	296	240	140	144	20	150	280		M8	60	4	13	14	48.5	45	68	6	24. 5	22	40	40
13	250	390	390	294	355	300	160	159	25	200	340		M12	75	4	17	16	59	55	80	8	33	30	55	73
14	380	400	465	356	430	340	200	153	25	320	340	65	M12	80	4	22	20	74. 5	70	100	10	38	35	62	120
15	440	470	544	431	513	420	240	155	32	380	420	100	M16	80	4	22	25	95	90	116	14	48. 5	45	70	185
16	520	560	668	528	605	500	280	199	35	440	500	150	M20	90	4	26	28	106	100	139	14	53. 5	50	80	380
17	600	690	791	594	706	616	325	230	40	500	630		M24	105	6	26	28	116	110	150	16	59	55	90	580
18	810	880	1065	814	880	740	420	324	50	660	800		M30	160	6	32	32	137	130	202	20	74.5	70	120	1200
19	1040	1160	1462	1151	1160	1000	540	485	60	840	1050		M42	200	6	45	45	190	180	330	25	95	90	150	2500

XW、XWD2—12No.

X2	120	210	209	161	190	168	100	101	15	90	180	M8	45	4	12	8	28	25	34	5	17	15	22	15	BW weight + motor weight
3	150	290	263	194	270	200	140	151	20	100	250	M8	55	4	16	10	38	35	56	6	20. 5	18	35	30
4	195	330	320	246	316	240	150	169	22	145	290	M8	65	4	16	14	48.5	45	72	6	24. 5	22	40	43
5	260	420	426	330	356	300	160	206	25	150	370	M12	75	4	16	16	59	55	91	8	33	30	55	85
6	335	430	484	375	425	340	200	125	30	275	380	M12	75	4	22	18	69	65	89	10	38	35	62	125
7	380	470	512	404	484	420	220	145	30	320	420	M16	95	4	22	22	85	80	109	12	43	40	65	190
8	440	530	583	470	514	420	250	155	35	380	480	M16	120	4	22	25	95	90	120	14	48. 5	45	70	240
9	560	620	723	571	614	500	290	186	40	480	560	M20	120	4	26	28	106	100	141	14	53.5	50	80	390
10	600	690	791	594	706	616	325	230	40	500	630	M24	105	6	26	28	116	110	150	16	59	55	90	580
11	810	880	1065	814	880	740	420	324	50	660	800	M30	160	6	32	32	137	130	202	20	74. 5	70	120	1200
12	1040	1160	1462	1151	1160	1000	540	485	60	840	1050	M42	200	6	45	45	190	180	330	25	95	90	150	2500

Product Details

Wide Capacity Range

Choose the size and modifications that best fit your needs. A wide range of HP ratings up to 200HP, reduction ratios up to 658,503:1, and dozens of application and industry specific modifications, ensure your operation avoids unexpected downtime.

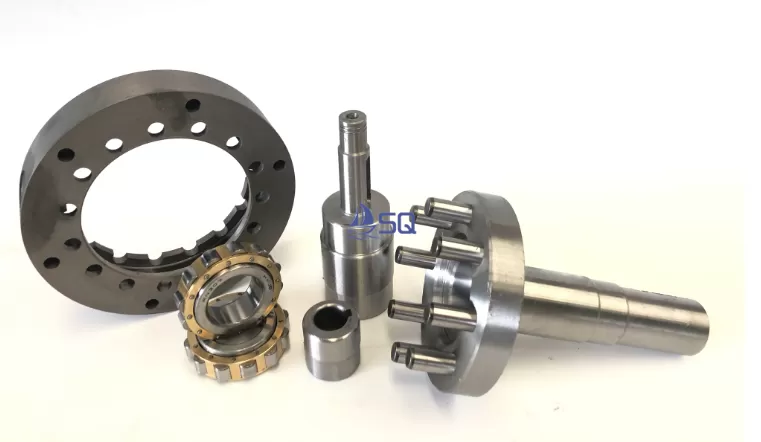

Running smoothly

The cycloidal reducer design allows the reduction components to operate in a smooth, rolling manner, preventing tooth breakage typical in conventional gearing, and resulting in a durable product with a long life.

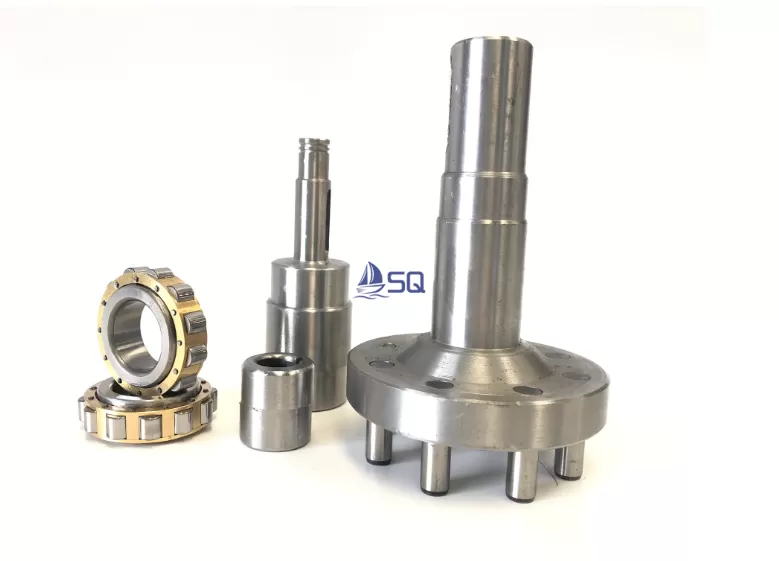

High Efficiency

Rolling Contact - All major torque transmitting components roll; they do not slide. Rolling motion contributes to minimal friction and high efficiency. Single stage efficiency approaches 93%, and double stage efficiency approaches 86%

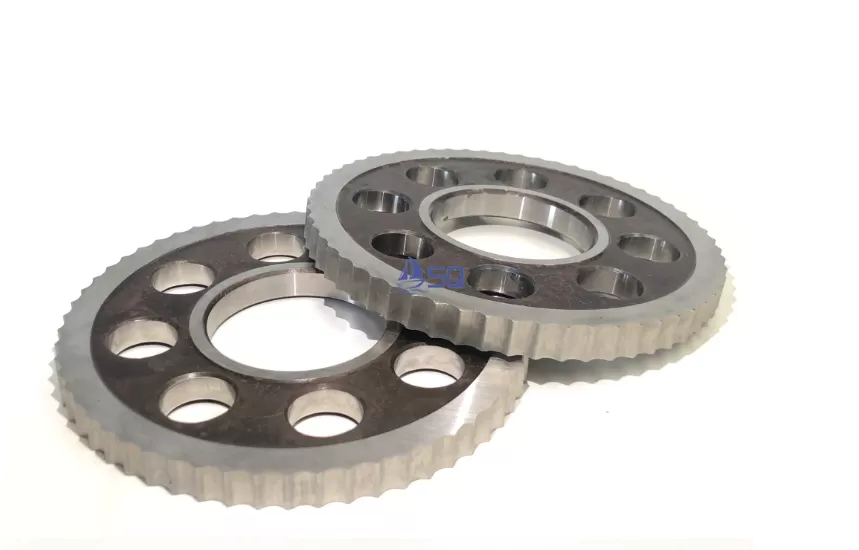

Durable and Long Service Life

The gear tooth profile of Cycloid Drive enables the sharing of the load by a number of teeth, thus not susceptible to tooth breakage. At least 66% of ring gear rollers and cycloidial disc lobes share the shock load under compression. In addition, major torque transmission Components inside ，Cycloid Drive are made of high carbon chromium bearing grade steel hardened to Rockwell Hardness of HRC 61~63 and with precision grinding. The end result is that Varitron Cycloid Drive are capable of withstanding intermittent shock load up to 500% of its catalog torque rating.

Service

Welcome to consult China BLD BL Cycloid Drive Gear Reducer suppliers. We have more than 10 years of foreign trade supply experience and have provided high-quality shipping equipment to dozens of countries around the world. We provide you with high-quality services and preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
