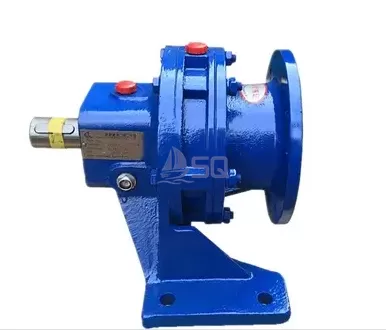

BWD | XWD Series Cycloidal Gear Reducer

Category:Engine Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Get a factory quote now, we can supply according to your requirement.

China BWD | XWD Series Cycloidal Gear Reducer Introduction:

Specifications

Brand Name

Shanqing

HS Code

Unit

Customed Made

MOQ

Delivery Period

5 days

Description

BWD/XWD Cycloidal Reducer

Cycloidal pin gear reducer is a speed reducing construction with advance design,novel structure adopting the principle of planet driving and the falling -in of cycloidal pin gear. This reducer can be widely applied to the speed reducing structure of various driving machineries, such as; lift, transportation,mine, metallurgy, petrol chemical,texitile,prention, light industry, pharmacy,food, forage, food,machinery,tec.

Divided into horizontal-type,verlical-type,double-shaft and direct-connection type according to their construction

Parameters Table

Single-stage horizontal cycloid pinwheel planetary reducer

No.

External Dimensions

Mounting Dimensions

Shaft end dimensions

Weight

BWD(约)

BWD

BW、BWD10-19

B10	120	185	214	165	190	168	附表	100	93	15	90	150		M8	35	4	11	8	33	30	35	5	17	15	22	15	BW+ motor weight
11	160	280	263	194	250	200		120	125	15	110	240		M8	55	4	13	10	38	35	56	6	20.5	18	35	22
12	200	320	320	246	296	240		140	144	20	150	280		M8	60	4	13	14	48.5	45	68	6	24.5	22	40	40
13	250	390	390	294	355	300		160	159	25	200	340		M12	75	4	17	16	59	55	80	8	33	30	55	73
14	380	400	465	356	430	340		200	153	25	320	340	65	M12	80	4	22	20	74.5	70	100	10	38	35	62	120
15	440	470	544	431	513	420		240	155	32	380	420	100	M16	80	4	22	25	95	90	116	14	48.5	45	70	185
16	520	560	668	528	605	500		280	199	35	440	500	150	M20	90	4	26	28	106	100	139	14	53.5	50	80	380
17	600	690	791	594	706	616		325	230	40	500	630		M24	105	6	26	28	116	110	150	16	59	55	90	580
18	810	880	1065	814	880	740		420	324	50	660	800		M30	160	6	32	32	137	130	202	20	74.5	70	120	1200
19	1040	1160	1462	1151	1160	1000		540	485	60	840	1050		M42	200	6	45	45	190	180	330	25	95	90	150	2500

XW、XWD2-12

X2	120	210	209	161	190	168	附表	100	101	15	90	180	M8	45	4	12	8	28	25	34	5	17	15	22	15	XW+ motor weight
3	150	290	263	194	270	200		140	151	20	100	250	M8	55	4	16	10	38	35	56	6	20.5	18	35	30
4	195	330	320	246	316	240		150	169	22	145	290	M8	65	4	16	14	48.5	45	72	6	24.5	22	40	43
5	260	420	426	330	356	300		160	206	25	150	370	M12	75	4	16	16	59	55	91	8	33	30	55	85
6	335	430	484	375	425	340		200	125	30	275	380	M12	75	4	22	18	69	65	89	10	38	35	62	125
7	380	470	512	404	484	420		220	145	30	320	420	M16	95	4	22	22	85	80	109	12	43	40	65	190
8	440	530	583	470	514	420		250	155	35	380	480	M16	120	4	22	25	95	90	120	14	48.5	45	70	240
9	560	620	723	571	614	500		290	186	40	480	560	M20	120	4	26	28	106	100	141	14	53.5	50	80	390
10	600	690	791	594	706	616		325	230	40	500	630	M24	105	6	26	28	116	110	150	16	59	55	90	580
11	810	880	1065	814	880	740		420	324	50	660	800	M30	160	6	32	32	137	130	202	20	74.5	70	120	1200
12	1040	1160	1462	1151	1160	1000		540	485	60	840	1050	M42	200	6	45	45	190	180	330	25	95	90	150	2500

Characteristics:

1. High Speed Ratio And Efficiency Single stage transmission can reach to 1:87 of speed-down ratio and the efficiency is more than 90%. If use multi-speed drive the speed-down ratio is bigger.

2. Compact Structure And Small Size Being adapted epicyclic transmission principle,the input & output shaft are at same axis center,it is compact.

3. Smooth And Stable Run And Low Noise The cycloidal pinwheel has more meshed teeth, the overlapping coefficient id big and the machine part is stable, the vibration and noise is limited at the minimum content.

4. Reliable In Operation And Long Life Because the main parts are made of bearing steel through quenching treatment, it got high strength. Meanwhile the transmission contact of part adapts rolling friction, so it is durable and long life.

5. Strong Overload Capacity, Resistant To Impact, Small Moment Of Inertia. It is used for the occasion of frequently starting and positive and negative rotary.
