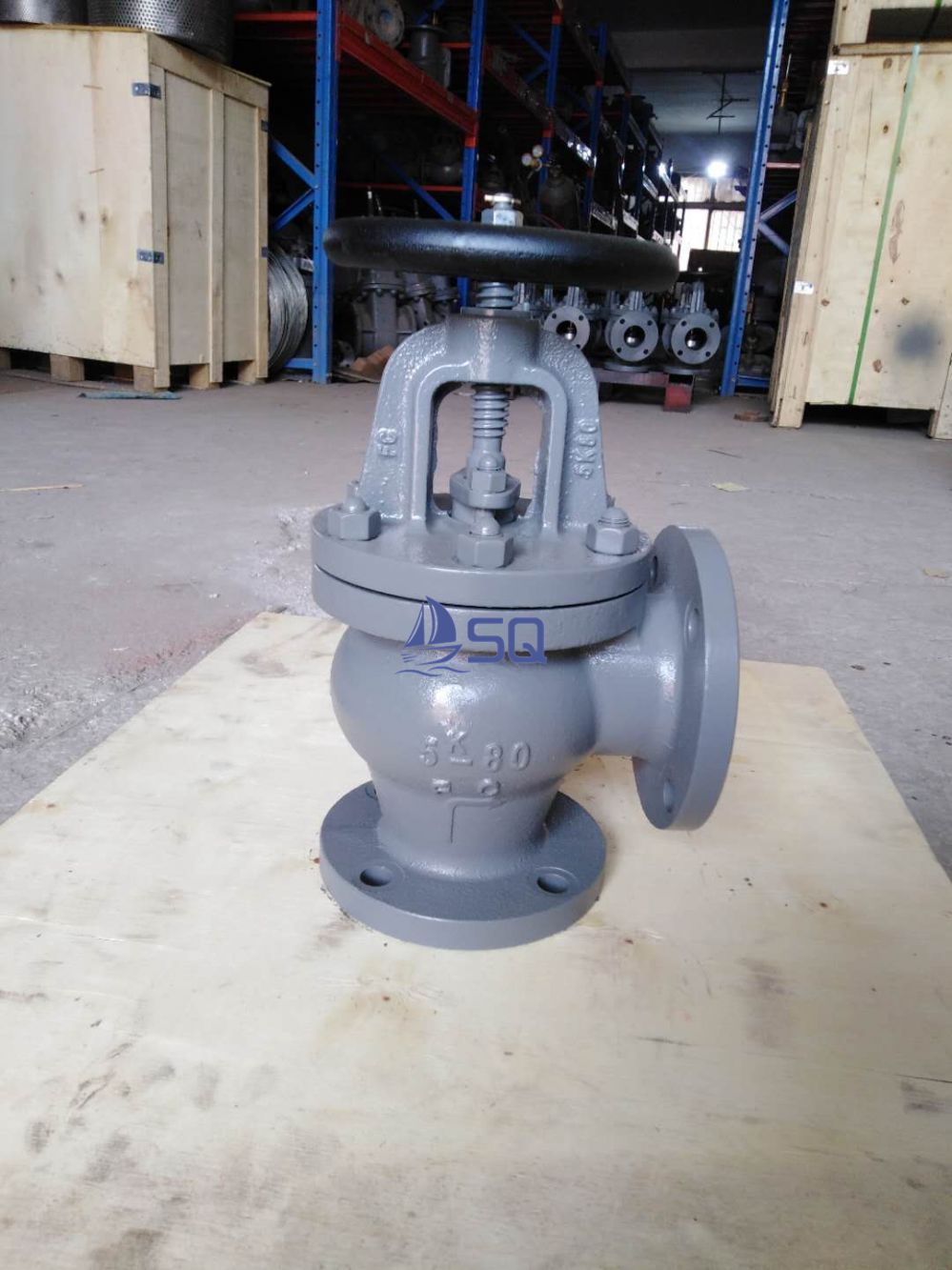

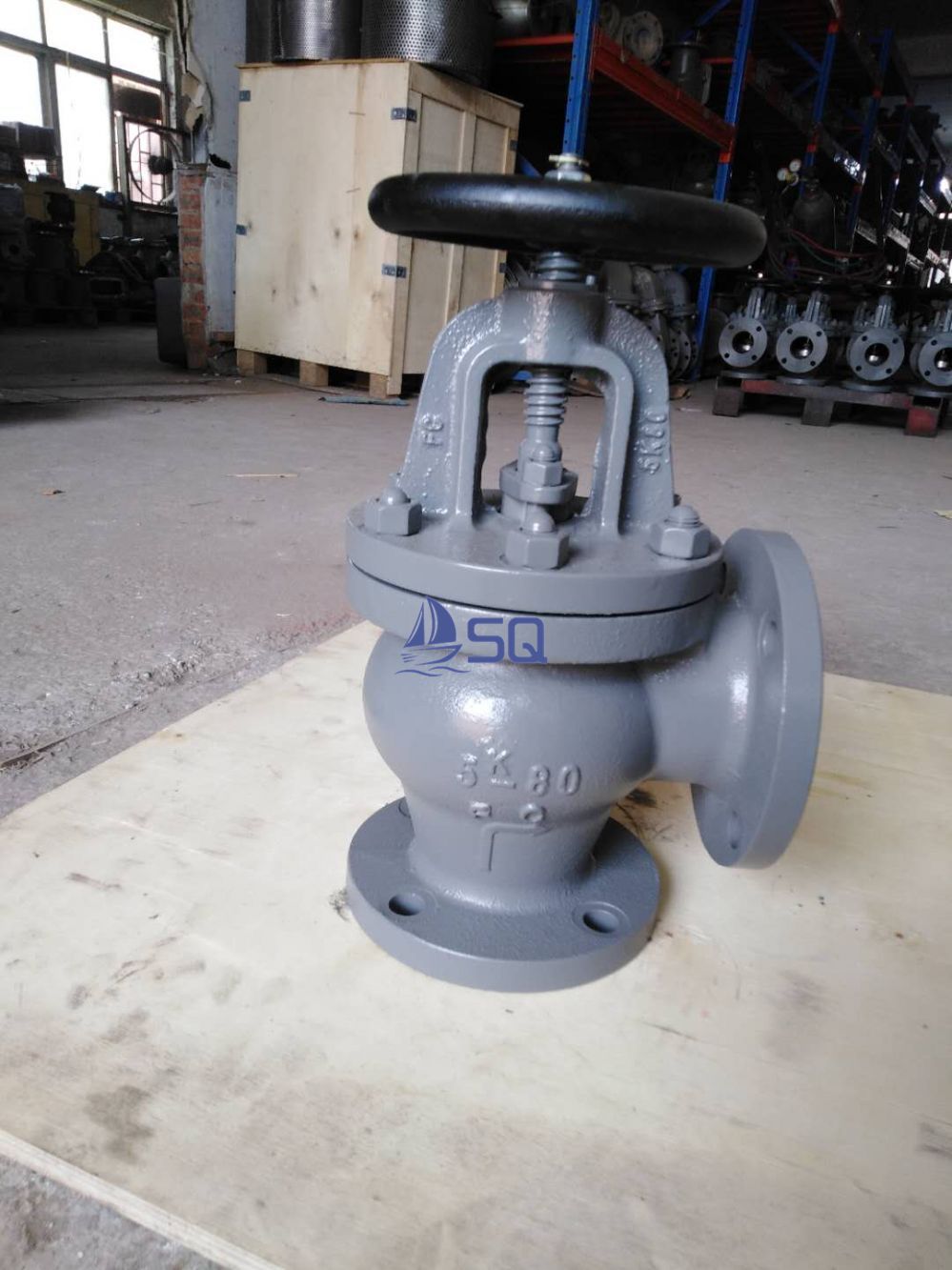

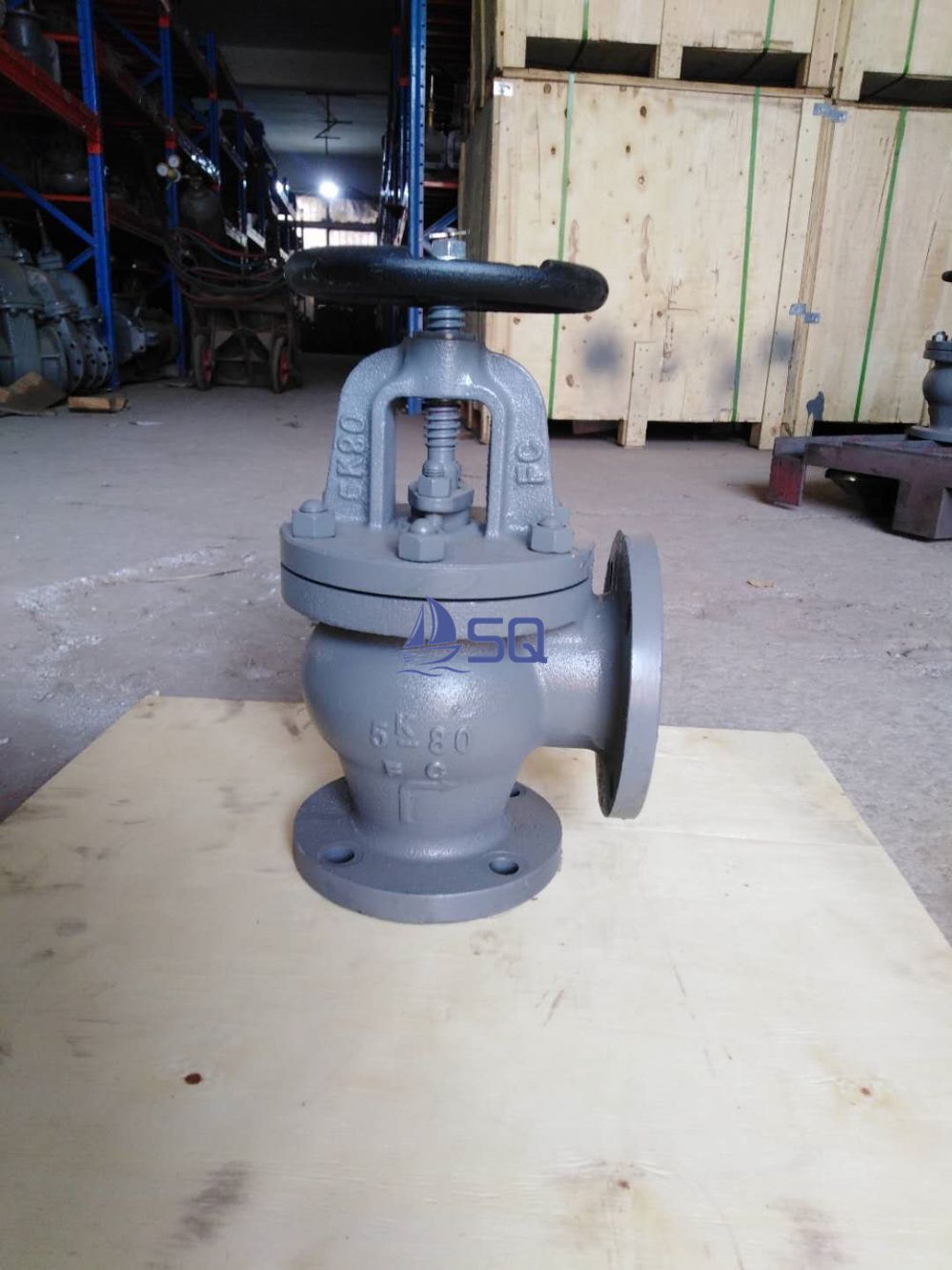

Cast Iron Angle Valve

Category:Engine Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Request a Quote

Get a factory quote now, we can supply according to your requirement.

China Cast Iron Angle Valve Introduction:

Specifications

Brand Name

HS Code

Unit

PCE(Pieces)

Customed Made

MOQ

Delivery Period

60 days

Description

F7306 Cast Iron 5K Angle Valves

F7308 Cast Iron 10K Angle Valves

JIS F7310 Cast Iron 16K Angle Valves

MATERIAL TABLE
NAME OF PART		MATERIAL
	CLASS B		CLASS S
BODY		SC450
BONNET		SC450
DISC	BC6		SUS420
VALVE SEAT	BC6		SUS420
STEM	C377IBD OR BE SUS420
GLAND PACKING		BC6
GASKET	NON-ASBESTOS
HANDWHEEL		FC200

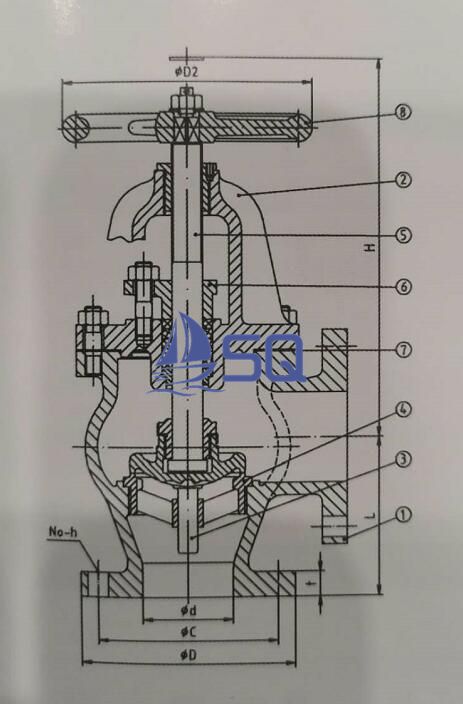

SIZE TABLE(7305)
DN	d	L	D	C	NO.	h	t	H	D2

50	50	100	130	105	4	15	16	240	160
65	65	115	155	130	4	15	18	255	180
80	80	130	180	145	4	19	18	265	180
100	100	150	200	165	8	19	20	310	224
125	125	170	235	200	8	19	20	330	250
150	150	190	265	230	8	19	22	380	280
200	200	220	320	280	8	23	24	450	315
250	250	275	385	345	12	23	26	540	355
300	300	310	430	390	12	23	28	610	400
350	335	360	480	435	12	25	30	690	500
400	380	395	540	495	16	25	30	770	560

SIZE TABLE(7309)
DN	d	L	D	C	NO.	h	t	H	D2

50	50	120	155	120	4	19	20	255	160
65	65	130	175	140	4	19	22	270	200
80	80	140	185	150	8	19	22	275	200
100	100	160	210	175	8	19	24	315	250
125	125	180	250	210	8	23	24	360	280
150	150	205	280	240	8	23	26	405	315
200	200	230	330	290	12	23	26	475	355
250	250	290	400	355	12	25	30	570	450
300	300	320	445	400	16	25	32	645	500
350	335	360	490	445	16	25	34	710	560
400	380	420	560	510	16	27	36	790	630

SIZE TABLE(7309)
DN	d	L	D	C	NO.	h	t	H	D2

50	50	120	155	120	8	19	20	255	160
65	65	130	175	140	8	19	22	270	200
80	80	150	200	160	8	23	24	295	224
100	100	170	225	185	8	23	26	330	250
125	125	200	270	225	8	25	26	390	315
150	150	225	305	260	12	25	28	435	355
200	200	250	350	305	12	25	30	540	450

The description/sizes may be different with goods, please check with us when order.
