F7305 Cast Iron 5K Globe Valves
F7307 Cast Iron 10K Globe Valves
F7309 Cast Iron 16K Globe Valves
| MATERIAL TABLE | |||
| NAME OF PART | MATERIAL | ||
| CLASS B | CLASS S | ||
| BODY | SC450 | ||
| BONNET | SC450 | ||
| DISC | BC6 | SUS420 | |
| VALVE SEAT | BC6 | SUS420 | |
| STEM | C377IBD OR BE SUS420 | ||
| GLAND PACKING | BC6 | ||
| GASKET | NON-ASBESTOS | ||
| HANDWHEEL | FC200 | ||

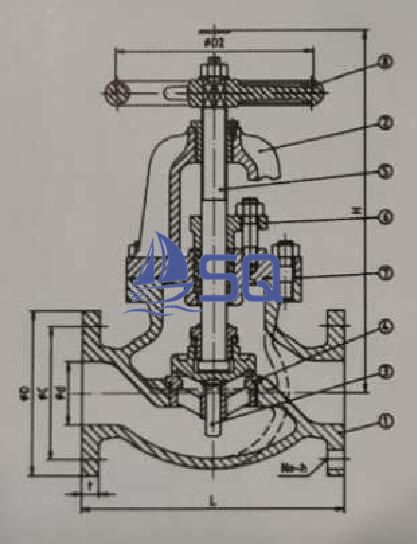

| SIZE TABLE(7305) | |||||||||
| DN | d | L | D | C | NO. | h | t | H | D2 |
| 50 | 50 | 210 | 130 | 105 | 4 | 15 | 16 | 270 | 160 |
| 65 | 65 | 250 | 155 | 130 | 4 | 15 | 18 | 300 | 180 |
| 80 | 80 | 280 | 180 | 145 | 4 | 19 | 18 | 310 | 180 |
| 100 | 100 | 340 | 200 | 165 | 8 | 19 | 20 | 360 | 224 |
| 125 | 125 | 410 | 235 | 200 | 8 | 19 | 20 | 390 | 250 |
| 150 | 150 | 480 | 265 | 230 | 8 | 19 | 22 | 445 | 280 |
| 200 | 200 | 570 | 320 | 280 | 8 | 23 | 24 | 530 | 315 |
| 250 | 250 | 740 | 385 | 345 | 12 | 23 | 26 | 650 | 355 |
| 300 | 300 | 840 | 430 | 390 | 12 | 23 | 28 | 740 | 400 |
| 350 | 335 | 940 | 480 | 435 | 12 | 25 | 30 | 840 | 500 |
| 400 | 380 | 1050 | 540 | 495 | 16 | 25 | 30 | 940 | 600 |
| SIZE TABLE(7309) | |||||||||
| DN | d | L | D | C | NO. | h | t | H | D2 |
| 50 | 50 | 220 | 155 | 120 | 8 | 19 | 20 | 285 | 160 |
| 65 | 65 | 270 | 175 | 140 | 8 | 19 | 22 | 310 | 200 |
| 80 | 80 | 300 | 200 | 160 | 8 | 23 | 24 | 340 | 224 |
| 100 | 100 | 350 | 225 | 185 | 8 | 23 | 26 | 385 | 250 |
| 125 | 125 | 430 | 270 | 225 | 8 | 25 | 26 | 455 | 315 |
| 150 | 150 | 500 | 305 | 260 | 12 | 25 | 28 | 510 | 355 |
| 200 | 200 | 570 | 350 | 305 | 12 | 25 | 30 | 630 | 450 |
The description/sizes may be different with goods, please check with us when order.
