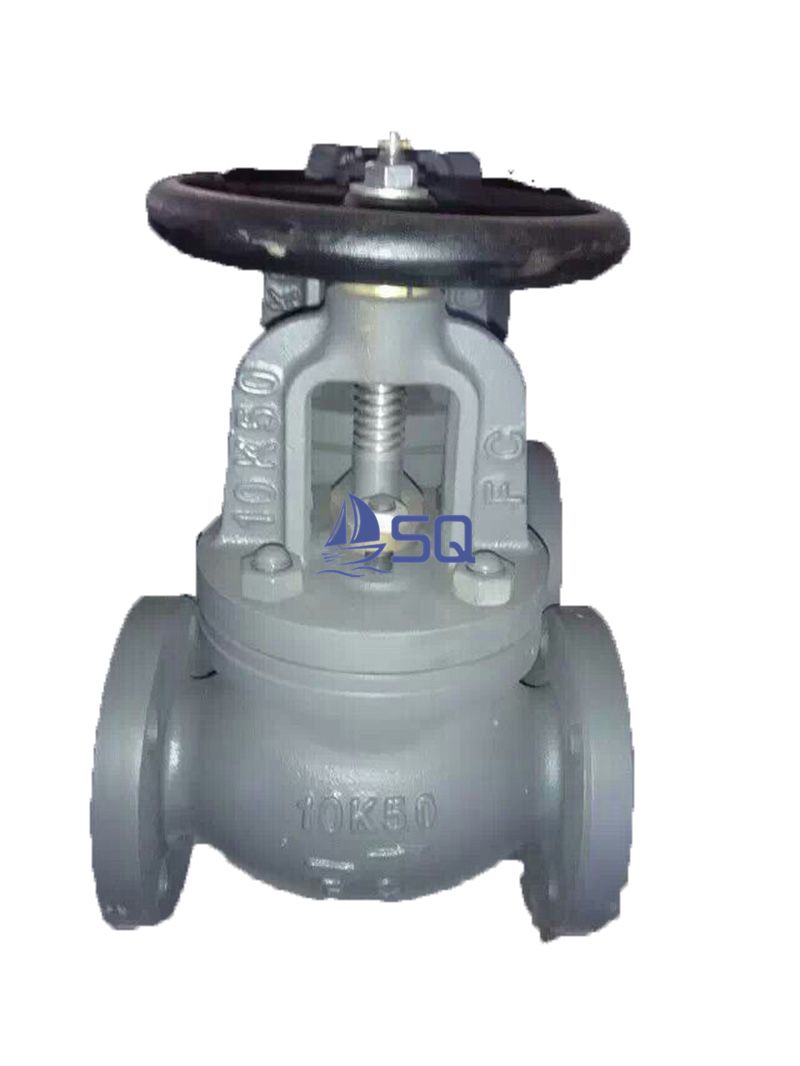

Cast Steel Check Globe Valves

Category:Engine Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Request a Quote

Get a factory quote now, we can supply according to your requirement.

China Cast Steel Check Globe Valves Introduction:

Specifications

Brand Name

HS Code

Unit

PCE(Pieces)

Customed Made

MOQ

Delivery Period

60 days

Description

JIS F7311C Cast Steel 5K Screw-down Check Globe Vavles

JIS F7471 Cast Steel 10K Screw-down Check Globe Vavles

JIS F7473 Cast Steel 15K Screw-down Check Globe Vavles

MATERIAL TABLE
NAME OF PART		MATERIAL
	CLASS B		CLASS S
BODY		SC450
BONNET		SC450
DISC	BC6		SUS420
VALVE SEAT	BC6		SUS420
STEM	C377IBD OR BE SUS420
GLAND PACKING		BC6
GASKET	NON-ASBESTOS
HANDWHEEL		FC200

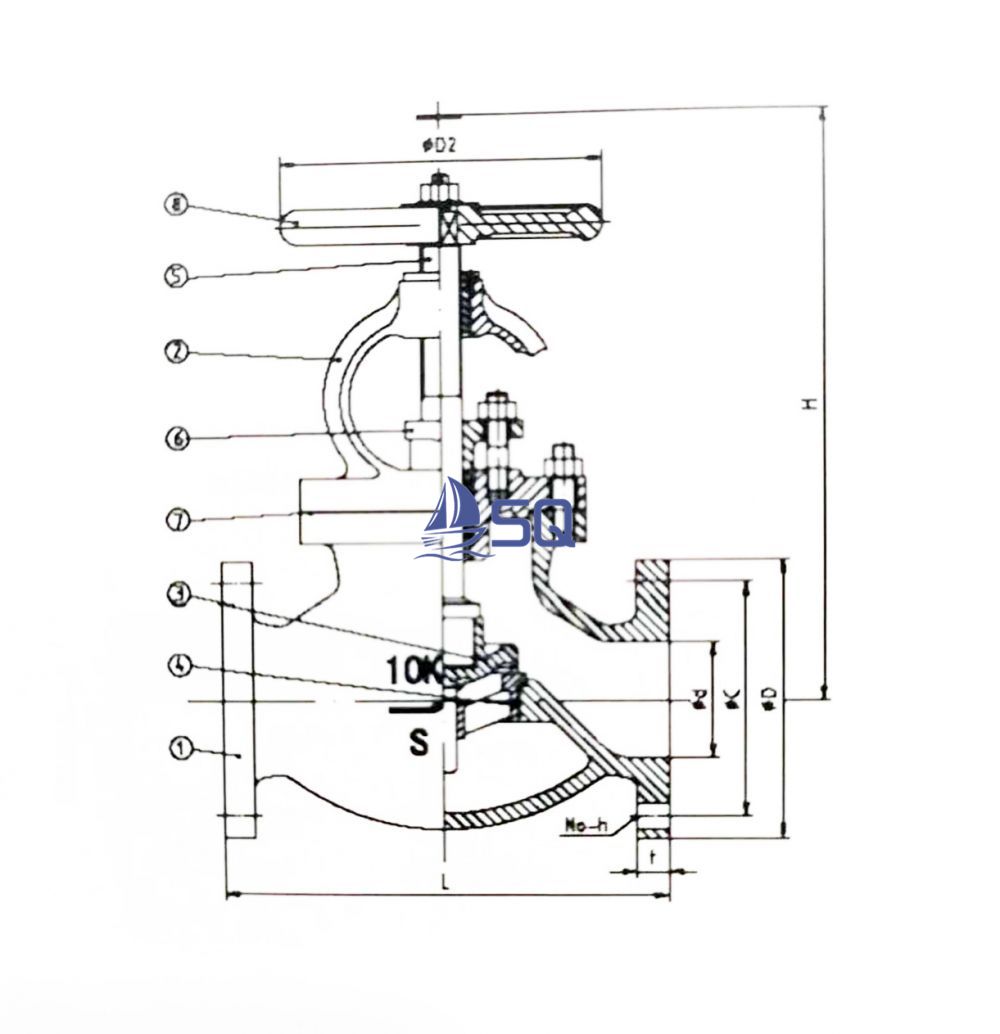

SIZE TABLE(7311C)
DN	d	L	D	C	NO.	h	t	H	D2

50	50	210	130	105	4	15	14	270	160
65	65	250	155	130	4	15	14	290	180
80	80	280	180	145	4	19	16	300	180
100	100	340	200	165	8	19	16	350	224
125	125	410	235	200	8	19	16	380	250
150	150	480	265	230	8	19	18	430	280
200	200	570	320	280	8	23	20	505	315
250	250	740	385	345	12	23	22	620	355
300	300	840	430	390	12	23	24	715	400

SIZE TABLE(7471)
DN	d	L	D	C	NO.	h	t	H	D2

50	50	210	155	120	4	19	16	265	160
65	65	250	175	140	4	19	18	295	200
80	80	280	185	150	8	19	18	300	200
100	100	340	210	170	8	19	18	345	250
125	125	410	250	210	8	23	20	405	280
150	150	480	280	240	8	23	22	455	315
200	200	570	330	290	12	23	22	545	355
250	250	740	400	355	12	25	24	645	400
300	300	840	445	400	16	25	24	735	450

SIZE TABLE(7473)
DN	d	L	D	C	NO.	h	t	H	D2

32	32	190	135	100	4	19	18	265	160
40	40	200	140	105	4	19	18	280	160
50	50	230	155	120	8	19	18	295	200
65	65	270	175	140	8	19	20	330	224
80	80	300	200	160	8	23	22	370	250
100	100	350	225	185	8	23	24	420	280
125	125	430	270	225	8	25	26	475	315
150	150	500	305	260	12	25	28	525	355
200	200	560	350	305	12	25	30	605	450
250	250	660	430	380	12	27	34	700	560
