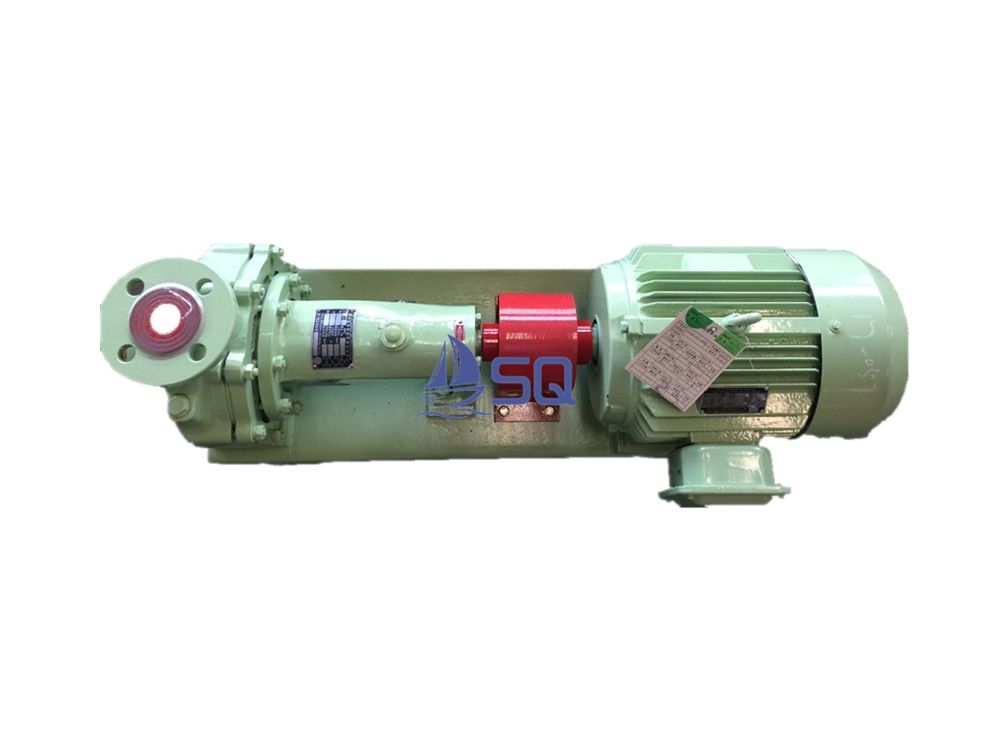

CIS Centrifugal pump

Category:Engine Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Request a Quote

Get a factory quote now, we can supply according to your requirement.

China CIS Centrifugal pump Introduction:

Specifications

Brand Name

HS Code

Unit

PCE(Pieces)

Customed Made

MOQ

Delivery Period

20 days

Description

General description:

CIS pump is a kind of axial suction centrifugal pump with single stage and suction. It is used to deliver clear water and physical or chemical liquid similar to clear water below 80C with the suction pressure being less than 0.3Mpa and the most highest working pressure being less than 1.3Mpa. It is applied to ship water supply and drain.

Technical Data:

Model	Standard	Capacity	Head	Speed	NPSHr		Weight
		m3/h	m	rpm	m	Motor	kg
50-32-125	O	7.5	22	2900	2	2.2	95
		12.5	20		2
		15	18.5		2.5
	B	9.7	17.5		2	1.5	90
		11.2	15.9		2
		13.4	14.7		2.25
	C	6.2	15.2		2	1.1	82
		10.4	13.8		2
		12.5	12.8		2
50-32-160	O	7.5	34.3	2900	2	3	113
		12.5	32		2
		15	29.6		2.5
	B	6.1	22.5		2	2.2	105
		10.1	21		2
		12.2	19.4		2
	C	5.4	17.9		2	1.5	102
		9	16.7		2
		10.8	15.4		2
50-32-200	O	7.5	52.5	2900	2	5.5	113
		12.5	50		2
		15	48		2.5
	B	7	45.3		2	4	131
		11.7	43.2		2
		14	42.5		2.15
50-32-250	O	7.5	82	2900	2	11	256
		12.5	80		2
		15	78.5		2.5
	B	6.5	61.2		2	7.5	205
		10.8	59.7		2
		13	58.6		2.05
65-50-125	O	15	21.8	2900	2	3	113
		25	20		2.5
		30	18.5		3
	B	13.2	16.8		2	2.2	103
		21.9	15.4		2.3
		26.3	14.2		2.6
65-50-160	O	15	35	2900	2	4	130
		25	32		2
		30	30		2.5
	B	13	26.4		2	3	117
		21.6	23.9		2
		25.9	22.4		2.05
65-40-200	O	15	53	2900	2	7.5	170
		25	50		2
		30	47		2.5
	B	13.5	42.9		2	5.5	164
		22.5	40.5		2
		27	38.1		2.1
65-40-250	O	15	82	2900	2	15	278
		25	80		2
		30	78		2.5
	B	13.1	62.7		2	11	270
		21.9	61.1		2
		26.2	59.6		2.07
65-40-315	O	15	127	2900	2.5	30	417
		25	125		2.5
		30	123		3
	A	14	111		2.5	22	365
		23.3	109		2.5
		28	107		2.75
	B	13.1	97.5		2.5	18.5	360
		21.9	96		2.5
		26.3	94.4		2.56
	C	12.1	83.2		2.5	15	298
		20.2	81.9		2.5
		24.3	80.6		2.5
80-65-125	O	30	22.5	2900	3	5.5	133
		50	20		3
		60	18		3.5
	B	26.1	17.1		3	4	124
		43.6	15.2		3
		52.3	13.7		3.1
	C	23.1	13.4		3	3	107
		38.6	11.9		3
		46.3	10.7		3
80-65-160	O	30	36	2900	2.5	7.5	155
		50	32		2.5
		60	29		3
	B	25.9	26.9		2.5	5.5	149
		43.2	23.9		2.5
		51.9	21.7		2.6
80-50-200	O	30	53	2900	2.5	15	230
		50	50		2.5
		60	47		3
	A	28	46		2.5	11	222
		46.9	43.4		2.5
		55.9	40.8		2.7
	C	23.5	32.6		2.5	7.5	160
		39.2	30.8		2.5
		47.1	28.9		2.5
80-50-250	O	30	53	2900	2.5	22	335
		50	50		2.5
		60	47		3
	B	26.6	38.6		2.5	18.5	305
		44.4	36.4		2.5
		53.3	34.2		2.6
	C	23.8	32.6		2.5	15	270
		39.6	30.8		2.5
		47.5	28.9		2.5
80-50-315	O	30	128	2900	2.5	37	430
		50	125		2.5
		60	123		3
	B	26.3	98.3		2.5	30	416
		43.8	96		2.5
		52.6	94.4		2.63
	C	24.3	83.9		2.5	22	363
		40.5	81.9		2.5
		48.6	80.6		2.5
100-80-125	O	60	24	2900	4	11	210
		100	20		4
		120	16.5		5
	B	53.5	19.1		4	7.5	157
		89.2	15.9		4.3
		107	13.1		4.65
	C	47.5	15		4	5.5	151
		79.1	12.5		4.2
		95	10.3		4.4
100-80-160	O	60	36	2900	3.5	15	250
		100	32		4
		120	28		5
	B	53.4	28.5		3.5	11	242
		89	25.4		3.77
		107	22.2		4.1
100-65-200	O	60	54	2900	3	22	335
		100	50		3.6
		120	47		4.8
	B	53.5	42.9		3	18.5	303
		89.1	39.7		3.35
		107	37.3		3.6
	C	50.5	38.3		3	15	270
		84.2	35.4		3.25
		101	33.3		3.6
100-65-250	O	60	87	2900	3.5	37	440
		100	80		3.8
		120	74.5		4.8
	B	52.2	65.9		3.5	30	425
		87.1	60.6		3.6
		104	56.5		4
100-65-315	O	60	133	2900	3	75	824
		100	125		3.6
		120	118		4.2
	A	56	119		3.6	55	683
		93.3	106		3.45
		112	103		3.95
	B	52.6	102		3	45	568
		87.6	96		3.32
		105	90.9		3.7
	C	48.6	87.2		3	37	496
		81	81.9		3.2
		97.1	77.3		3.5
125-100-200	O	120	57.5	2900	4.5	45	500
		200	50		4.5
		240	44.5		5
	A	111	49.3		4.5	37	435
		185	42.9		4.5
		222	38.2		4.7
	B	103	42.6		4.5	30	420
		172	37.1		4.5
		207	33		4.55
125-100-250	O	120	87	2900	3.8	75	817
		200	80		4.2
		240	71		5
	B	104	65.9		3.8	55	676
		174	60.6		3
		209	54.6		4.4
	C	96.9	56.8		3.8	45	560
		162	52.2		3.9
		194	47		4.15
125-100-315	O	120	133	2900	5	110	1290
		200	125		4.5
		240	120		4
	B	104	100		4.3	90	950
		174	94.8		4.5
		209	91		4
	C	96.5	85.7		4	75	845
		161	80.9		4.2
		193	77.7		4.43
125-100-400	O	60	52	1450	2.5	30	700
		100	50		2.5
		120	48.5		3
	A	56.4	45.99		2.5	22	530
		93.9	44.1		2.5
		113	42.8		2.75
	B	52.3	39.4		2.5	18.5	520
		87.1	37.9		2.5
		105	36.8		2.6
	C	48.6	34.1		2.5	15	490
		81	32.8		2.5
		97.2	31.8		2.5
150-125-200	O	120	14	1450	3	11	270
		200	12.5		3.2
		240	11		3.5
	B	103	10.3		3	7.5	230
		171	9.1		3.2
		205	8		3.5
150-125-250	O	120	23.2	1450	3	18.5	435
		200	20		3
		240	17		3.5
	A	112	20.2		3	15	400
		187	17.4		3
		224	14.8		3.2
	C	95.4	14.7		3	11	360
		159	12.6		3
		191	10.7		3
150-125-315	O	120	34	1450	2.5	30	605
		200	32		2.5
		240	29		3
	A	112	29.6		2.5	22	525
		186	27.8		2.5
		224	25.2		2.7
	B	104	25.6		2.5	18.5	517
		174	24.1		2.5
		208	21.8		2.55
	C	96	22.7		2.5	15	486
		160	20.6		2.5
		193	18.7		2.5
150-125-400	O	120	53	1450	2	45	640
		200	50		2.8
		240	46		3.5
	B	105	40.3		2	37	610
		174	38		2.5
		209	35		2.95
	C	96.5	34.3		2	30	600
		161	32.3		2.5
		193	29.7		2.95
200-150-250	O	240	22.6	1450	3	37	635
		400	20		3.5
		460	17.2		4
	A	223	19.5		3	30	625
		371	17.2		3.4
		427	14.8		3.7
	C	190	14.2		3	22	545
		317	12.8		3.2
		365	10.8		3.35
200-150-315	O	240	37	1450	3	55	825
		400	32		3.5
		460	28.5		4
	A	219	30.9		3	45	730
		366	26.7		3.35
		420	23.8		3.6
	B	198	25.2		3	37	690
		330	21.8		3.2
		380	19.4		3.4
	C	182	21.2		3	30	685
		303	18.3		3.1
		348	16.3		3.25
200-150-400	O	240	55	1450	3	90	1100
		400	50		3.9
		460	45		4.5
	A	224	47.7		3	75	1050
		373	43.4		3.6
		429	39.1		4.1
	C	194	36.1		3	55	865
		324	32.8		3.25
		373	29.5		3.6
200-200-200	O	240	14.5	1450	3.5	18.5	530
		400	12.5		4.2
		460	9.5		4.5
	A	223	12.5		3.5	15	500
