CJ14SB High Holding Power Anchor

Category:Marine Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Request a Quote

Get a factory quote now, we can supply according to your requirement.

China CJ14SB High Holding Power Anchor Introduction:

Specifications

Brand Name

HS Code

7316000000

Unit

KGM(Kilograms)

Customed Made

MOQ

Delivery Period

30 days

Description

1. Surface: black bitumen paint

2. Using range:freighter,warship,passenger ships,boat,etc.

3 Material: High tensile casting steel

3. Standard weight: 56kgs~100000kgs

4. Certification: All IACS cert as ABS, BV, CCS, DNV, NK, GL, LR, RMRS, KR, RINA etc.

5. Type:not balanced and fully balanced

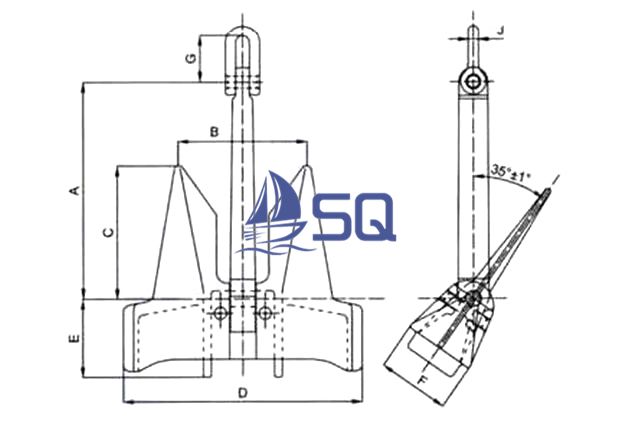

Specification

WEIGHT(KG)	SIZE (mm)						WEIGHT(KG)	SIZE (mm)
WEIGHT(KG)	A	B	C	D	E	F	WEIGHT(KG)	A	B	C	D	E	F
75	550	326	350	606	188	185	4500	2170	1295	1376	2405	741	735
100	607	380	385	704	207	200	4840	2225	1330	1410	2465	760	755
120	635	380	402	704	217	215	5175	2275	1358	1443	2520	777	770
180	742	442	470	822	254	252	5610	2339	1396	1483	2590	798	790
225	828	495	525	915	283	277	6000	2390	1426	1515	2646	816	810
250	828	495	525	915	283	280	6225	2420	1443	1534	2678	826	820
300	882	525	559	975	301	298	6525	2450	1462	1554	2712	836	830
340	918	548	582	1012	313	310	6975	2507	1496	1589	2775	855	848
360	918	548	582	1015	313	313	7350	2560	1526	1622	2832	873	866
430	990	590	628	1098	339	336	7875	2610	1558	1655	2890	891	884
495	1025	610	650	1135	350	348	8325	2665	1590	1689	2950	909	902
585	1102	658	699	1220	376	375	8775	2707	1614	1715	2996	924	916
675	1152	690	731	1278	394	390	9300	2765	1652	1754	3064	945	936
765	1205	718	764	1335	411	408	9675	2805	1674	1778	3104	957	948
855	1250	745	793	1385	427	420	10125	2850	1700	1806	3152	972	960
970	1300	775	826	1445	444	440	10575	2880	1720	1827	3192	984	976
1080	1350	805	855	1495	461	455	11025	2930	1750	1859	3247	1001	990
1200	1400	835	887	1545	478	470	11700	2987	1782	1894	3308	1019	1010
1305	1440	858	913	1595	492	485	12075	3010	1800	1906	3343	1027	1020
1440	1486	885	943	1645	507	505	12675	3065	1812	1945	3364	1047	1028
1575	1534	915	972	1695	523	518	13350	3132	1870	1986	3470	1069	1060
1710	1575	940	998	1745	538	532	14100	3178	1896	2015	3520	1084	1076
1845	1616	965	1025	1785	552	516	14700	3228	1924	2045	3570	1099	1090
1980	1650	985	1048	1830	564	560	15400	3272	1954	2075	3626	1117	1108
2100	1686	1005	1070	1865	575	570	16100	3320	1980	2110	3680	1132	1125
2295	1738	1035	1102	1920	593	588	16700	3350	2000	2126	3720	1144	1144
2475	1780	1062	1128	1970	607	602	17250	3380	2016	2142	3740	1151	1144
2655	1820	1085	1155	2018	621	615	17800	3440	2050	2180	3806	1173	1162
2835	1862	1109	1180	2057	635	625	18800	3500	2088	2220	3875	1193	1185
3040	1896	1130	1204	2100	646	640	20000	3573	2132	2265	3956	1220	1210
3550	2030	1198	1287	2225	693	680	25000	3965	2360	2515	4309	1352	1295
3940	2080	1240	1318	2300	709	705	30000	4358	2588	2765	4663	1484	1380
