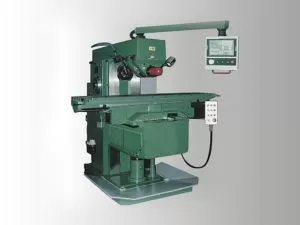

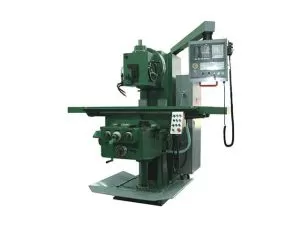

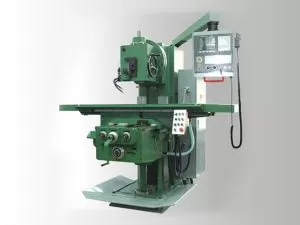

Thismilling machine is suitable for milling various parts with cylindrical, disc milling cutter, angle
milling cutter, forming milling cutter and end milling cutter. This milling machine can process plane, inclined
plane, groove, hole, gear, etc. If the universal milling head is used, the machining range of the machine tool can
be expanded when the original worktable, indexing head and other milling machine accessories are used. The
worktable can rotate 45 º to the left and right respectively. When the worktable rotates a certain angle around its
vertical center and is equipped with a dividing head, the spiral surface can be milled.
|
Specification |
Model: 5032 |
|
Table size(mm) |
320x1320mm |
|
Max.Load(KGS) |
200kgs |
|
Numbers, width, distance between T-slot |
3-18x70 |
|
Max.vertical angle of table |
±45° |
|
Stroke X/Y/Z |
670/250/320 mm |
|
Spindle motor power |
7.5 kw |
|
Spindle Taper |
ISO50xXT50 |
|
Spindle speed range |
30-1500 |
|
Spindle speed step |
18 |
|
Spindle nose to table surface |
80-400mm |
|
Feed speed (X/Y/Z) |
5-1000mm/min |
|
Rapid feed speed (X/Y/Z) |
5000/5000/2000mm/min |
|
Precision positioning |
0.020mm |
|
Repeat Precision positioning |
0.015 |
|
Overall dimension(LxWxH) |
2600/1825/2250mm |
|
Net weight |
2700kgs |
