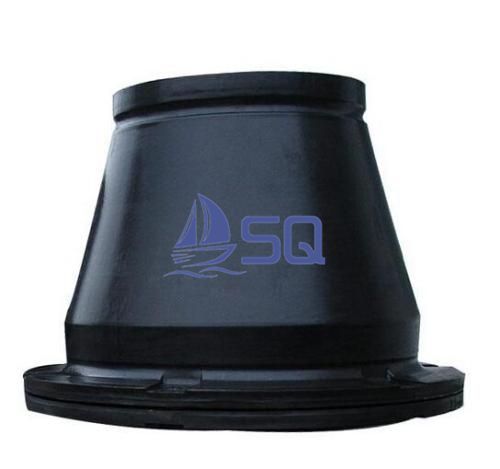

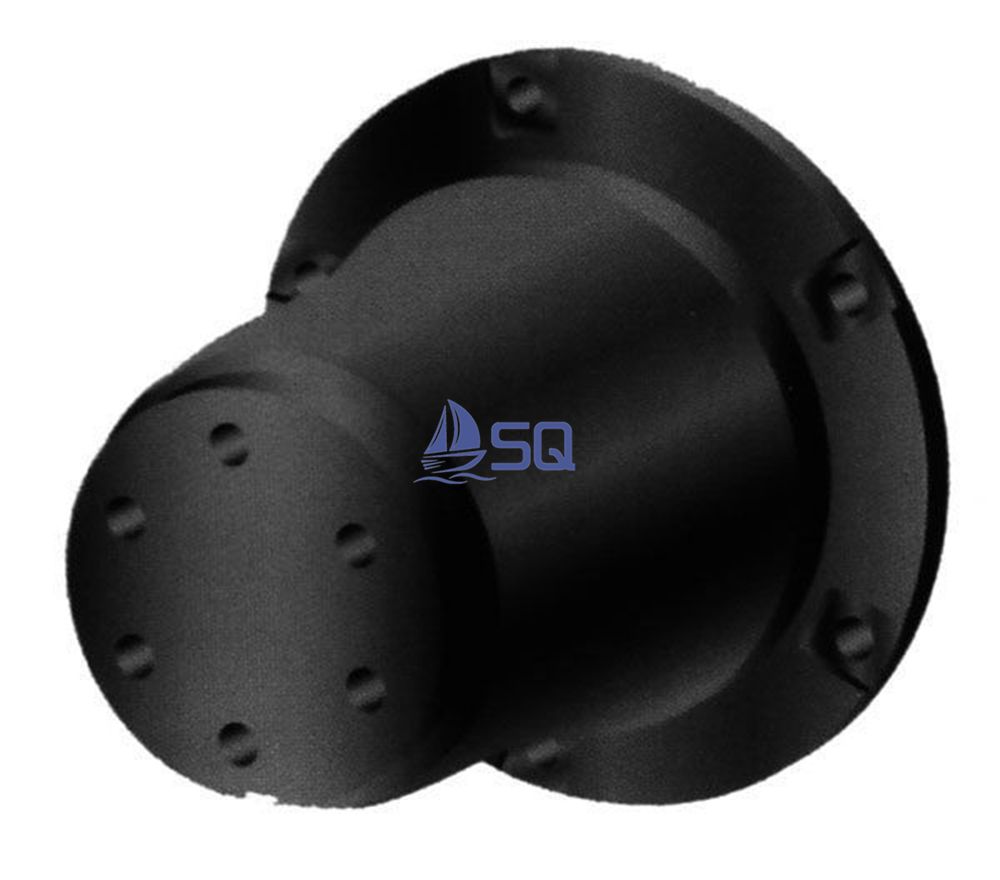

Cone Type ZC Rubber Fender

Cone Rubber Fender

1.High energy absorption and low reaction force.

2.Easy and fast for installation.

3.For selecting a fendering system suitable.

4.Suitable for all kinds of docks.

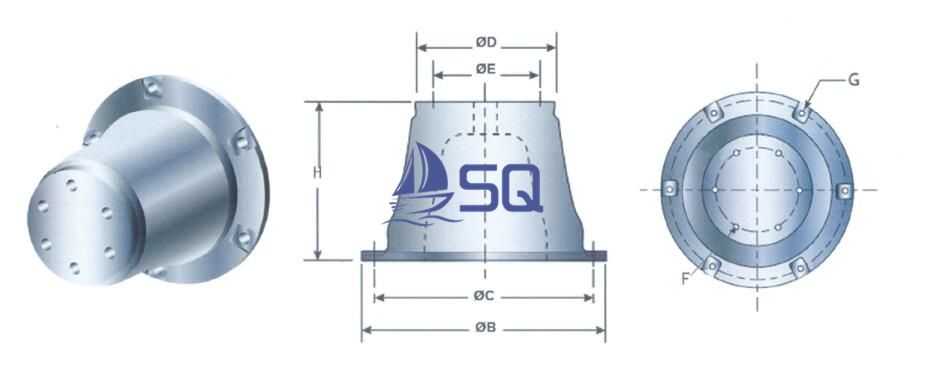

Specification

SPECILIZATION	H  (mm)	B	C  (mm)	D (mm)	E  (mm)	F   #«Type	G  G#x4(mm)	Weight  (kg)
ZC600H	600	900	810	510	390	6xM24	6x30	235
ZC700H	700	1050	945	595	455	6xM30	6x38	350
ZC800H	800	1200	1080	680	520	6xM36	6x44	540
ZC900H	900	1350	1215	765	585	6xM36	6x44	765
ZC1000H	1000	1500	1350	850	650	6*M42	6x50	1050
ZC1100H	1100	1650	1485	935	715	6xM42	6x50	1400
ZC1150H	1150	1725	1550	998	750	6xM42	6x50	1600
ZC1200H	1200	1800	1620	1020	780	8xM42	8x50	1950
ZC1300H	1300	1950	1755	1105	845	8xM48	8x56	2400
ZC1400H	1400	2100	1890	1190	930	8xM48	8x60	3060
ZC1600H	1600	2400	2158	1360	1040	8xM48	8x60	4600
ZC1800H	1800	2700	2428	1528	1170	10xM56	10x74	6600

Workshop

Quality Guarantee:

Product Range: All marine outfittings, equipment, and facilities, etc.
Product Design: With a strong engineer team, for all marine products, we support design, manufacture, installation, etc, according to your requirements. All products strictly conform to your confirmation.
Product Process: Most of the products are finished on our own manufacture bases, thus quality and delivery time could safely guarantee and also avoid indirect troubles.
Product Inspection: Double inspection make sure quality guaranteed completely.
