Continuous Roller Conveyor Shot Blasting Machine
  • Continuous Roller Conveyor Shot Blasting Machine
  • Continuous Roller Conveyor Shot Blasting Machine

Continuous Roller Conveyor Shot Blasting Machine

Get a factory quote now, we can supply according to your requirement.

China Continuous Roller Conveyor Shot Blasting Machine Introduction:

Specifications

    Brand Name
    HS Code
    Unit
  • SET(Sets)
    Customed Made
  • Yes
    MOQ
  • 1
    Delivery Period
  • 3~60 days

Description

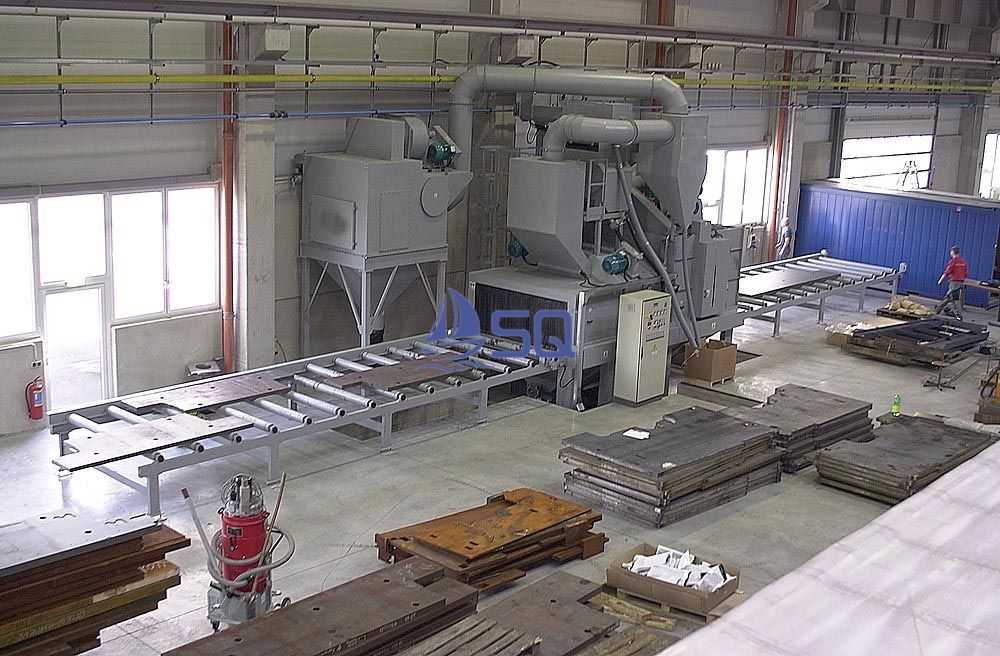

Roller conveyor machine is mainly used for processing long and (or) flat shape of the workpiece. These workpieces are continuously passed through the entering chamber, the shot blasting chamber and the cleaning chamber on a special conveyor roller table. The high efficiency shot wheel mounted on the shotcrete case can be used to handle the workpiece from each direction. The heavy duty shot wheel produced by TED The system due to the accelerated production cycle and its processing costs greatly reduced, but also to reduce the consumption of pellets, lower energy consumption.

The roller table shot blasting machine can be loaded or unloaded manually or automatically.  The special shot blasting wheel arrangement make it slightly tilted in the direction of the projectile and the perfect geometric model of the shot blasting. It ensures that the workpiece will be cleaned form every surfaces by steel grit steel grit.Then the shot blasting effect of the workpiece is perfect.

Advantages:

1.The whole roller conveyor system speed is adjusted by frequency converter.The whole system not only can be operated synchronuously,but also every part can move separately.It can rotate forward and backward.

2.Rollers in blasting chamber are protected by special material jacket to prevent abrasive blasting.

3.blast wheels,adopt Swiss GF technological,whose abrasive flow volume is 120kg/min,blasting speed≥78m/s,blade life≥800hs,distributing impeller and control cage≥1000hs,line plate and protective plate≥1500hs.

4.Abrasive cleaning(patent)

First step cleaning:plough shape scraper,polyurethane material,three layers ladder-like distribution,high efficiency.

Second step blow:high pressure blower will blow off abrasive and dust,reserved compressed air.

Additional blow pipe line is reserved.

5.we adopt the most advanced adjustable full curtain&multistage winnowing separator.Special polyester wire core is used for elevator driving belt,elevator driving wheel use mouse cage structure,preventing driving belt skidding.There are abrasive control device and replenish abrasive.Every driving point has one alarm device.

6.This machine use inertia settlement chamber plus pulse reverse blow bag type dust collector.Dust concentration of exhausted air is less than 80mg/m3.

7.PLC control system.This machine has a visualized dynamic simulation monitoring system,which can automatically find the failure position and timing wear resistable parts operation time,which will give important information to calculate spare part service time and maintenance time.

If you are looking for new roller type shot blasting machine to cleaning workpiece for sale, factory price, brand, made in China, hot sale, direct seller, and overseas roller type shot blasting machine to cleaning workpiece from professional manufacturer, supplier and factory, please feel free to contact us, we are always at your needs of CE, customized, professional, competitive, high precision, new and good quality, and TED roller type shot blasting machine to cleaning workpiece. And welcome to wholesale products with good quality and professional design from us.

Type

Effective cleaning width(mm)

Inlet size of shot blasting room(mm)

Cleaning workpiece length(mm)

Conveying speed (m/min)

Cleaning workpiece thickness (mm)

Blasting volume (kg/min)

First loading capacity (kg)

Ventilation quantity(m3/h)

Total power(kw)

Q698

800

1600×800

1200-12000

0.5-4

3-60

4×120

4000

22000

90

Q6912

1200

1200×400

1200-12000

0.5-4

3-60

4×250

4000

17560

78.3

Q6915

1500

1700×400

1200-12000

0.5-4

1.5-60

4×250

4000

19000

113.5

Q6920

2000

2200×400

1200-12000

0.5-4

3-60

6×250

4500

19550

156.6

Q6925

2500

2700×800

3000-12000

0.5-4

3-60

6×250

4500

27758

204.8

Q6930

3000

3200×800

2400-12000

0.5-4

3-110

6×360

8000

28050

224.55

Q6940

4000

4200×400

4500-18000

0.5-4

4.5-100

8×360

11000

38000

293.6

If you do not know how to choose shot blasting machine or do not see the style you need in the website, please email us, we will provide more choices or co-design!
