CPJ TYPE JET PUMP

Category:Engine Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Request a Quote

Get a factory quote now, we can supply according to your requirement.

China CPJ TYPE JET PUMP Introduction:

Specifications

Brand Name

HS Code

Unit

SET(Sets)

Customed Made

MOQ

Delivery Period

20 days

Description

General description:

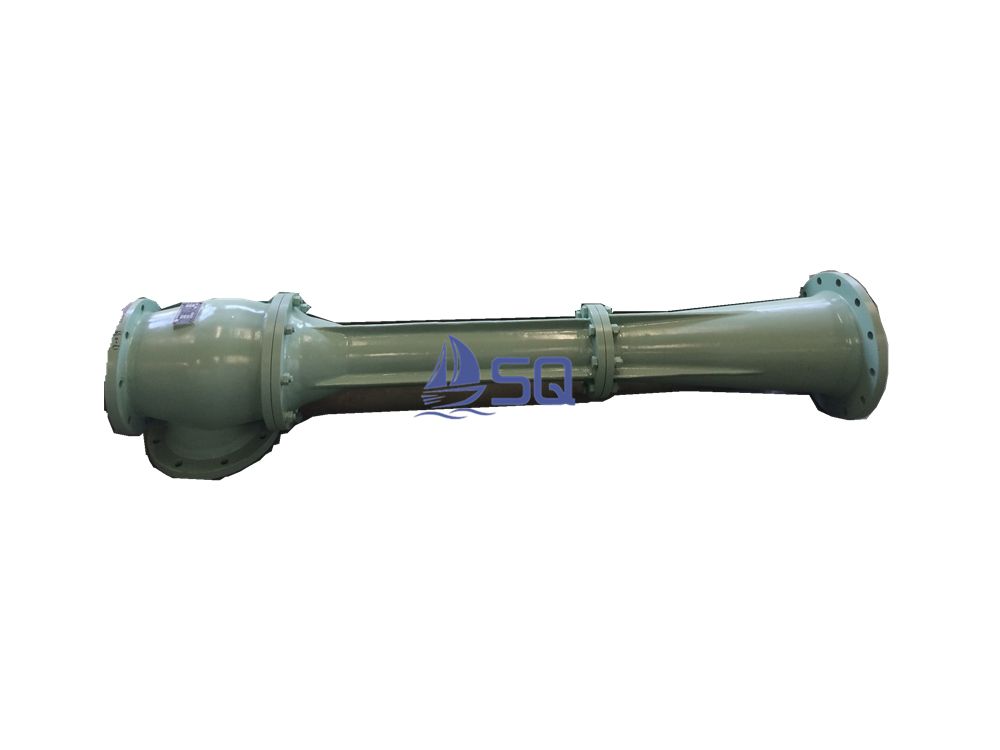

The suction, outlets and nozzles of the CPJ jet pump are all on the same axis, and the efficiency is higher. The working pipe is bent J type, and its flange is vertical to the suction port and the outlet flange, and the installation is convenient. No moving parts, long service life. It has self absorption function and can work steadily and continuously. Mainly used in ship drainage system, can also be used in environmental protection, chemical, water conservancy, building materials and other industries, pumping fresh water, mixed liquids, River dredging, transport powder and so on.

The pump suction flange axis perpendicular to the pump body axis, convenient installation. Has a self-priming performance, can work continuously steadily. No moving parts, long service life. Hydrophobic system is mainly used in ships, also can be used for Hydrophobic system is mainly used in ships, also can be used for materials, etc, for sea water, mixed liquid, river dredging, conveying powder, etc

Tech Parameter:

Type	Capacity (m3/h)	Suction Head (m)	Discharge Pressure (MPa)	Drive Water Pressure (MPa)	Drive Water Capacity (m3/h)	Weight (kg)
CPJ40-50-65	0~15	3~9	0.05~0.3	0.4~1.4	5~15	16
CPJ50-80-80	0~40	3~9	0.05~0.3	0.4~1.4	20~45	26
CPJ80-100-100	0~70	3~9	0.05~0.3	0.4~1.4	40~80	40
CPJ100-125-125	0~100	3~9	0.05~0.3	0.4~1.4	60~120	60
CPJ100-150-150	0~125	3~9	0.05~0.3	0.4~1.4	90~150	75
CPJ125-150-200	0~180	3~9	0.05~0.3	0.4~1.4	100~220	130
CPJ150-200-200	0~320	3~9	0.05~0.3	0.4~1.4	200~370	165
CPJ150-200-250	0~420	3~9	0.05~0.3	0.4~1.4	250~500	180
CPJ200-200-250	0~250	1~7	0.05~0.3	0.1~0.6	300~700	190
CPJ250-250-300	0~400	1~7	0.05~0.3	0.1~0.6	500~1400	285
CPJ300-300-350	0~600	1~7	0.05~0.3	0.1~0.6	900~2000	370

Construction diagram

Type	Outline size			Drive Water Flange				Suction Flange				Discharge Flange
	L	H	X	D1	a	d1	n1	D2	b	d2	n2	D3	c	d3	n3
CPJ40-50-65	580	120	115	150	110	40	4-φ18	165	125	50	4-φ18	185	145	65	4-φ18
CPJ50-80-80	750	125	130	165	125	50	4-φ18	200	160	80	8-φ18	200	160	80	8-φ18
CPJ80-100-100	850	150	105	200	160	80	8-φ18	220	180	100	8-φ18	220	180	100	8-φ18
CPJ100-125-125	1100	180	115	220	180	100	8-φ18	250	210	125	8-φ18	250	210	125	8-φ18
CPJ100-150-150	1100	180	115	220	180	100	8-φ18	285	240	150	8-φ22	285	240	150	8-φ22
CPJ125-150-200	1700	200	130	250	210	125	8-φ18	285	240	150	8-φ22	340	295	200	8-φ22
CPJ150-200-200	1800	240	150	285	240	150	8-φ22	340	295	200	8-φ22	340	295	200	8-φ22
CPJ150-200-250	1800	240	150	285	240	150	8-φ22	340	295	200	8-φ22	395	350	250	12-φ22
CPJ200-200-250	1850	230	175	340	295	200	8-φ22	340	295	200	8-φ22	395	350	250	12-φ22
CPJ250-250-300	2200	260	200	395	350	250	12-φ22	395	350	250	12-φ22	445	400	300	12-φ22
CPJ300-300-350	2500	300	225	445	400	300	12-φ22	445	400	300	12-φ22	505	460	350	16-φ22

Operational principle

a. Jet pumps rely on liquid impact to transmit energy. Namely: the high-pressure working water flow through the nozzle speed greatly increased, the formation of high-speed water jet, thus reducing the pressure. Because of the viscous effect between the working water jet and the air, the high-speed flow takes away the air at the inlet of the mixing chamber, thus forming a vacuum state. Under the action of pressure difference, the sucked water is sucked in. The flow sucked at the inlet of the mixing chamber begins to mix with the high-speed working flow, which collides and enters the mixing chamber. In this way, the speed of the working flow decreases, the speed of the sucked flow increases, and the speed of the two streams gradually converges. The pressure in the mixing chamber increases gradually until the mixture is completely mixed. After mixing, the water flows into the diffusion chamber, which further converts the velocity into pressure energy and then discharges from the outlet of the diffusion chamber.

b. From the working principle, the jet pump can self-priming, continuous and stable work, and simple structure, easy maintenance, no transmission device, easy installation.
