I. Overview

CQ series marine centrifugal ventilators (hereinafter referred to as ventilators) can transport air, marine air containing salt mist and corrosive air containing oil mist, etc. The ventilators are suitable for the ventilation of various compartments on ships, boiler ventilation, and can also be applied to other appropriate occasions.

CQ series marine centrifugal ventilators are designed and manufactured in accordance with the national standard GB/T11865 ‘Marine Centrifugal Ventilators’ and the current ‘Code of Practice for the Construction of Steel Sea-going Ships.

II. Characteristics

CQ series marine centrifugal ventilators are small in size, light in weight, low in noise, good in corrosion resistance, good in airtightness, small in starting torque, and strong in resistance to swaying, vibration and impact.

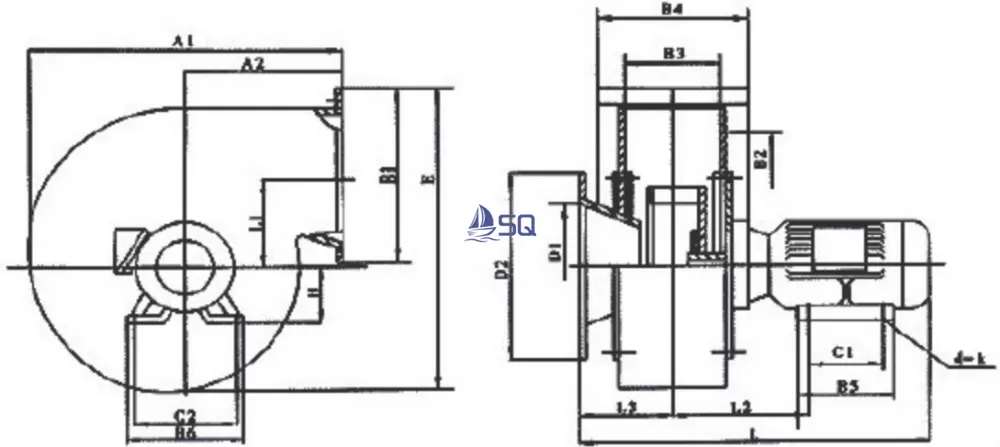

III. Structure

CQ series marine centrifugal ventilator is horizontal, motor direct connection structure, can also be made into vertical structure.
The impeller of CQ series marine centrifugal ventilator is made of aluminium alloy material riveted and corrected by static and dynamic balance.
CQ series marine centrifugal ventilator shell, air inlet, etc. are made of ordinary steel materials welded together and made into airtight structure.
CQ series marine centrifugal ventilator fan can be made into clockwise rotation (right turn) or counterclockwise rotation (left turn).
Reversal (left turn) a motor from the end of the front view, the impeller rotates in the counterclockwise direction, to ‘L’ said.
Clockwise rotation (right rotation) - When viewed from the motor side, the impeller rotates in the clockwise direction, and is indicated by ‘R’.

IV. Technical parameters

Type	Capacity m³/h	Total pressure Pa	Speed r/min
CQ1-J	400	290	2900
CQ2-J	500	590	2900
CQ3-J	800	590	2900
CQ4-J	1800	590	2900
CQ5-J	2500	590	1450
CQ6-J	3500	590	1450
CQ7-J	6000	590	1450
CQ8-J	8000	590	960
CQ9-J	10000	590	960
CQ10-J	900	1180	2900
CQ11-J	1500	1180	2900
CQ12-J	2200	1180	2900
CQ13-J	2800	1180	2900
CQ14-J	5000	1180	1450
CQ15-J	7500	1180	1450
CQ16-J	9000	1180	1450
CQ17-J	12000	1180	1450
CQ18-J	600	1960	2900
CQ19-J	2000	1960	2900
CQ20-J	3500	1960	2900
CQ21-J	5000	1960	2900
CQ22-J	9000	1960	1450
CQ23-J	800	4410	2900
CQ24-J	1000	1960	2900
CQ25-J	12000	2450	2900

Note: The data in the performance parameter table is for reference only, please contact our company in order to get the accurate fan parameters and quotations!
