1. General
CWL Series marine small-sized centrifugal fan can carry ordinary air, sea air containing salt vapor and corrosive air containing oil vapor.
They are suitable for ventilation of kitchen, lavatory, bulkhead, the public place and meeting room etc. in the naval and merchant ships, they can also be used for all kinds respective place.
CWL type fans can transmit gas mixtures or vapor of combustible and explosive and working safety in “dangerous place”, if the fans are matched with explosion-proof motors.
2. Features
Small size, light weight, stable performance, low noise, well-strength, well-anticorrosive, wide application range.
Strong performance of resisting swing, vibration and shock
3. Structure
CWL Series marine or navy small-sized centrifugal fans have the construction with direct coupling of the motor. It can be constructed into a horizontal type or a vertical type. The impeller, the casing and inlet are made of riveted. Both the casing and the inlet are made of welded.

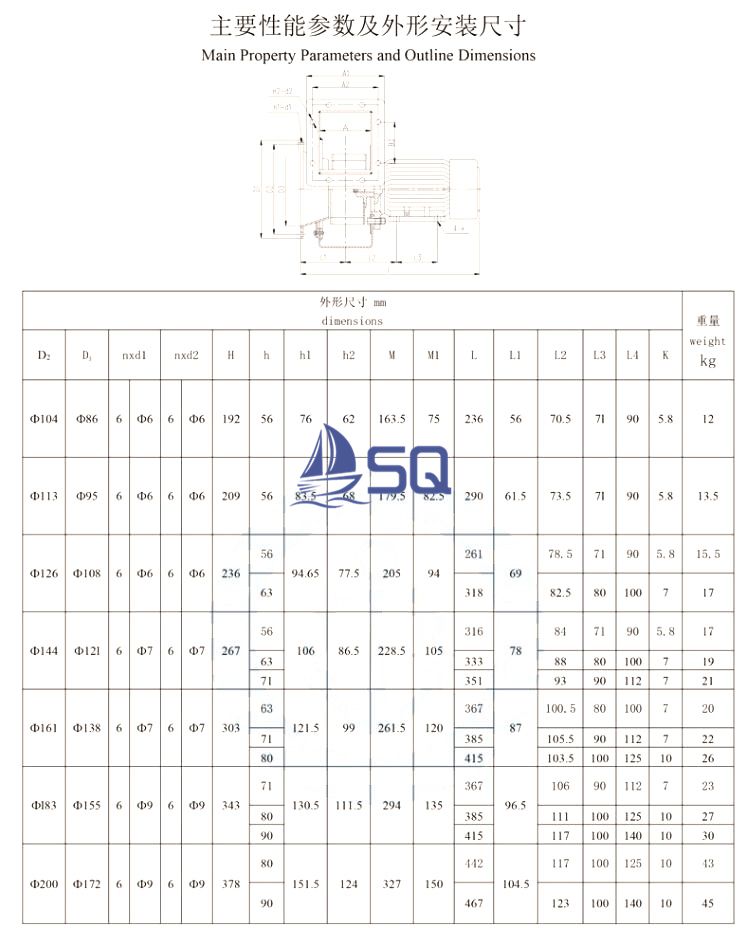

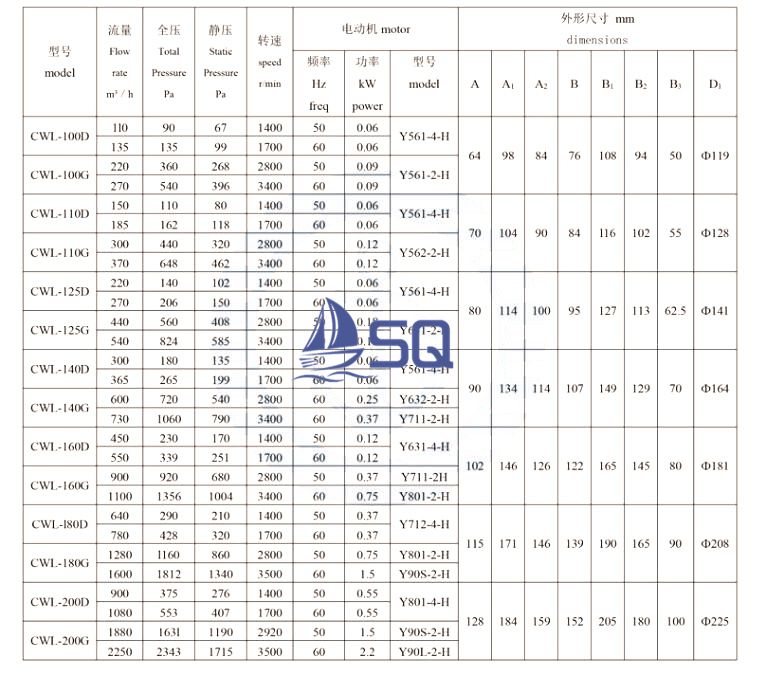

4. Model explanation
