CWZ series marine of small sized Axial Flow Fan

Category:Engine Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Request a Quote

Get a factory quote now, we can supply according to your requirement.

China CWZ series marine of small sized Axial Flow Fan Introduction:

Specifications

Brand Name

HS Code

Unit

PCE(Pieces)

Customed Made

MOQ

Delivery Period

60 days

Description

1. General
CWZ Series marine small-sized axial fans (simply the fans) are suitable for ventilation of kitchen, lavatory, bulkhead, the public place and meeting room etc.in the naval and merchant ships. They are also applicable in other places that suit.
2. Features
The fans are designed according to arbitrary vortex flow method. We choose the most reasonable vortex flow coefficient on the basis of the fans, specification, distribute every sectional characteristic speed & length of the vanes, the fans have low-noise, small size, light-weight, stable performance, etc.
In the course of designing & manufacturing, we have thought fully of the marine special conditions, the impellers are strictly made by dynamic balance adjustment & over speed test. Therefore, the fans also have the features of good-anticorrosion, anti-swing, vibration resistance, stable running, and safety reliable.

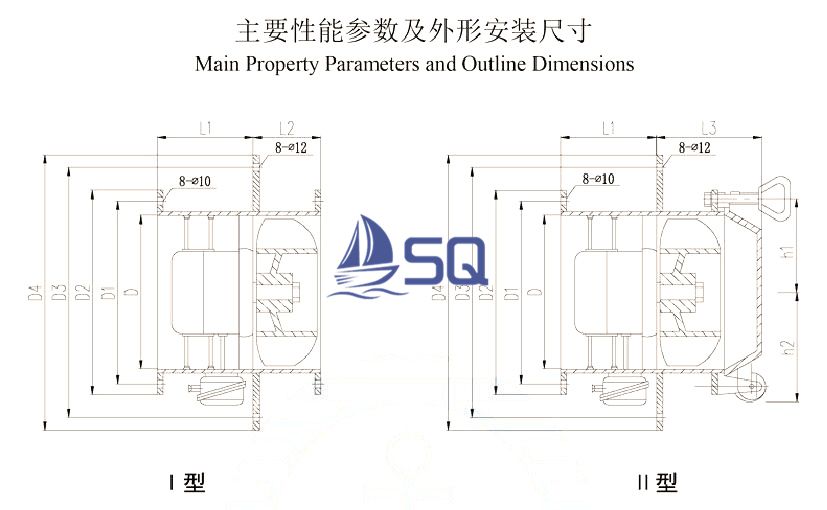

3. Structure

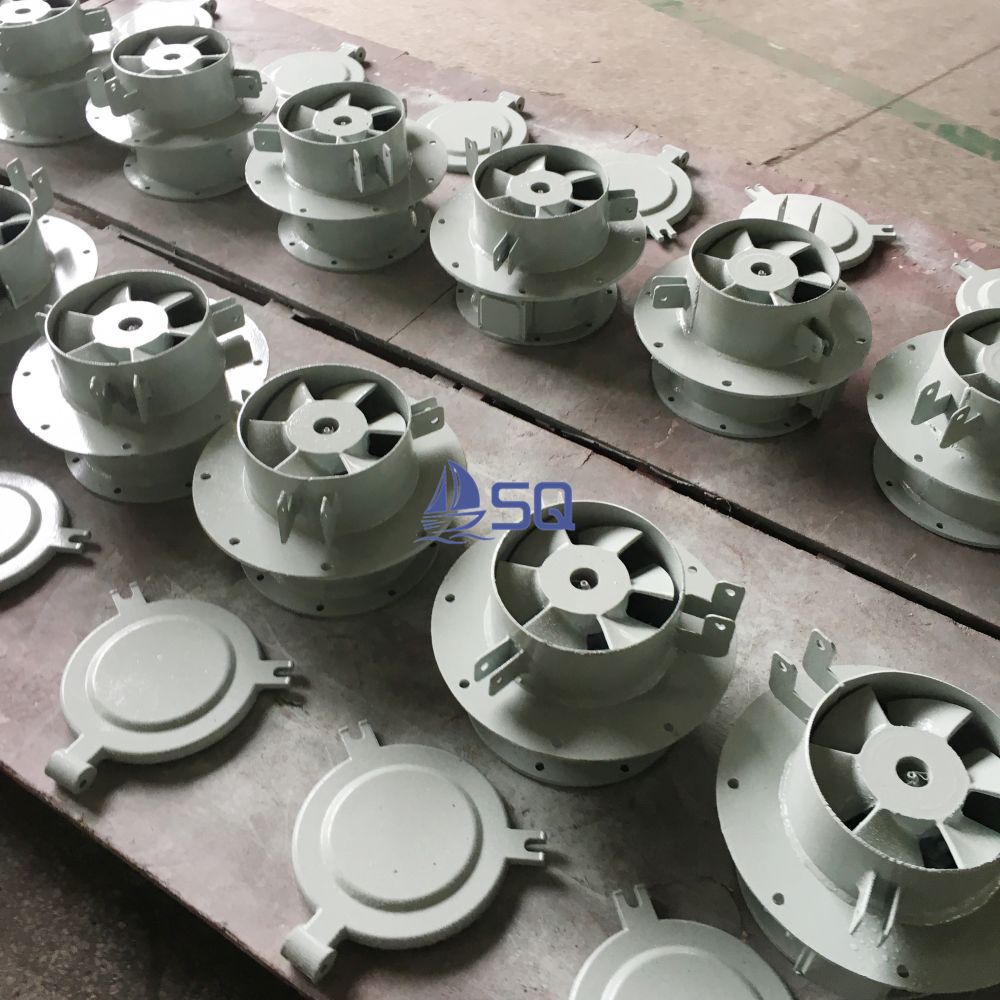

The fans can be made into two structure types, type I (tube type), type II (porthole type):
type I -tube type for ventilation of short tubes or fixed on the bulkhead.
type II –fixed on porthole. It can be fixed on the porthole or the bulkhead. Since its water-proof it can be easily opened or closed to keep rain or sea water out.
Impeller is made of cast aluminum alloy, casing is welding by steel sheet.

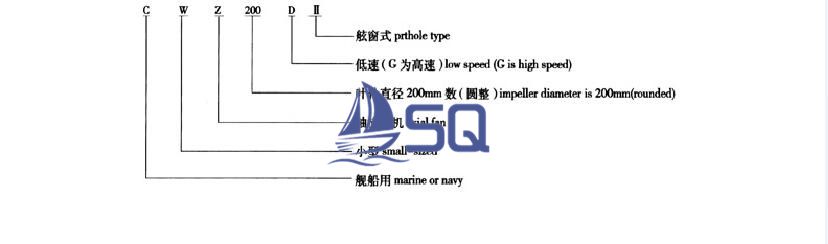

4. Model explanation

型号 model	流量 flow rate m3／h	全压 total Pres -sure Pa	转速 Speed r/min	电动机 motor			外形尺寸mm dimension										重量 weight Kg
				频率 freq HZ	功率 power kW	型号 model	D	D1	D2	D3	D4	L1	L2	L3	h1	h2	I	II
CWZ-200D	450	35	1400	50	0.06	Y561-4-H	200	245	265	310	340	110	88	108	146	150	12.7	14.3
	550	50	1700	60
CWZ-200G	920	140	2800	50	0.09	Y561-2-H											12.7	14.3
	1120	200	3400	60
CWZ-224D	650	40	1400	50	0.09	Y562-4-H	224	268	288	335	365	156	88	118	158	162	14	15.8
	790	60	1700	60
CWZ-224G	1310	160	2800	50	O.12	Y562-2-H											14.6	16.4
	1590	240	3400	60
CWZ-250D	910	50	1400	50	0.09	Y562-4-H	250	295	315	360	390	156	95	125	172	175	16.2	18.5
	11OO	75	1700	60
CWZ-250G	181O	200	2800	50	O.25	Y632-2-H											17.2	19.6
	221O	300	3400	60
CWZ-280D	1280	65	1400	50	0.09	Y562-4-H	280	324	344	390	420	156	103	134	187	190	20	22.5
