Cylindrical Type Rubber Fender

Feature

1.Low reaction force,low surface pressure and reasonable capability of energy absorption.

2.Good adaptability of vertical shake of ships during mooring.

3.Wide range of application,no matter the ships with different sizes.

4.Convenient in mounting or maintaining and suitable for all of ports.

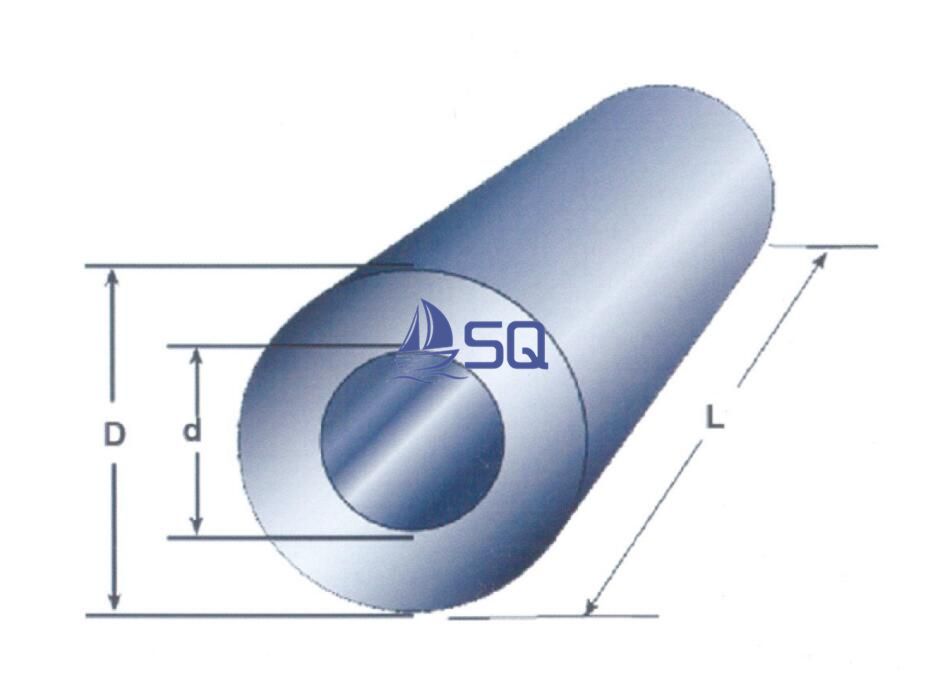

Specification

Types	Outer Dia	Inner Dia	Length of Product	Notes
Y150 x L	150	75	500-30000	Products of other sizes can be man­ufactured at user's request.
Y200 x L	200	100
Y250 X L	250	125
Y300 X L	300	150
Y350 X L	350	175
Y400 X L	400	200
Y500 X L	500	250
Y600 x L	600	300
Y700 X L	700	350
Y800 X L	800	400
Y900 x L	900	450
Y1000 X L	1000	500	1000-20000
Y1100 X L	1100	550
Y1200 X L	1200	600
Y1300 X L	1300	650
Y1400 X L	1400	700
Y1500 X L	1500	750
Y1600 X L	1600	800
Y1700 X L	1700	850
Y1800 X L	1800	900
Y1900 X L	1900	950
Y2000 X L	2000	1000

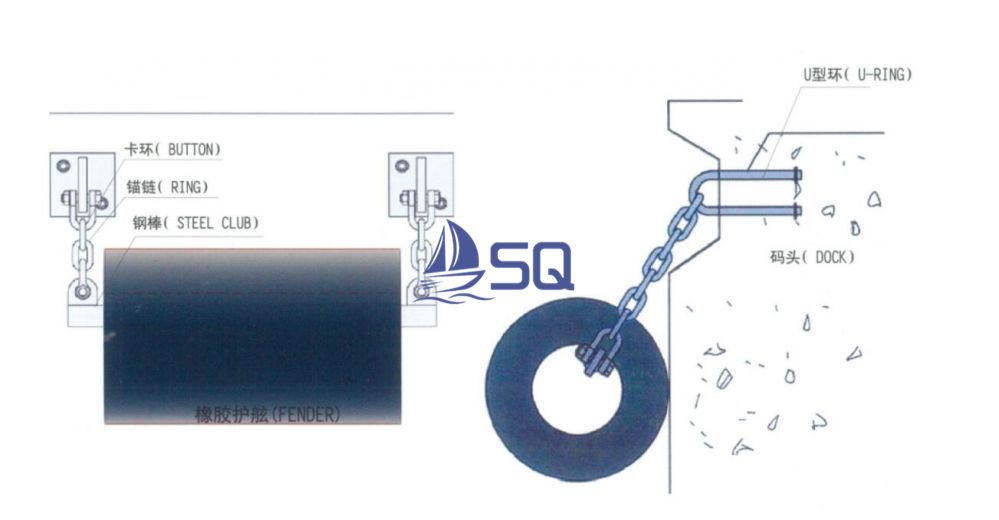

Installation

Type	Club	Ring	Button	U-ring
Y150	18-33	10-17	10-18	15-25
Y300	25-44	13-23	14-24	20-36
Y400	50-70	13-23	19-24	20-36
Y500	60-100	14-26	20-28	25-40
Y600	60-100	19-32	20-32 .	30-50
Y1000	100-150	24-42	24-42	38-65
Y1200	120-180	34-46	28-45	40-70
Y1400	130-200	40-50	30-48	42-80
Y1600	140-220	30-52	30-55	48-85

Workshop

Quality Guarantee:

Product Range: All marine outfittings, equipment, and facilities, etc.
Product Design: With a strong engineer team, for all marine products, we support design, manufacture, installation, etc, according to your requirements. All products strictly conform to your confirmation.
Product Process: Most of the products are finished on our own manufacture bases, thus quality and delivery time could safely guarantee and also avoid indirect troubles.
Product Inspection: Double inspection make sure quality guaranteed completely.
