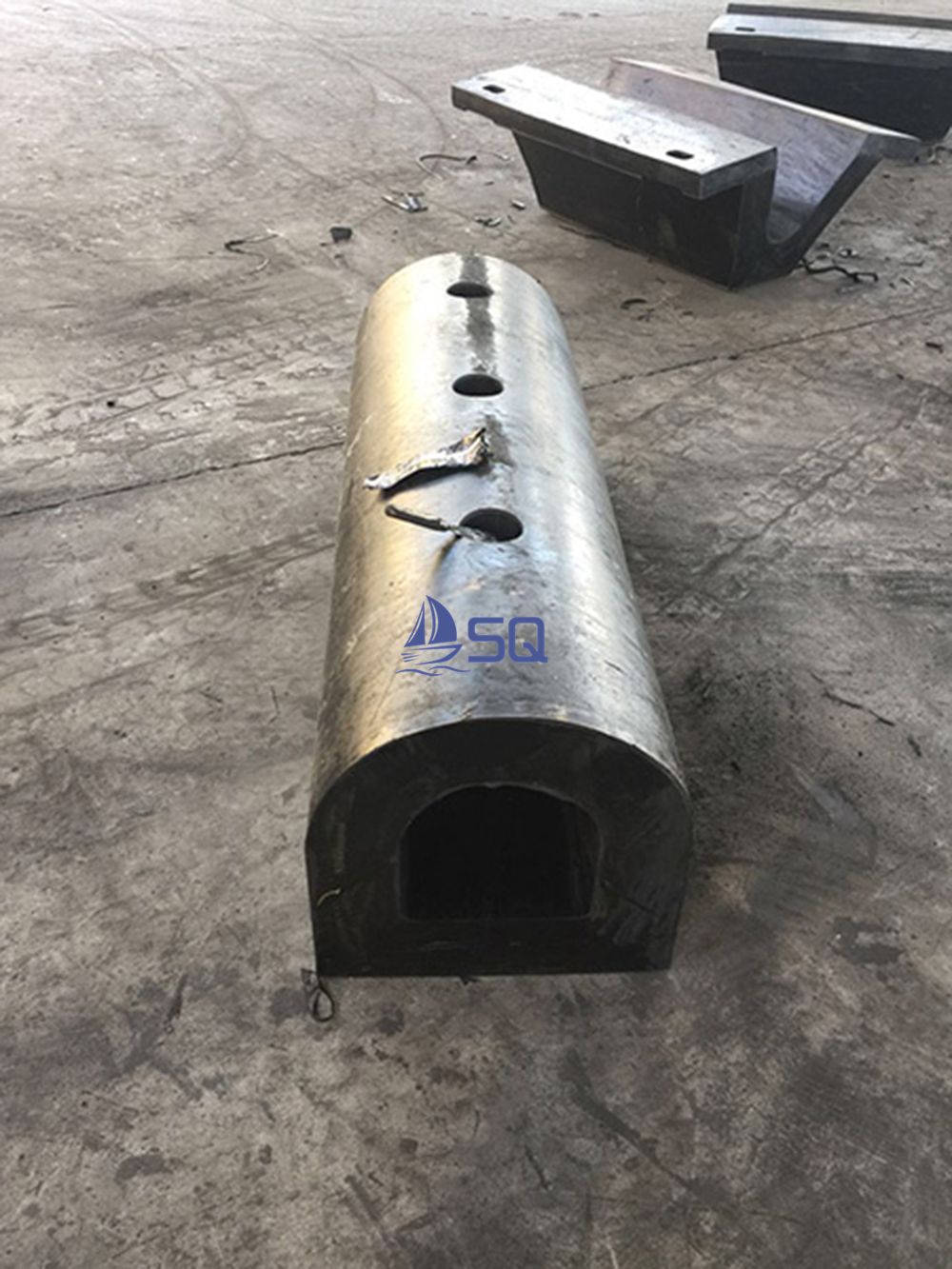

D Type Rubber Fender

Feature

1.Reasonable reaction force,more energy absorption than that of cylinder tupe.

2.Easy mounting.

3.Applicable to frame docks and ships due to smaller bottom width.

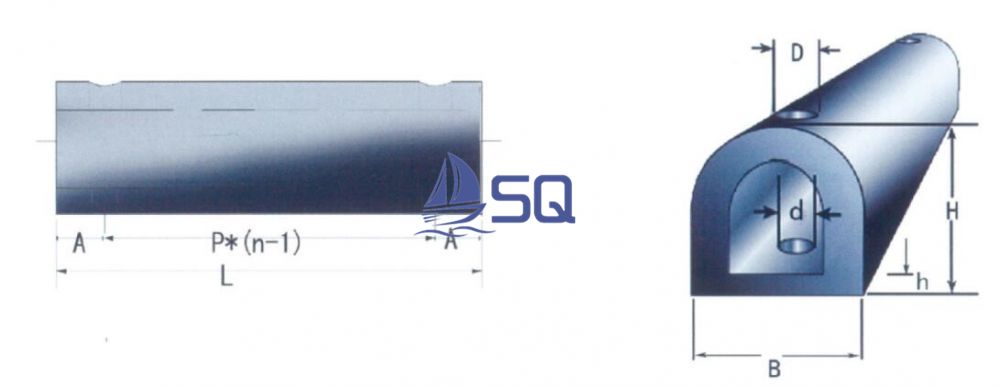

Specification

Model	L(mm)	A(mm)	D(mm)	d(mm)	B(mm)	H(mm)	h(mm)	p(mm)	fastening points	Weight(mm)
D200H	1000	200	55	28	200	200	30	300	3	37
D200H	1500	150	55	28	200	200	30	600	3	56
D200H	2000	250	55	28	200	200	30	500	4	74
D300H	900	150	65	32	300	300	40	600	2	80
D300H	1000	200	65	32	300	300	40	600	2	67
D300H	1500	150	65	32	300	300	40	600	3	105
D300H	2000	250	65	32	300	300	40	500	4	134
D300H	1000	200	65	32	360	300	40	600	2	80
D300H	1500	150	65	32	360	300	40	600	3	120
D400H	1500	150	65	32	400	400	55	400	4	150
D400H	2000	200	65	32	400	400	55	400	5	200
D500H	1000	150	55	28	500	500	90	350	3x2	195
D500H	1500	150	55	28	500	500	90	400	4x2	298
D500H	2000	200	55	28	500	500	90	400	5*2	395

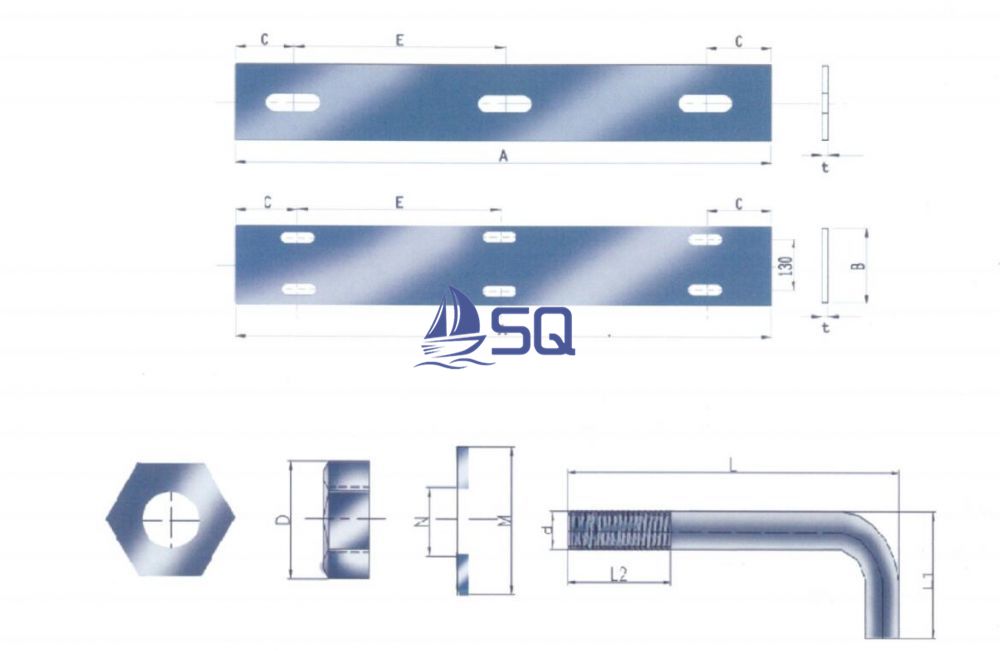

Accessories

Model	Impacted Plate						Nut	Washer		Bolt
	A	B	c	F	E	t	D	M	N	L	L1	L2	d
D200Hx200x1000L	1000	70	200	50	600	14	36	50	27	300	120	90	24
D200Hx200x1500L	1500	70	150	50	600	14	36	50	27	300	120	90	24
D200Hx200x2000L	2000	70	250	50	500	14	36	50	27	300	120	90	24
D300Hx300x1000L	1000	100	200	60	600	16	41	55	31	400	120	100	27
D300Hx300x1500L	1500	100	150	60	600	16	41	55	31	400	120	100	27
D300Hx300x2000L	2000	100	250	60	500	16	41	55	31	400	120	100	27
D300Hx360x1000L	1000	100	200	60	600	16	41	55	31	400	120	100	27
D300Hx360x1500L	1500	100	150	60	600	16	41	55	31	400	120	100	27
D400Hx400x1500L	1500	120	150	60	400	16	41	55	31	450	120	120	27
D400Hx400x2000L	2000	120	200	60	400	16	41	55	31	450	120	120	27
D500Hx500x1000L	1000	180	150	50	350	18	36	50	27	500	120	120	24
D500Hx500x1500L	1500	180	150	50	400	18	36	50	27	500	120	120	24
D500Hx500x2000L	2000	180	200	50	400	18	36	50	27	500	120	120	24

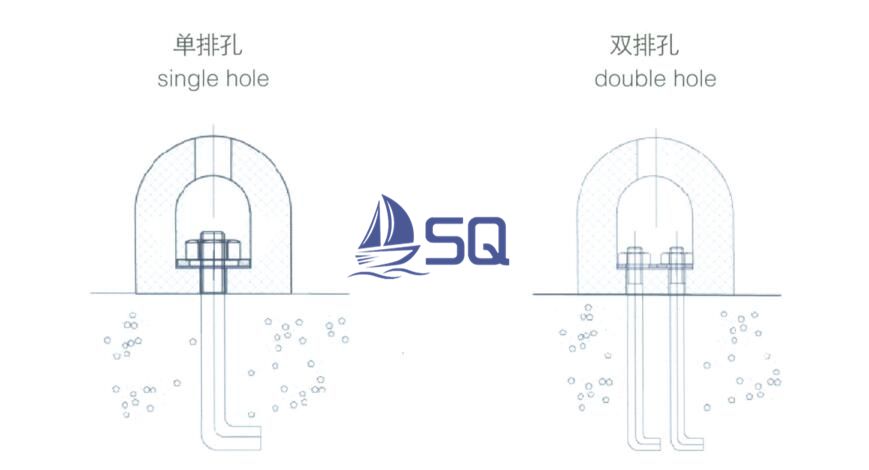

Installation

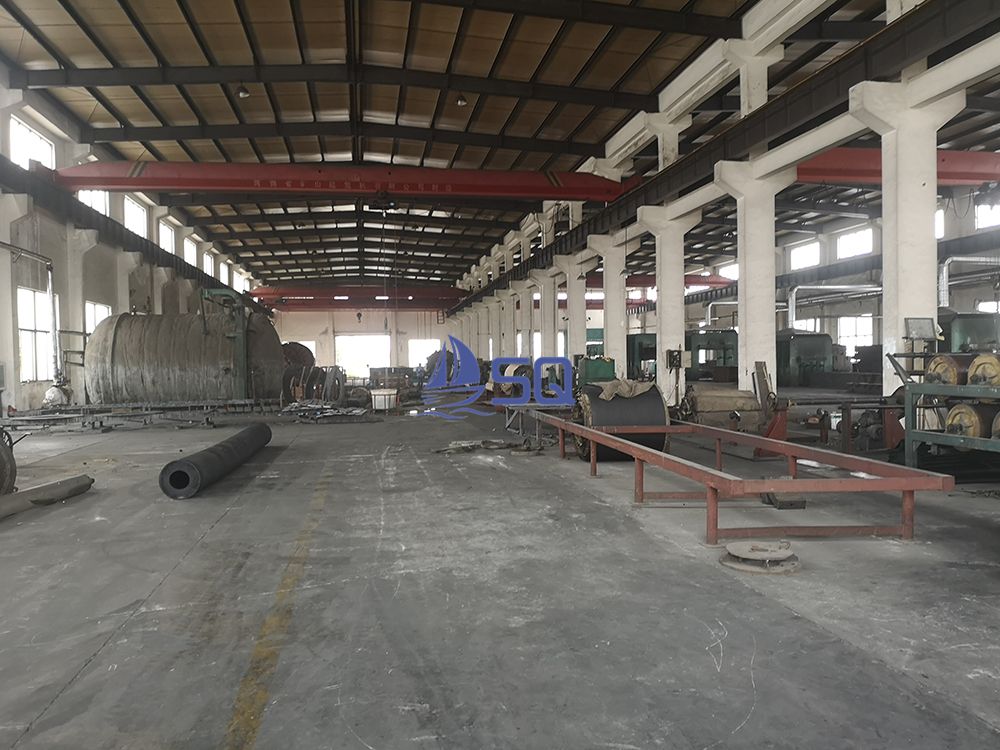

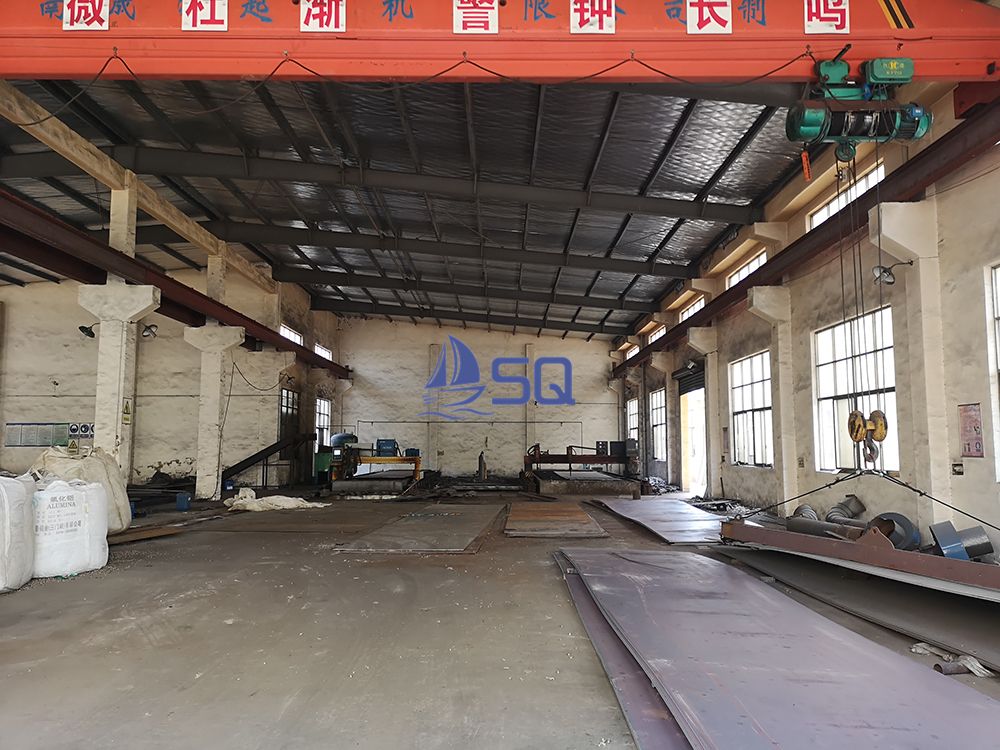

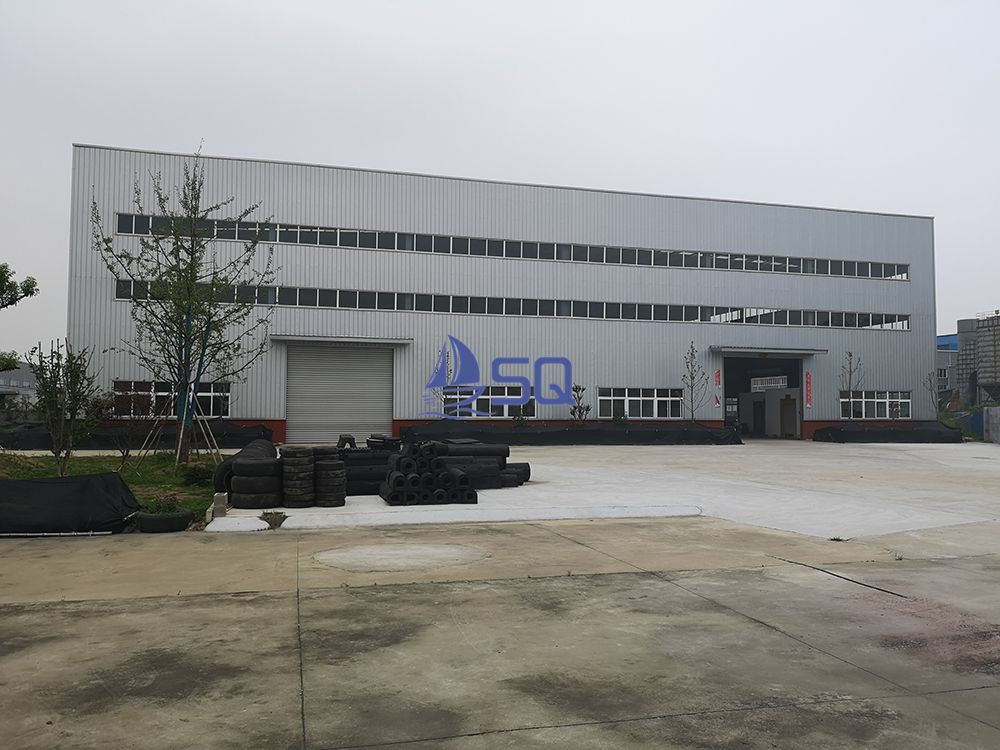

Workshop

Quality Guarantee:

Product Range: All marine outfittings, equipment, and facilities, etc.
Product Design: With a strong engineer team, for all marine products, we support design, manufacture, installation, etc, according to your requirements. All products strictly conform to your confirmation.
Product Process: Most of the products are finished on our own manufacture bases, thus quality and delivery time could safely guarantee and also avoid indirect troubles.
Product Inspection: Double inspection make sure quality guaranteed completely.
