Specification available: DN110-1400mm(outer diameter)
SDR/pressure ratings: SDR11-PN16, SDR13.6-PN12.5, SDR17-PN10，SDR21-PN8, SDR26-PN6
Material to be used: Virgin PE100 raw material
Colors available: Black color, or as per request
Standards that follow to: ISO 4427，AS/NZS 4130, ASTMF714, EN 12201, CE andother international standards.

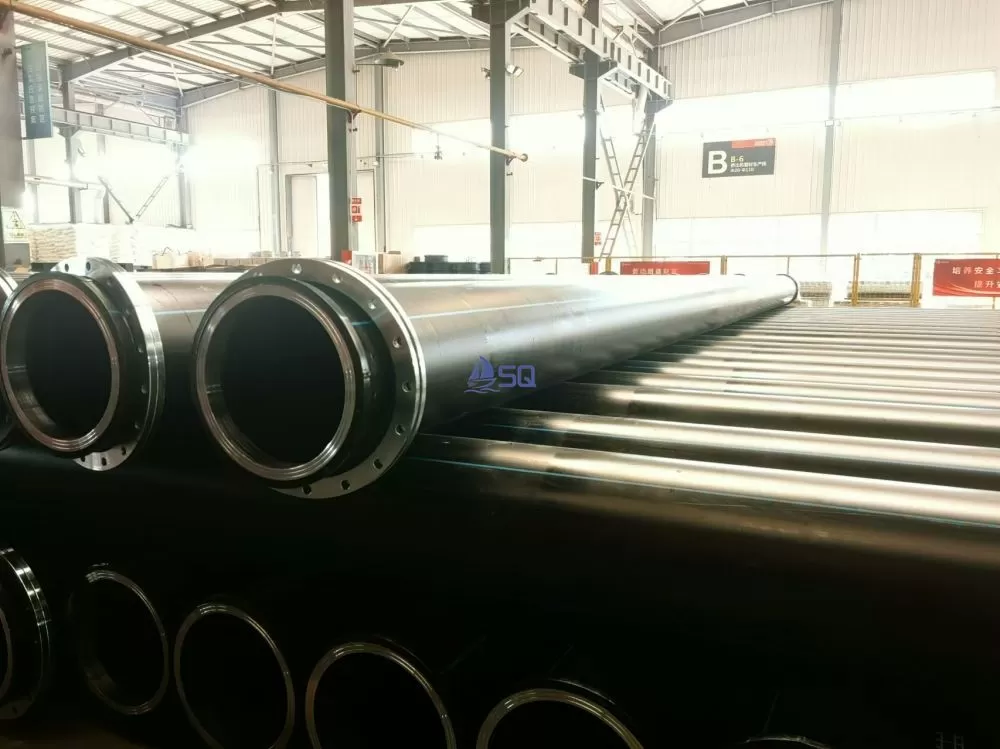

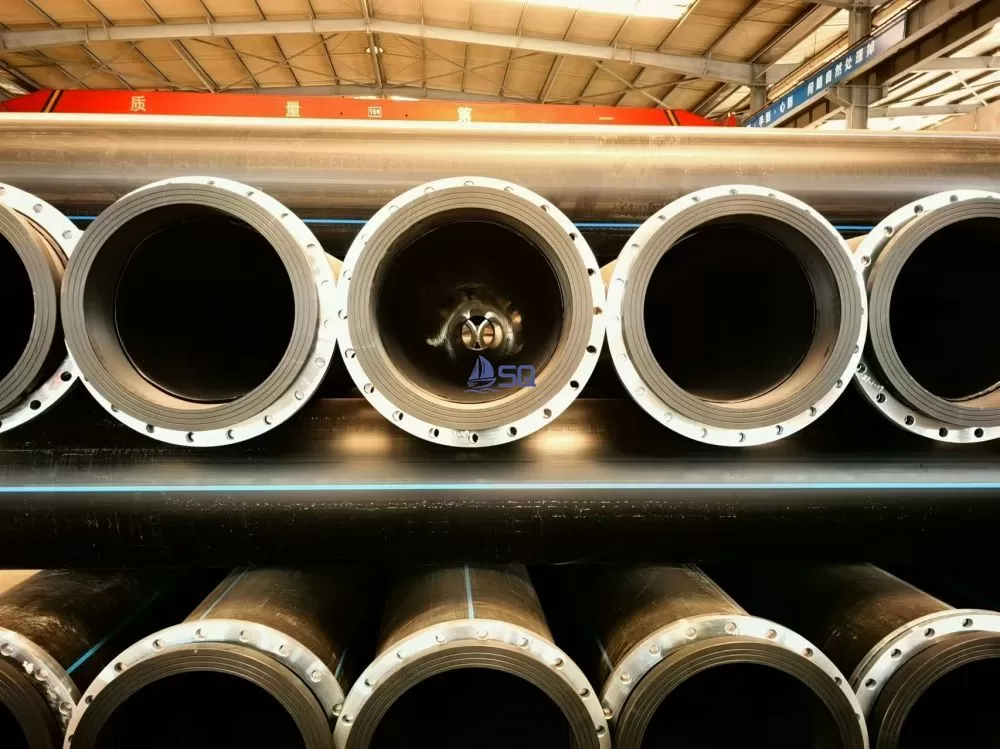

Flange material: Stainless steel or carbon steel (galvanized or coated by PP)
|
Specification |
SDR26 |
SDR21 |
SDR17 |
SDR13.6 |
SDR11 |
|
Pressure |
0.6Mpa |
0.8Mpa |
1.0Mpa |
1.25Mpa |
1.6Mpa |
|
DN(mm) |
thickness(mm) |
thickness(mm) |
thickness(mm) |
thickness(mm) |
thickness(mm) |
|
110 |
4.2 |
5.3 |
6.6 |
8.1 |
10.0 |
|
160 |
6.2 |
7.7 |
9.5 |
11.8 |
14.6 |
|
180 |
6.9 |
8.6 |
10.7 |
13.3 |
16.4 |
|
200 |
7.7 |
9.6 |
11.9 |
14.7 |
18.2 |
|
225 |
8.6 |
10.8 |
13.4 |
16.6 |
20.5 |
|
250 |
9.6 |
11.9 |
14.8 |
18.4 |
22.7 |
|
280 |
10.7 |
13.4 |
16.6 |
20.6 |
25.4 |
|
315 |
12.1 |
15.0 |
18.7 |
23.2 |
28.6 |
|
355 |
13.6 |
16.9 |
21.1 |
26.1 |
32.2 |
|
400 |
15.3 |
19.1 |
23.7 |
29.4 |
36.3 |
|
450 |
17.2 |
21.5 |
26.7 |
33.1 |
40.9 |
|
500 |
19.1 |
23.9 |
29.7 |
36.8 |
45.4 |
|
560 |
21.4 |
26.7 |
33.2 |
41.2 |
50.8 |
|
630 |
24.1 |
30.0 |
37.4 |
46.3 |
57.2 |
|
710 |
27.2 |
33.9 |
42.1 |
52.2 |
64.5 |
|
800 |
30.6 |
38.1 |
47.4 |
58.8 |
72.6 |
|
900 |
34.4 |
42.9 |
53.3 |
66.2 |
81.7 |
|
1000 |
38.2 |
44.7 |
59.3 |
72.5 |
90.2 |
|
1200 |
46.3 |
57.2 |
70.6 |
88.2 |
|
|
1400 |
53.9 |
66.8 |
82.4 |
102.9 |
|
