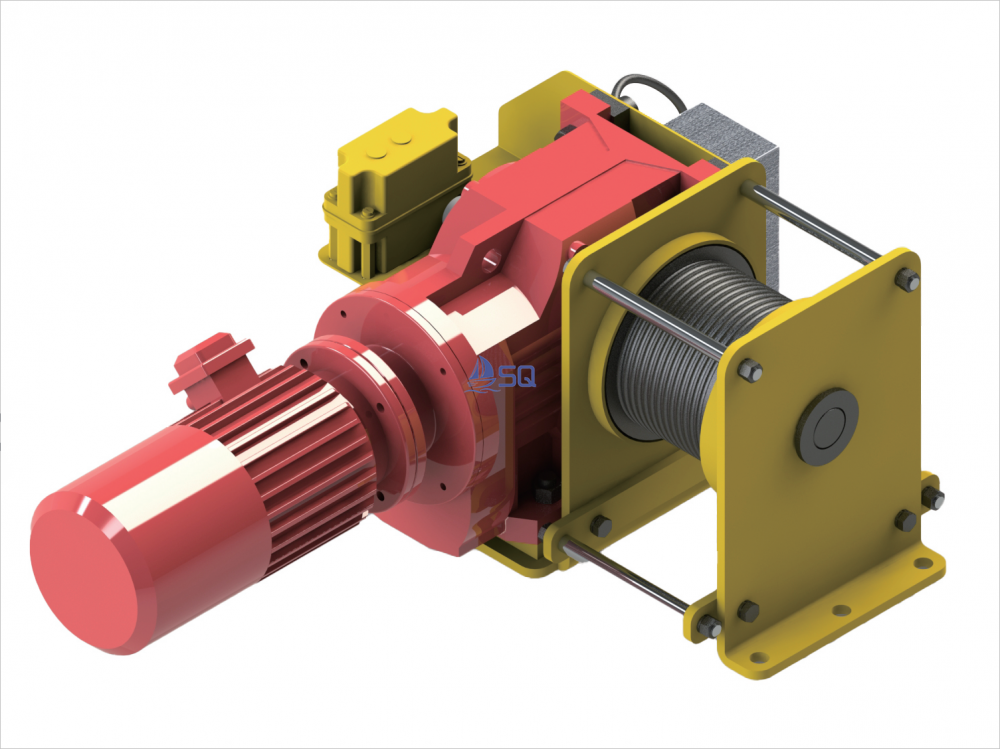

This Winch is an efficient, reliable and safe device for conveying, lifting and handling material in various industrial fields.
1. The use of rope groove reel design, can effectively protect the rope, to prevent the rope wear and tear and breakage, thereby extending the service life of the winch.
2. It has the characteristics of high efficiency, stability and safety, and can meet different industiral production requirements.
3. According to the customer’s positioning of the quality of the whole machine, we can match the corresponding domestic geared motor or SE W, Nordi, Siemens and other joint venture brand geared motor.
4. This product is equipped with a four-point height limiter as standard, and an optional absolute encoder can be used for servo control.
|
Model |
Power |
Ratio |
Torque |
Rope Speed |
Lift weight |
|
PJS-1-500 |
0.55kw |
108.29:1 |
604n.m |
4.7m/min |
500kgs |
|
PJS-1-1000 |
5.5kw |
141.93:1 |
4866n.m |
10-14m/min |
1500kgs |
|
PJS-1-3000 |
4.0kw |
115.16:1 |
2872n.m |
6.8m/min |
3000kgs |
|
PJS-1-4000 |
11kw |
110.83:1 |
7496n.m |
11.8m/min |
4000kgs |
|
PJS-1-5000 |
5.5kw |
166.62:1 |
3647n.m |
4.2m/min |
5000kgs |
|
PJS-1-6000 |
4kw |
307:1 |
7350n.m |
2.5m/min |
6000kgs |
Welcome to consult China Equipment Supporting Winch suppliers. We have more than 10 years of foreign trade supply experience and have provided high-quality shipping equipment to dozens of countries around the world. We provide you with high-quality services and preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
