I. Overview

FA series marine axial flow ventilator can transport air, marine air containing salt mist and corrosive air containing small amount of oil mist, etc. FA series marine axial flow ventilator is suitable for the ventilation of various compartments on the ship, and it can also be applied to other appropriate occasions.FA series marine axial flow ventilator is designed and manufactured in accordance with relevant provisions of GB11864 ‘Axial Flow Ventilator for Shipboards’ and China Shipbuilding Inspection Bureau ‘Code for the Construction of Steel Sea-going Vessels’. The FA series of marine axial flow ventilators are designed and manufactured in accordance with GB11864 ‘Axial flow ventilators for ships’ and ‘Code for construction of steel marine vessels’ of China Ship Inspection Bureau.

II. Characteristics

Low noise
High efficiency
The casing can be made into open type
Reversible
Good anti-corrosion performance
Strong resistance to swaying, vibration and shock

III. Structure

FA series marine axial flow ventilators are made with the structure that the motor is placed in the casing and the impeller is directly mounted on the motor shaft.
The impeller is made of anticorrosive aluminium alloy casting, and the casing is welded with steel material.
The casing can be made into integral type or axial opening type according to the need. The open type casing is to install the impeller and motor on the half casing which can be opened, so it is convenient for on-site maintenance and replacement of parts.
FA series marine axial flow ventilators are made to be viewed from the motor end, and the impeller rotates in a clockwise direction. In use, the fan is allowed to rotate in the reverse direction.
FA series marine axial flow ventilators can be equipped with 380V/415V, 50Hz or 440V, 60Hz marine AC motors, and can also be customised according to customer requirements.

440V 60Hz

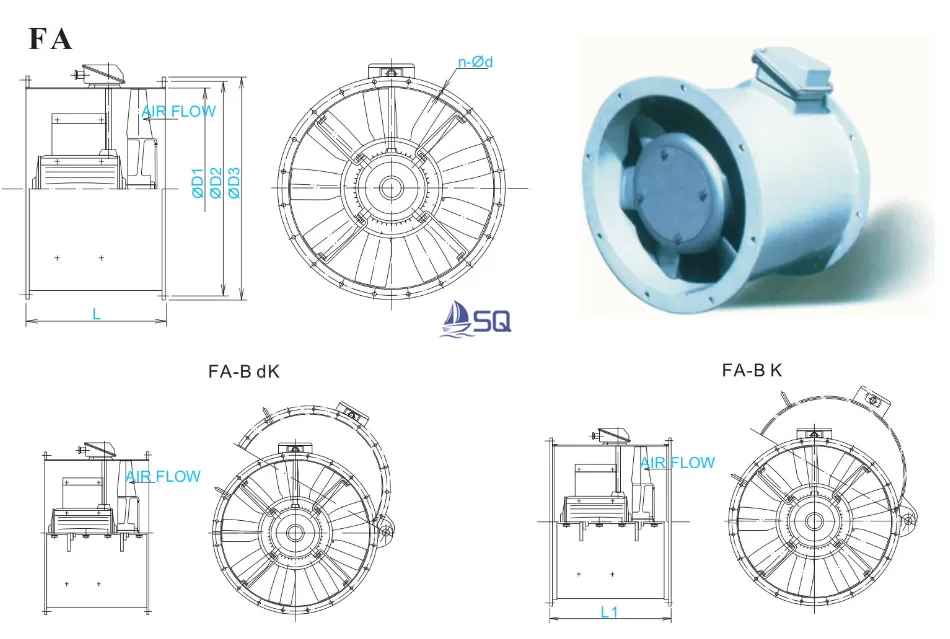

Type	Power kw	Speed r/min	D1 mm	D2 mm	D3 mm	L mm	n	d mm
FA-27-1	0.25	3500	270	340	370	350	8	12
FA-30-1	0.75	3500	300	370	400	350	8	12
FA-35-1	0.55	1750	350	420	450	350	8	12
FA-35-2	0.75	3500	350	420	450	350	8	12
FA-40-3	0.55	1750	400	470	500	350	12	12
FA-45-1	0.55	1750	450	525	560	350	12	12
FA-45-2	2.2	3500	450	525	560	420	12	12
FA-45-4	0.75	1750	450	525	560	350	12	12
FA-50-1	0.75	1750	500	580	620	350	12	15
FA-50-2	1.5	1750	500	580	620	450	12	15
FA-55-1	1.5	1750	550	630	670	450	12	15
FA-55-2	2.2	1750	550	630	670	450	12	15
FA-60-1	2.2	1750	600	680	720	450	12	15
FA-65-1	4	1750	650	730	770	500	12	15
FA-65-2	4	1750	650	730	770	500	12	15
FA-70-1	4	1750	700	780	820	500	16	15
FA-75-1	2.2	1160	750	830	870	580	16	19
FA-75-2	5.5	1750	750	830	870	580	16	19
FA-80-2	5.5	1750	800	880	920	580	16	19
FA-85-1	4	1160	850	930	970	580	16	19
FA-85-2	5.5	1160	850	930	970	580	16	19
FA-85-3	5.5	1750	850	930	970	580	16	19
FA-90-2	5.5	1160	900	980	1020	620	16	19
FA-90-3	7.5	1160	900	980	1020	620	16	19
FA-90-4	7.5	1750	900	980	1020	620	16	19
FA-90-5	11	1750	900	980	1020	620	16	19
FA-95-1	7.5	1160	950	1030	1070	620	16	19
FA-95-2	15	1750	950	1030	1070	620	16	19
FA-95-3	15	1750	950	1030	1070	620	16	19
FA-100-1	11	1160	1000	1080	1120	620	20	19
FA-100-3	7.5	1160	1000	1080	1120	620	20	19
FA-110-2	11	1160	1100	1180	1220	780	20	19
FA-110-3	15	1160	1100	1180	1220	780	20	19
FA-120-2	15	1160	1200	1290	1340	780	20	19
FA-120-3	18.5	1160	1200	1290	1340	880	20	24
FA-120-6	18.5	890	1200	1290	1340	880	20	24
FA-140-1	30	1160	1400	1490	1540	880	20	24
FA-140-2	15	1160	1400	1490	1540	880	24	24
FA-140-3	18.5	1160	1400	1490	1540	880	24	24
FA-140-7	18.5	890	1400	1490	1540	950	24	24
FA-140-8	30	890	1400	1490	1540	950	24	24
FA-150-4	37	890	1500	1590	1640	1100	24	24
FA-150-5	30	890	1500	1590	1640	1000	24	24
FA-160-1	45	890	1600	1700	1760	1200	24	24
FA-170-1	45	890	1700	1800	1860	1100	24	24
FA-170-2	75	890	1700	1800	1860	1200	28	24
FA-185-1	90	890	1850	1950	2010	1500	28	24
FA-200-1	75	890	2000	2100	2160	1400	30	24
