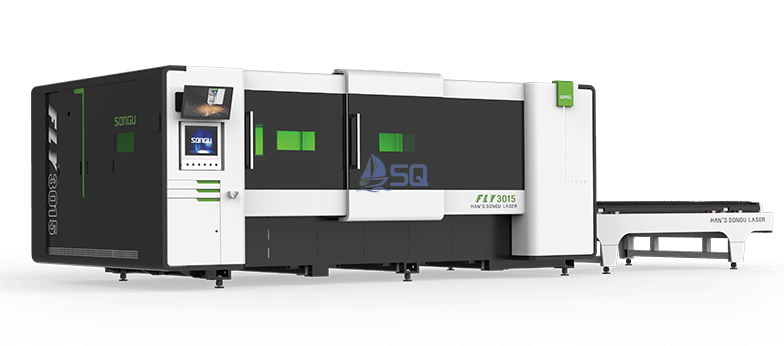

Fiber Laser Cutting Machine

Fiber Laser Cutting Machine

Model：FLY3015

Working area：3000*1500mm

Laser power：1000-30000W

Overall dimension：9000*3200*2250mm

Introduction

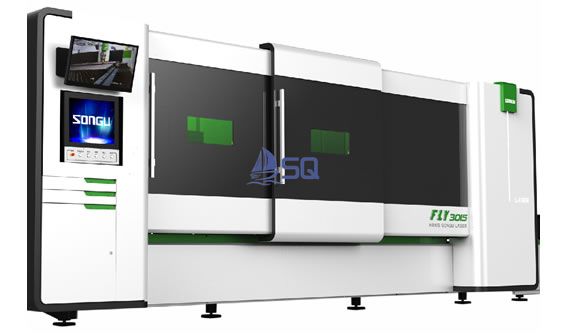

Side Door Design

The side door design with the movable operation panel provides the best observing view, which is easy for operation and user-friendly.

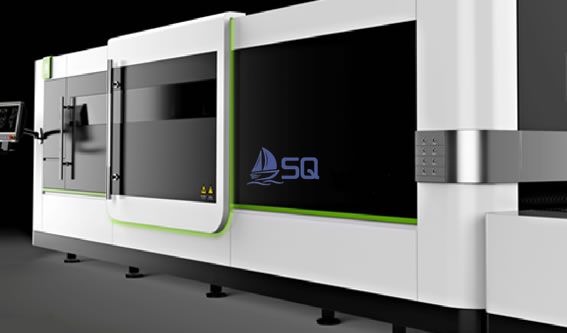

Fully Enclosed Protective Design

Fully enclosed protective design, equipped with CE standard safety window and safety interlock, completely in accordance with European safety standards, meeting the radiation safety requirements of GB-7247 laser products, protects operator from any laser damage.

Features

Gantry structure, high-strength welding frame, stress reduction treatment, good rigidity, small deformation;

Precision servo motor with high-accuracy transmission mechanism, high transmission torque, less error, good dynamic performance;

Enclosed exterior protective design, equipped with CE standard protective safety window;

Y-axis sliding plate is made by cast aluminum, with integrated z-axis system, to achieve high precision, instant response and stable operation;

Ergonomic design, intelligent operating terminal, friendly interface, easy to learn;

Shuttle table is applied to achieve high efficiency with few failures, and the structure is safe and reliable;

Built-in remote assistance function to deal with equipment failure, which greatly saves time of troubleshooting and makes it easy for us to provide better after-sales service.

Specification
