Product Introduction

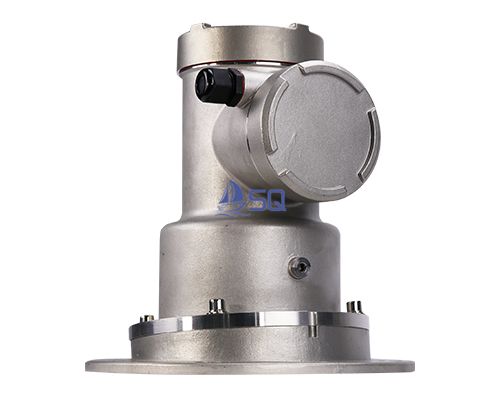

TC-FMCR8F-ZB, TC-FMCR15F-ZB and TC-FMCR30F-ZB are 120G frequency modulated continuous wave radar Level sensor, which are developed based on the principle of frequency modulated continuous wave (FMCW) radar technology. This device is designed with aluminum alloy, which is sturdy, durable, and lightweight, with excellent adaptability and anti-interference ability.
This equipment is mainly used for liquid level measurement, on-site display, and data uploading. This device has rich interfaces, including 4-20mA current output and HART protocol, RS485 digital interface, Bluetooth function, and switching value. Optional integrated GPRS wireless transmission module can facilitate wireless transmission and multi terminal data viewing. Model and its significance

Technical characteristics

frequency
F-band (120GHz)
Shell material
aluminium alloy
Minimum measurement distance
20cm20cm/30cm away from the flange plate
display
Graphical LCD display screen
Maximum measurement distance
8m/15m/30m
Process Connection
Default DN100 (customizable)
Supply voltage
DC9V~28V
GPRS function
Supports 2/3/4G cards and IoT cards (optional)
Protection level
IP65
measurement accuracy
± 3mm
Beam angle
3 °
weight
About 2Kg
output
4-20mA/switch quantity 3A250VAC/RS485/HART/Bluetooth

Functional highlights
Straight flange design, size can be customized according to customer requirements.
High reliability, high adaptability, and high anti-interference ability.
Parameters can be configured on-site through a remote control; Parameter configuration, data query, and echo curve retrieval can also be remotely performed through the RS485 interface.
Automatic false echo learning and suppression, filtering out false interference, further improving measurement accuracy and adaptability.
