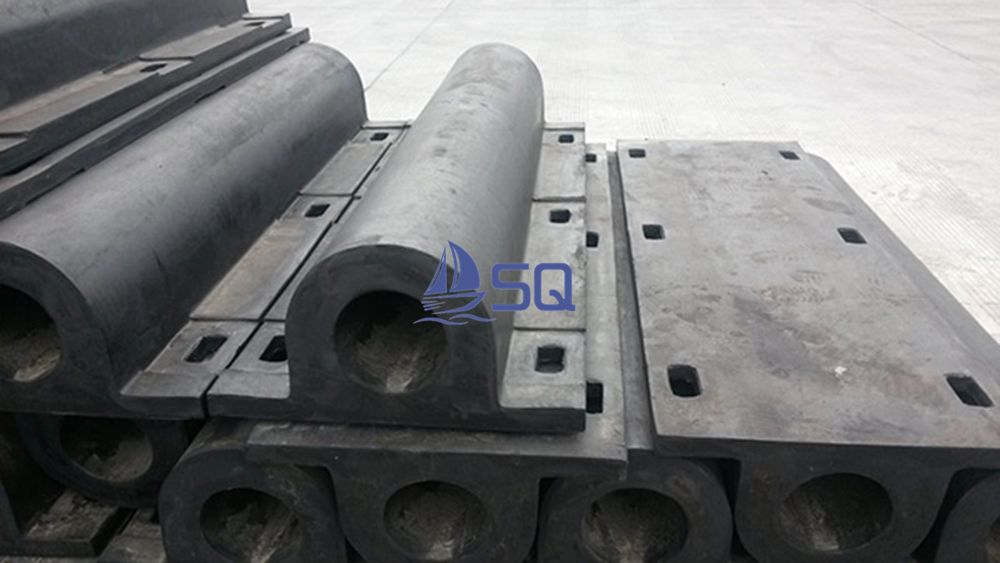

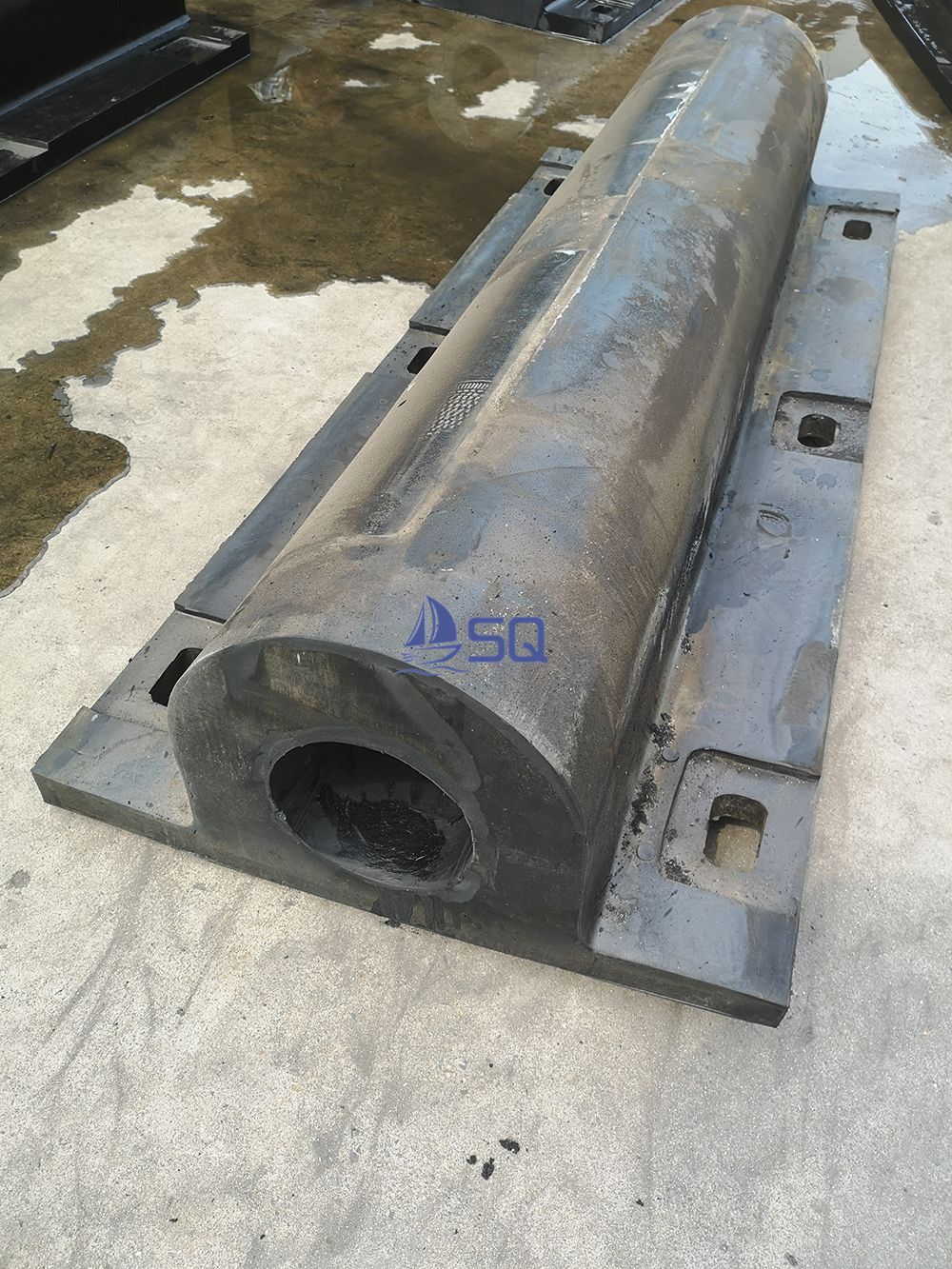

GD Type Rubber Fender

Feature

1.The performance of reaction force and energy absorption are higher than D type.

2.The installation stability and service life are much higher than the D type.

3.It is usually suitable for the frame type harbours.

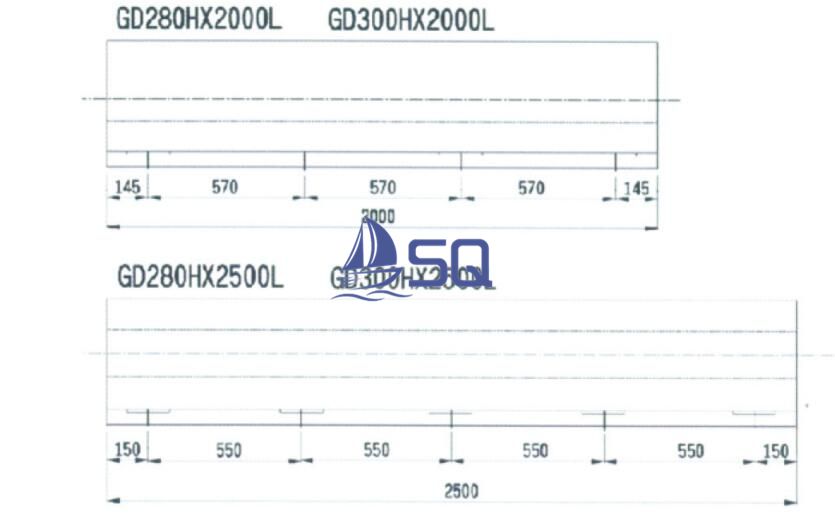

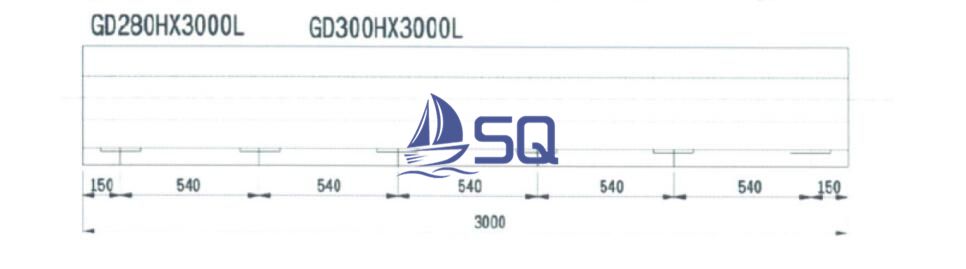

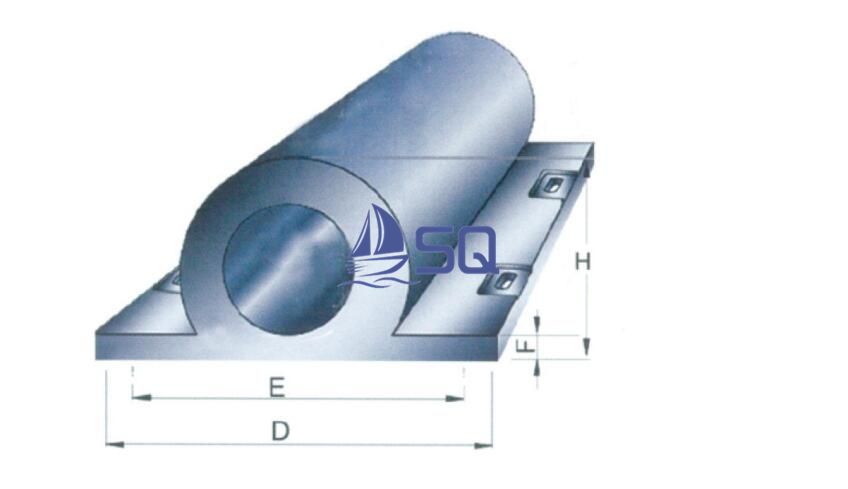

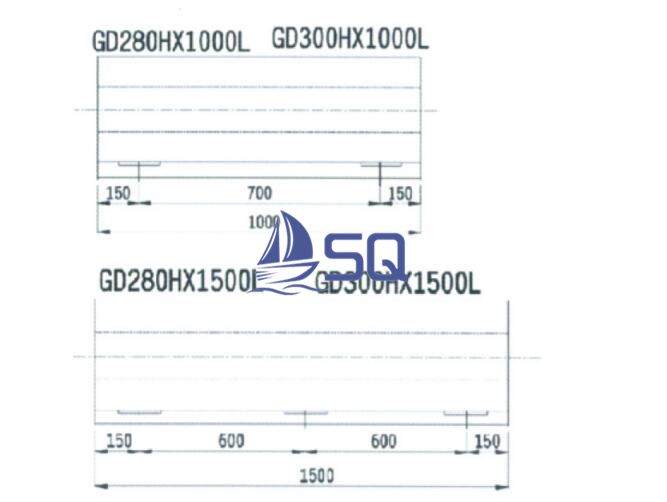

Specification

型号	D	E	F	H	M	I	J
Model	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
GD280Hx1000L	540	430	40	280	M30	40	300
GD280Hx1500L	540	430	40	280	M30	40	300
GD280Hx2000L	540	430	40	280	M30	40	300
GD280Hx2500L	540	430	40	280	M30	40	300
GD280Hx3000L	540	430	40	280	M30	40	300
GD300Hx1000L	600	490	40	300	M36	40	360
GD300Hx1500L	600	490	40	300	M36	40	360
GD300Hx2000L	600	490	40	300	M36	40	360
GD300Hx2500L	600	490	40	300	M36	40	360
GD300Hx3000L	600	490	40	300	M36	40	360

Performance List

型号Model	设计压缩变形Rated Deflection 50%
	反力	吸能量
	Reaction Force(KN)	Energy Absorbtion(KN-M)
GD280Hx1000L	375	14
GD280Hx1500L	565	21
GD280Hx2000L	750	28
GD280Hx2500L	940	35
GD280Hx3000L	1130	42
GD300Hx1000L	450	18
GD300Hx1500L	675	27
GD300Hx2000L	900	36
GD300Hx2500L	1125	45
GD300Hx3000L	1350	54

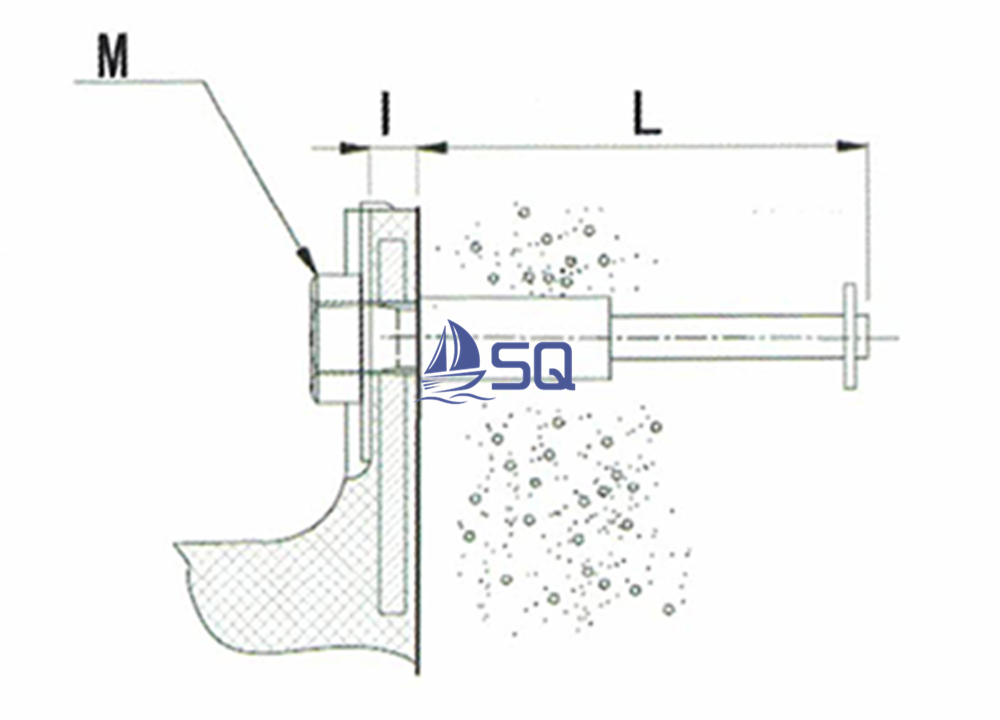

Installation

Workshop

Quality Guarantee:

Product Range: All marine outfittings, equipment, and facilities, etc.
Product Design: With a strong engineer team, for all marine products, we support design, manufacture, installation, etc, according to your requirements. All products strictly conform to your confirmation.
Product Process: Most of the products are finished on our own manufacture bases, thus quality and delivery time could safely guarantee and also avoid indirect troubles.
Product Inspection: Double inspection make sure quality guaranteed completely.
