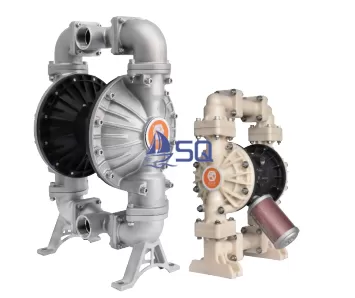

This types are our first generation diaphragm pump for new energy lithium battery.
Two ways for driving. One is by air. The other is by electric motor.
Product use
Grinding production of raw materials.
Pulping and coating process of anode and cathode materials.
Transport of various raw material and chemicals.
Sewage treatment and waste liquid transportation.
The whole body does not contain copper and zinc, avoid the reaction with the conveying medium.
Adapt to the application of new energy field.
Center body has added protection function, protect the normal operation of bearings, improve the efficiency.
Transportation characteristics of strong wear, solid particles, high viscosity and strong corrosion in the manufacturing process of new energy storage materials.
The new pressure protection device at the pump port replaces the pressure relief valve to protect the bearing and extend the service life.
Solve the trouble of oil leakage, more wear-resistant, reduce operation and maintenance costs.
Fluid contact parts materials:
|
Cast steel |
Nodular cast iron |
Aluminum alloy |
Engineering plastics |
SUS304 |
SUS316 |
SUS316L |
PVDF |
Teflon |
|
G |
Q |
L |
S |
P |
P316 |
P316L |
F |
T |
Diaphragm Materials
|
Butyronitrile |
Santoprene |
Polyether |
Teflon |
Super teflon |
Santoprene +Teflon |
Santoprene+Super Teflon |
Polyether + teflon |
Polyether + super teflon |
|
D |
A |
M |
T |
C |
T |
N |
K |
H |
Valve Ball Materials
|
Butyronitrile |
Santoprene |
PTFE |
SUS304 |
SUS316 |
SUS316L |
Engineering plastics |
|
D |
A |
F |
P |
P316 |
P316L |
S |
Ball seat Materials
|
Butyronitrile |
Santoprene |
PTFE |
SUS304 |
SUS316 |
SUS316L |
Engineering plastics |
|
D |
A |
F |
P |
P316 |
P316L |
S |
GDXQ - 40 P T F F
GDXD: special pump for new energy lithium battery, Pneumatic
40: Inlet diameter
F: Material of fluid contact part
F: Material of diaphragm
F: Material of valve ball
F: Material of ball seat.
|
Model: |
GDXQ-25 |
GDXQ-40 |
GDXQ-50 |
GDXQ-80 |
|
Max.Flow |
31gpm |
100gpm |
150gpm |
275gpm |
|
Max.Working pressure |
120psi |
120psi |
120psi |
120psi |
|
Fluid inlet |
1in.bsp |
1-1/2in.bsp |
2in.bsp |
3in.bsp |
|
Fluid outlet |
1in.bsp |
1-1/2in.bsp |
2in.bsp |
3in.bsp |
|
Air inlet |
1/2in. bsp |
1/2in. bsp |
1/2in. bsp |
3/4in. bsp |
|
Wet suction |
18ft |
18ft |
18ft |
25ft |
|
Max.permitted grain |
1/8in |
3/16in |
1/4in |
3/8in |
|
Max.Air consumption |
23.66scfm |
32scfm |
45scfm |
82.6scfm |
|
Every reciprocating flow |
0.15gal |
0.5gal |
1.03gal |
2.0gal |
|
Max.Reciprocating speed |
276cpm |
200cpm |
145cpm |
135cpm |
Pump body structure materials available for PP, Stainless steel, PVDF.
|
Model: |
GDXD-25 |
GDXD-40 |
GDXD-50 |
GDXD-80 |
|
Max.Flow |
12.7gpm |
42.8gpm |
64.7gpm |
126.8gpm |
|
Max.Working pressure |
58psi |
58psi |
58psi |
58psi |
|
Fluid inlet |
1in.bsp |
1-1/2in.bsp |
2in.bsp |
3in.bsp |
|
Fluid outlet |
1in.bsp |
1-1/2in.bsp |
2in.bsp |
3in.bsp |
|
Wet suction |
13ft |
16.4ft |
16.4ft |
20ft |
|
Max.permitted grain |
1/8in |
3/16in |
1/4in |
3/8in |
|
Every reciprocating flow |
0.15gal |
0.5gal |
1.03gal |
2.0gal |
|
Max.Reciprocating speed |
85cpm |
85cpm |
63cpm |
63cpm |
|
Outlet pressure |
0.4Mpa |
0.4Mpa |
0.4Mpa |
0.4Mpa |
|
Motor power |
1.5Kw |
2.2Kw |
3Kw |
4Kw |
Pump body structure materials available for PP, Stainless steel, PVDF.
Pulse damper
Pump accessories
Flange
Filter
Pneumatic FRL
Valve
Quick coupling
Adapter
