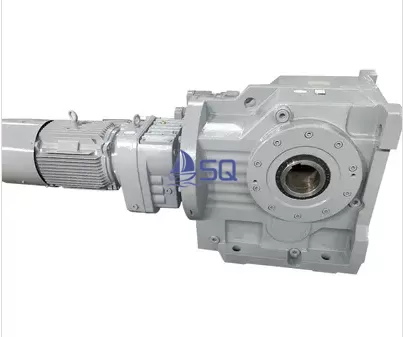

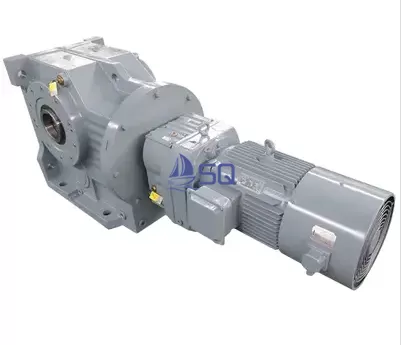

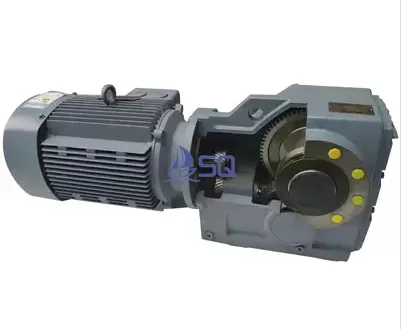

Helical-Bevel Gearmotor K Series

Series K - Helical bevel geared motor

Series K - Right angle helical bevel geared motors have high load carrying capacities, increased efficiency over worm units, quiet running and reliability.

Installation method and parameter table

The Advantage

High power density Wear-free Long service life > 90% gear unit efficiency Multi-stage gear unit for low output speeds two-stage or three-stage versions Reduced backlash option for three-stage version Helical-bevel Gearmotor K Series

K series (two-stage / three-stage)

Helical-bevel gear units  provide a high degree of efficiency of over 90% in both torque directions and at all input speeds. With performance designed to last – high-endurance gearing enables high-torque, wear-free operation. With our remarkably efficient helical-bevel gearmotors, you have energy-efficient angular gear drives at your fingertips. As they also have a long maintenance-free service life, they can be used in every application with AC asynchronous motors, asynchronous and synchronous servomotors. A reduced backlash version is available for precise positioning tasks for K37 to K187.

Helical Gearmotor R Series

R series (two-stage and three-stage) Our complete range of helical gearmotors provides the optimum size and power solution for every drive task. And for applications where weight is an issue, our multi-stage gear units provide something special: Thanks to their die-cast aluminum design, the models R07, R17 and R27 are three particularly efficient lightweights – ideal as satellite drives and for use in light machine constructions. Reduced backlash helical gear units are also available for particularly precise requirements. ;

Available versions

Foot-mounted or flange-mounted B5 or B14 Flange-mounted Solid or hollow shaft Hollow shaft with keyed connection, shrink disk, splined hollow shaft
