Inflatable/Pneumatic Rubber Fender

Category:Port & Dredging Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Get a factory quote now, we can supply according to your requirement.

China Inflatable/Pneumatic Rubber Fender Introduction:

Specifications

Brand Name

Shanqing

HS Code

4016940000

Unit

Customed Made

MOQ

Delivery Period

30 days

Description

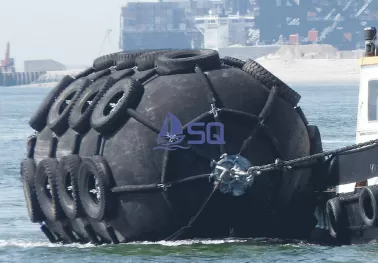

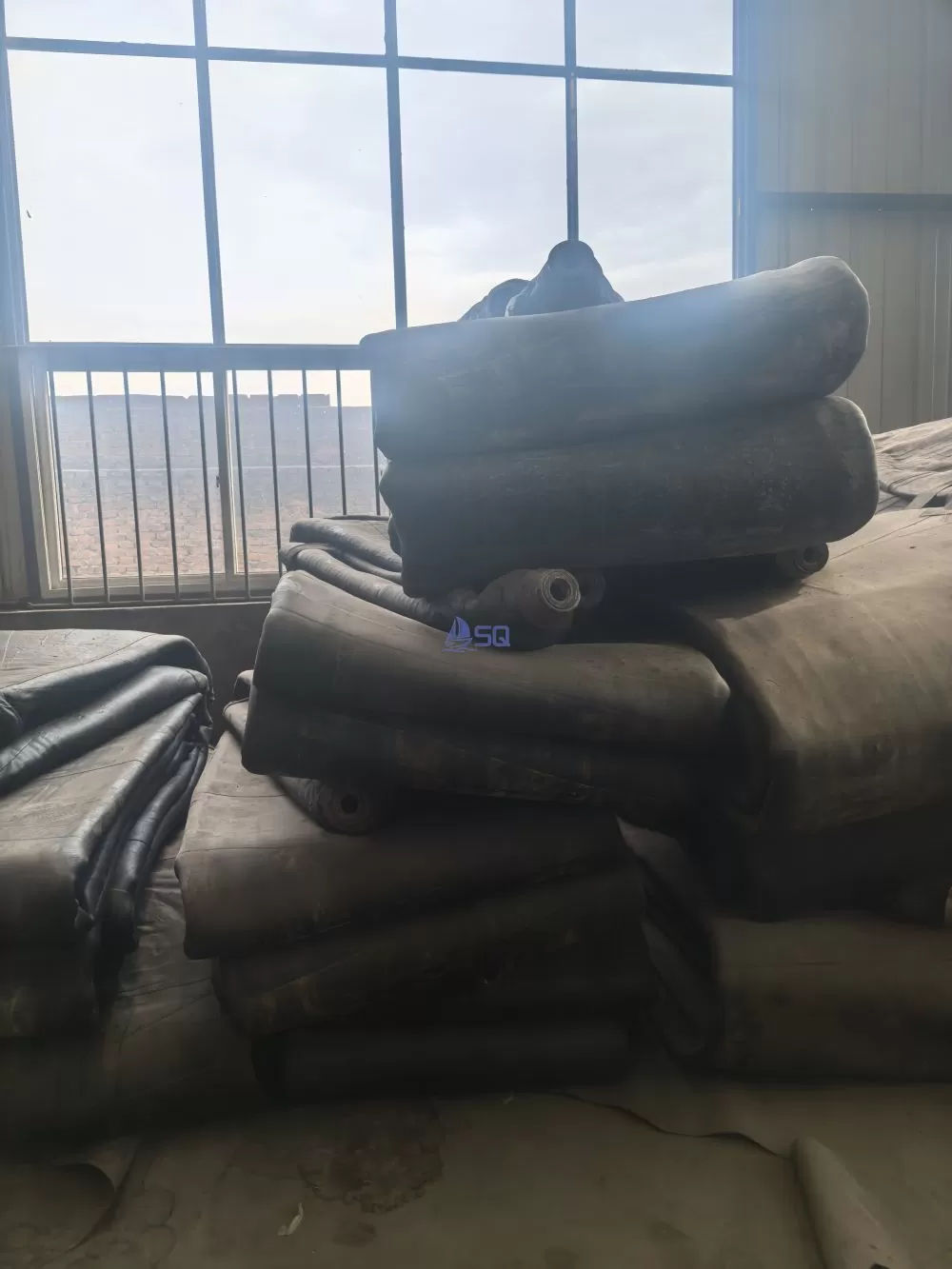

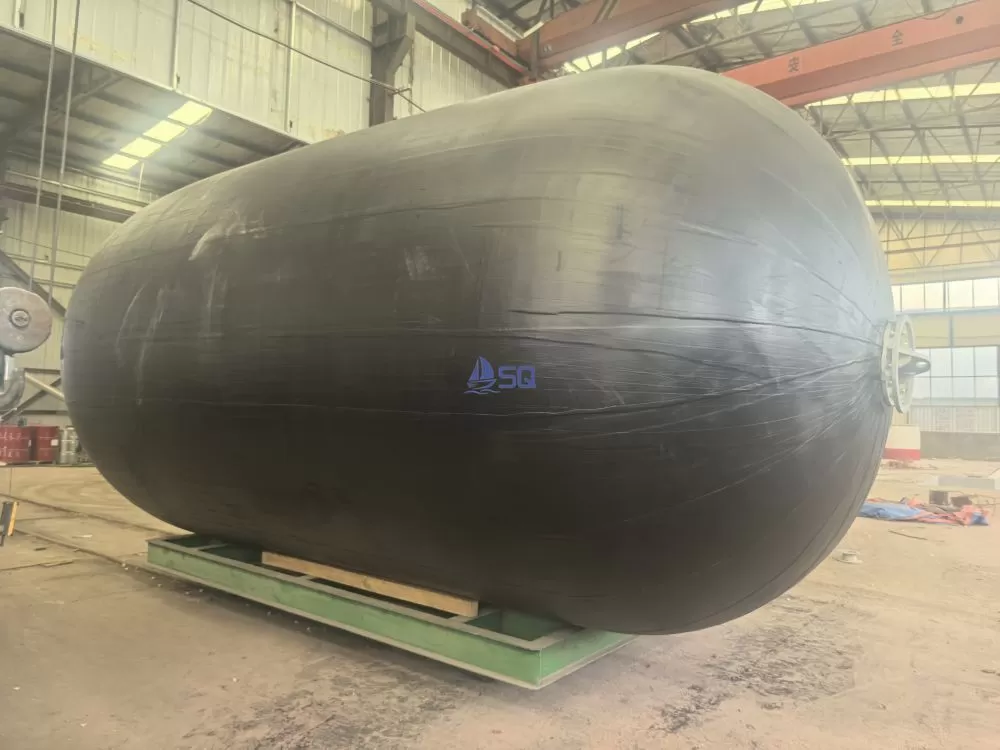

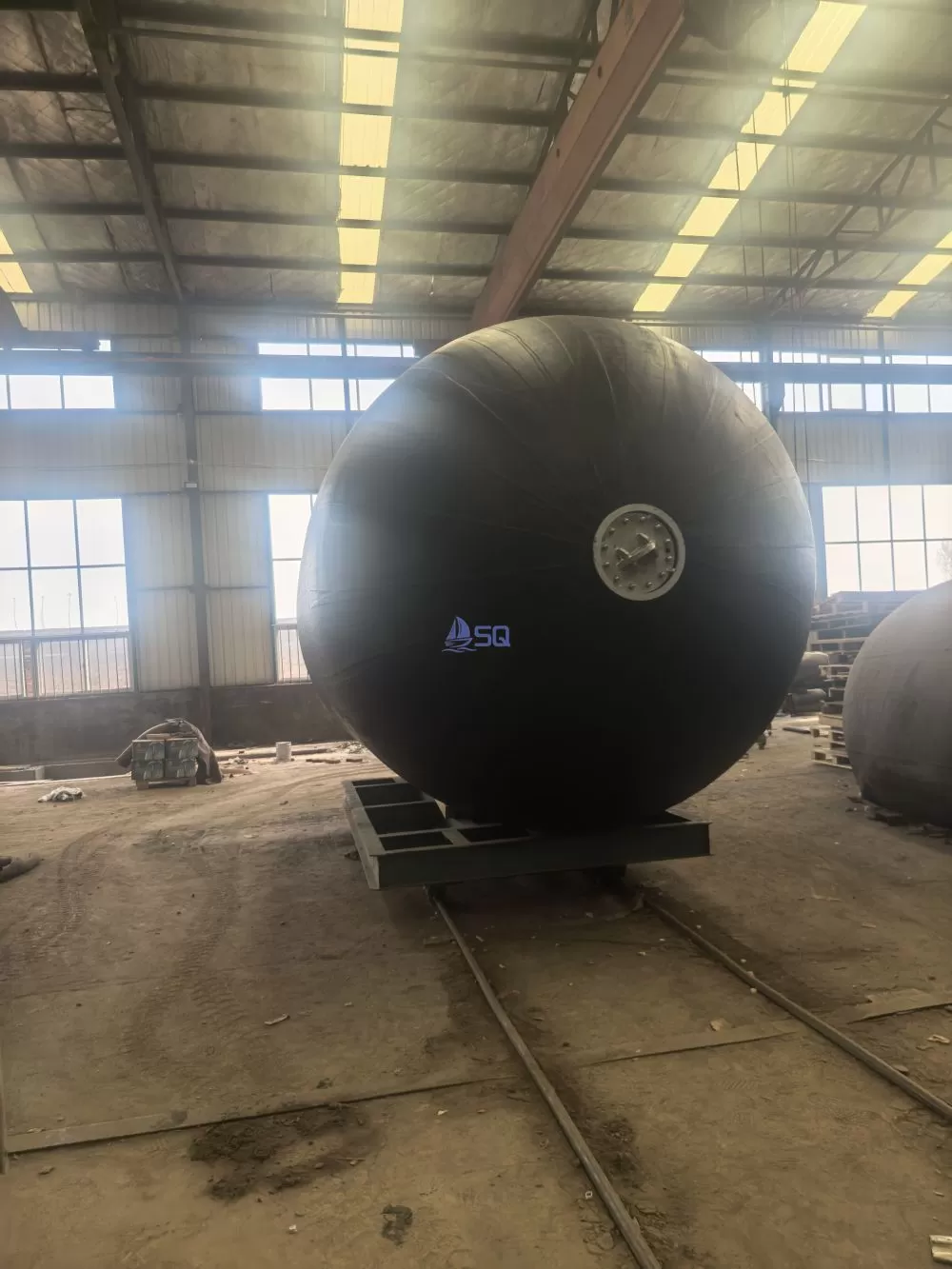

Inflatable Fender uses compressed air as a buffering medium to provide a softer collision avoidance effect when ships approach. The product is a rubber sealed container made of hanging rubber curtain fabric as the skeleton material. The fender is filled with compressed air and can float on the water surface, serving as an important buffer medium for ST (ship and ship berthing) and STD (ship and dock berthing). At the same time, inflatable rubber fenders can absorb the impact energy of ship movement, reduce the ship's recoil force, and greatly improve the safety of ship berthing.

TECHNICAL PARAMETERS OF INFLATABLE FENDERS
Item Size(DxL)mm	Flangeless Disk D (mm)	Tyre Diameter D (mm)	Sleeve Shackle D (mm)	Sleeve Chain (mm)	Unit Weight (KG)	Flange Shackle D (mm)
500x1000	120	350	8	8	60	12
600x1000	120	350	8	8	60	12
700x1500	160	300	8	10	120	14
1000x1500	160	450	8	10	180	16
1000x2000	200	500	8	10	200	16
1200x2000	200	600	8	10	230	16
1350x2500	260	600	10	12	480	16
1500x2500	260	600	10	12	500	16
1500x3000	260	600	10	12	560	16
1700x3000	260	600	10	12	600	16
2000x3000	300	650	12	13	900	16
2000x3500	300	750	12	13	1500	16
2500x4000	300	700	12	14	1600	18
2500x5500	300	700	12	14	2000	18
3300x4500	400	700	12	14	3000	18
3300x6500	400	700	12	14	3500	18
3300x10600	400	720	12	14	4500	18
4500x9000	600	750	14	16	5200	18
4500x12000	600	760	14	16	7300	18

PNEUMATIC 50 KPA FENDER SIZE AND PERFORMANCE REQUIREMENTS
Nominal size(DxL)	Initial internal pressure (Kpa)	Guarantrrd energyabsorption(GEA)	Reaction force atGEA deflection(R)	Hull presure(internalpressure)at GEAdeflection(p)
Nominal size(DxL)	Initial internal pressure (Kpa)	60±5%KJ	Tolerancet10%(KN)	Referencevalue(Kpa)
500x1000	50Kpa	6	64	132
600x1000	50Kpa	8	74	126
700x1500	50Kpa	17	137	135
1000x1500	50Kpa	32	182	122
1000x2000	50Kpa	45	257	132
1200x2000	50Kpa	63	297	126
1350x2500	50Kpa	102	427	130
1500x2500	50Kpa	134	499	131
1500x3000	50Kpa	153	597	132
1700x3000	50Kpa	191	639	128
2000x3000	50Kpa	265	750	122
2000x3500	50Kpa	308	875	128
2500x4000	50Kpa	663	1381	137
2500x5500	50Kpa	943	2019	148
3300x4500	50Kpa	1175	1884	130
3300x6500	50Kpa	1814	3015	146
3300x10600	50Kpa	3067	5257	158
4500x9000	50Kpa	4752	5747	146
4500x12000	50Kpa	6473	7984	154

PNEUMATIC 80 KPA FENDER SIZE AND PERFORMANCE REQUIREMENTS
Nominal size(DxL)	Initial internal pressure (Kpa)	Guarantrrd energyabsorption(GEA)	Reaction force atGEA deflection(R)	Hull presure(internalpressure)at GEAdeflection(p)
Nominal size(DxL)	Initial internal pressure (Kpa)	60±5%KJ	Tolerancet10%(KN)	Referencevalue(Kpa)
500x1000	80Kpa	8	85	174
600x1000	80Kpa	11	98	166
700x1500	80Kpa	24	180	177
1000x1500	80Kpa	45	239	160
1000x2000	80Kpa	63	338	174
1200x2000	80Kpa	88	390	166
1350x2500	80Kpa	142	561	170
1500x2500	80Kpa	179	630	172
1500x3000	80Kpa	214	761	174
1700x3000	80Kpa	267	840	168
2000x3000	80Kpa	356	955	160
2000x3500	80Kpa	430	1150	168
2500x4000	80Kpa	925	1815	180
2500x5500	80Kpa	1317	2653	195
3300x4500	80Kpa	1640	2746	171
3300x6500	80Kpa	2532	3961	191
3300x10600	80Kpa	4281	6907	208
4500x9000	80Kpa	6633	7551	192
4500x12000	80Kpa	9037	10490	202
