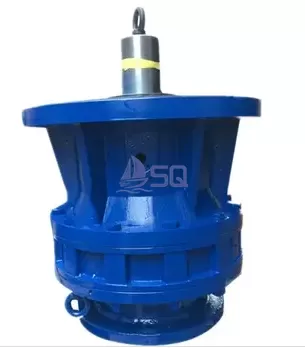

Inline-vertical Cycloid Reducer

Category:Engine Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Get a factory quote now, we can supply according to your requirement.

China Inline-vertical Cycloid Reducer Introduction:

Specifications

Brand Name

Shanqing

HS Code

Unit

Customed Made

MOQ

Delivery Period

5 days

Description

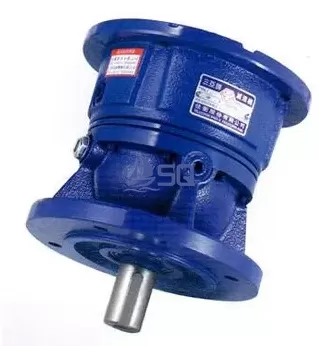

Flange-mounted Cycloid Reducer

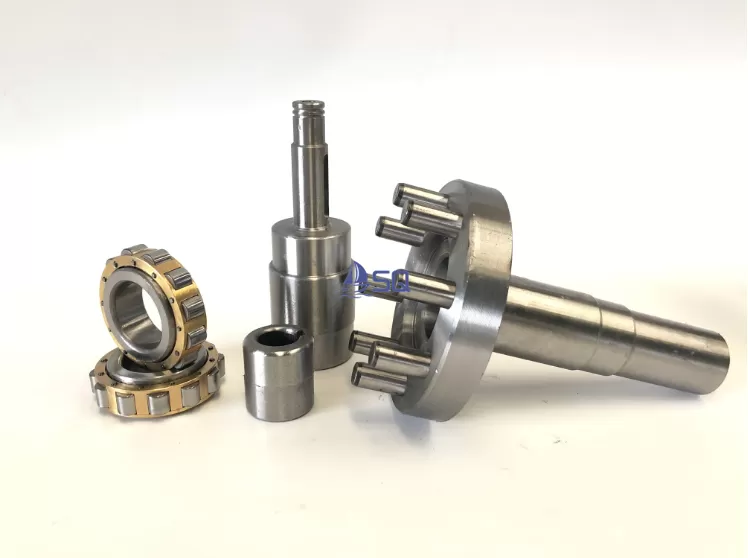

The Cycloid components operate in compression, not in shear. Unlike gear teeth with limited contact points, a Cycloid has two-thirds of its reduction components in contact at all times. This design enables Cycloid speed reducers and gearmotors to withstand shock loads exceeding 500% of their ratings, and provide exceptional performance, reliability and long life in the most severe applications.

Efficient, Compact

The Inline-vertical Cycloid Reducer design makes it a highly efficient, compact, torque transmitting reducer..

Parameters Table

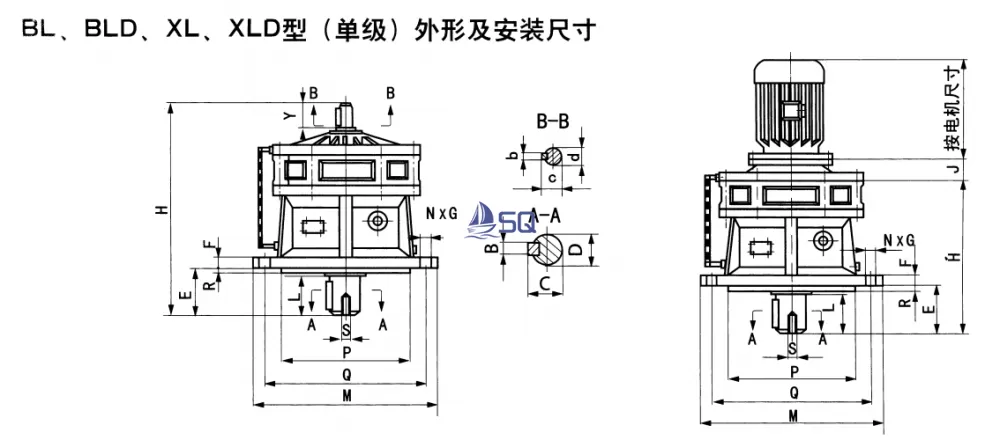

BL, BLD, XL, XLD type (single stage) outline and installation dimensions.

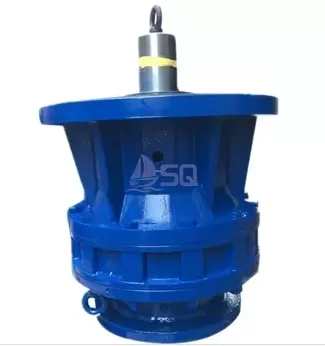

Figure 1-2 Appearance of single-stage vertical cycloid pinwheel planetary reducer

NO.

Dimensions

Installation size

Shaft end size

weight

BLD

（≈）

BLD

BL, BLD10—19No.

B10	214	165	190	39	10	11	4	140	160	3	M8	8	33	30	35	5	17	15	22	15	BL weight + motor weight
11	263	194	230	61	12	11	6	170	200	4	M8	10	38	35	46	6	20. 5	18	35	22
12	320	246	260	70	15	11	6	200	230		M8	14	48. 5	45	60		24. 5	22	40	43
13	390	294	340	80	20	13	6	270	310	5	M12	16	59	55	74	8	33	30	55	79
14	465	356	400	101	22	15	8	320	360	5	M12	20	74. 5	70	92	10	38	35	62	127
15	544	431	490	120	30	18	12	400	450	5	M16	25	95	90	113	14	48.5	45	70	200
16	668	528	580	139	35	22	12	460	520	8	M20	28	106	100	130	14	53. 5	50	80	400
17	791	594	650	182	40	22	12	520	590	10	M24	28	116	110	142	16	59	55	90	620
18	1065	814	880	210	50	38	12	680	800	10	M30	32	137	130	202	20	74. 5	70	120	1220
19	1462	1151	1160	370	60	39	12	900	1020	10	M42	45	190	180	330	25	95	90	150	2500

XL、XLD2—12No.

X2	209	159	180	42	12	12	6	130	160	3	M8	8	28	25	34	5	17	15	22	15	BL weight + motor weight
3	263	194	230	51	15	12	6	170	200	4	M8	10	38	35	46	6	20. 5	18	35	30
4	324	250	260	79	15	12	6	200	230	4	M8	14	48. 5	45	64	6	24. 5	22	40	43
5	427	331	340	93	20	12	6	270	310	4	M12	16	59	55	85	8	33	30	55	88
6	484	377	400	92	22	16	8	316	360	5	M12	18	69	65	81	10	38	35	62	130
7	514	406	430	114	22	18	8	345	390	5	M16	22	85	80	96	12	43	40	65	195
8	585	472	490	112	30	18	12	400	450	6	M16	25	95	90	110	14	48. 5	45	70	245
9	723	571	580	170	35	22	12	455	520	8	M20	28	106	100	132	14	53. 5	50	80	395
10	791	594	650	182	40	22	12	520	590	10	M24	28	116	110	142	16	59	55	90	620
11	1065	814	880	210	50	38	12	680	800	10	M30	32	137	130	202	20	74. 5	70	120	1220
12	1462	1151	1160	370	60	39	12	900	1020	10	M42	45	190	180	330	25	95	90	150	2500

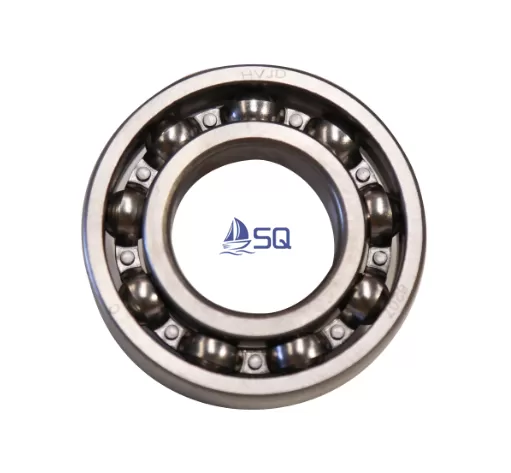

Product Details

Technical Information

The key to SPEED's Overhead Conveyor Drive''s matchless performance and reliability is that 67% of the reduction components are in contact at all times, compared to geared designs that use only limited tooth contact.

It is perfect for demanding applications in food and beverage processing, packaging, agricultural processing, and chemical and pharmaceutical industries.

Service

Welcome to consult China Inline-vertical Cycloid Reducer suppliers. We have more than 10 years of foreign trade supply experience and have provided high-quality shipping equipment to dozens of countries around the world. We provide you with high-quality services and preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
