Input module

Category:Engine Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Request a Quote

Get a factory quote now, we can supply according to your requirement.

China Input module Introduction:

Specifications

Brand Name

HS Code

Unit

PCE(Pieces)

Customed Made

MOQ

Delivery Period

30 days

Description

◆ Product Features

The non-polar two-bus design can be regarded as the same fire detector connecting to the alarm buswhich is convenient for construction and flexible in use.
The numbering of the input device by the encoder makes it possible to display the specific address and working status on the alarm controller and the fire display panel.
Use isolated power (bus power) to power the feedback section
Using an ASIC, stable and reliable operation

◆ Technical specifications

Technical standard	Meet the requirements of GB 16806-2006
Operating Voltage	DC18～26V
Input signal	Passive normally open contact (external termination resistance 4.7K)
Monitor current	≤300uA
Alarm current	≤1.5mA
Confirmation lamp (red)	Run/input action lights (red): Normally flash red, Always on when there is input, no light when there is fault
Line system	Two alarm buses: T+, T- (Non-polar)
Operating temperature	-10℃～+55℃
Relative humidity	≤95%（40℃）
Dimensions	86mm×40mm×86mm（L×W×H）
Weight	About 160g
Color	White

◆ Wiring diagram

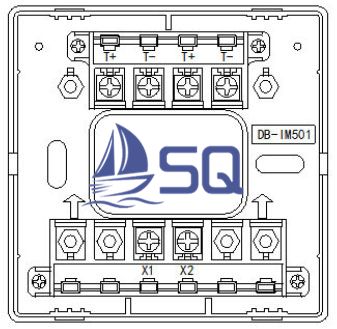

External terminal arrangement and description for IM501 Input module

Wiring instructions:

T+, T- : Alarm Bus (No polarity)
X1, X2 : Input passive signal (terminal resistance 4.7K)

Service

Welcome to consult China Input module suppliers. We have more than 10 years of foreign trade supply experience and have provided high-quality shipping equipment to dozens of countries around the world. We provide you with high-quality services and preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
