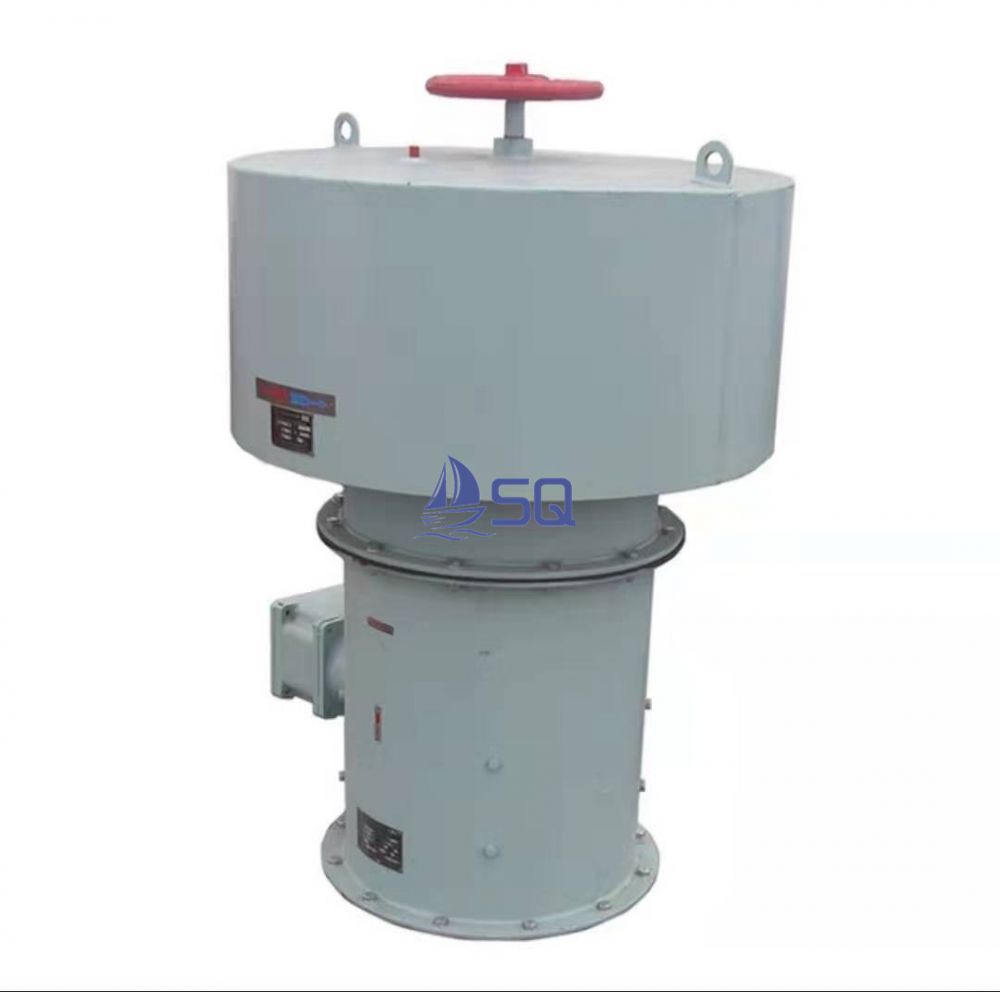

China JCZ series Marine Axial Flow Fan Introduction:

Specifications

Brand Name

HS Code

Unit

PCE(Pieces)

Customed Made

MOQ

Delivery Period

60 days

Description

1. General
JCZ/CZ series marine axial-flow fans (simply the fans)are capable of blowing air, such as ocean air containing salt vapor and corrosive air containing a small quantity of oil vapor. They are suitable for cabin air ventilation and exchange on oceangoing vessels. They are also applicable in other places that suit.
The fan is designed and manufactured according to the standard of GB11864-2008《Marine Axial Flow Fans》 and《The manufacture Rules of Sea-going Steel Ships》which approved by the Register of the People's Republic of China.
2. Characteristics
The Machine Casing can be opened.
Reverse rotation possible.
Good anti-corrosiveness.
Strong performance in anti-swing, vibration-proof and impact resistant
3. Structure type
The fan is manufactured with a built-in casing motor structure. The vane wheel is directly mounted on the motor shaft.
The vane wheel is made of anti-corrosive case aluminum alloy while the casing is made of welded common steel.
As desired, the casing can either be made into an integral one or an open type along the axial direction. For an opening case style: the vane wheel and the electromotor are to be installed on the casing so as to be convenient for on the-spot repair and the replacement of its parts.
The fan is made from the electromotor face and the vane wheel rotates clockwise. In use, allowing fans reverse rotation.
The fan can be matched with marine DC motor of 220V/380V/415V, 50Hz or 220V/440V/460V/480V, 60Hz.

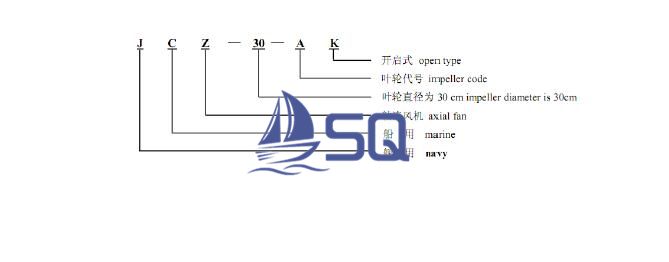

4. Model explanation

Main Property Parameters

型号 Type	流量 Volume of flow m3/h	全压 Total Pressure Pa	静压 Static Pressure Pa	转速 Speed r/min	电动机Motor			重量 Weight (kg)
型号 Type	流量 Volume of flow m3/h	全压 Total Pressure Pa	静压 Static Pressure Pa	转速 Speed r/min	型号 Type	功率 Power kW	频率 Freq Hz	重量 Weight (kg)
JCZ-20 CZ-20	600 800	110 80	90 40	2920	Y631-2-H	0.25	50	20
JCZ-20 CZ-20	800 1000	160 110	130 70	3500	Y712-2-H	0.55	60	20
JCZ-25 CZ-25	800 1200	160 140	140 110	2920	Y712-2-H	0.55	50	35
JCZ-25 CZ-25	1000 1500	220 200	200 160	3500	Y712-2-H	0.55	60	35
JCZ-30A CZ-30A	1200 1800	300 180-230	290 150-200	2920	Y801-2-H	0.75	50	45
JCZ-30A CZ-30A	1200 1800	400-500 320-420	390-490 290-390	3500	Y801-2-H	0.75	60	45
JCZ-30B CZ-30B	1200	160-210	150-200	2920	Y801-2-H	0.75	50	45
JCZ-30B CZ-30B	1200 1800	300 230	290 200	3500	Y801-2-H	0.75	60	45
JCZ-35A CZ-35A	3000 4500	440 250-290	390 150-200	2920	Y802-2-H	1.1	50	56
JCZ-35A CZ-35A	3000 4500	660 490-590	590 390-490	3500	Y90S-2-H	1.5	60	61
JCZ-35B CZ-35B	1800 3000	410 250-340	390 200-290	2920	Y801-2-H	0.75	50	56
	3000 4500	440-540 290	390-490 200	3500	Y802-2-H	1.1	60
	1200	160	150	1750	Y801-4-H	0.55	60
JCZ-40A CZ-40A	4500 6000	550-650 500	490-590 390	2920	Y90S-2-H	1.5	50	73
	3000	180-230	150-200	1750	Y801-4-H	0.55	60	68
	6000	700-790	590-690	3500	Y90L-2-H	2.2	60	76
JCZ-40B CZ-40B	3000 4500	520 350-450	490 290-390	2920	Y802-2-H	1.1	50	88
JCZ-45 CZ-45	6000 9000	500 350	435 200	2920	Y90L-2-H	2.2	50	90
JCZ-50A CZ-50A	6000	240	200	1460	Y90S-4-H	1.1	50	88
JCZ-50A CZ-50A	6000 9000	430 250-290	390 150-200	1750	Y90L-4-H	1.5	60	93
JCZ-50B CZ-50B	6000 9000	630-730 590	590-690 490	2920	Y90L-2-H	2.2	50	91
JCZ-50C CZ-50C	9000 12000	780 670	690 490	2920	Y112M-2-H	4	50	111
JCZ-50C CZ-50C	6000	240-330	200-290	1750	Y90S-4-H	1.1	60	88
JCZ-60A CZ-60A	9000 12000	250-340 240	200-290 150	1460	Y90L-4-H	1.5	50	106
JCZ-60A CZ-60A	9000 12000 15000	440 280-380 270	390 200-290 150	1750	Y100L1-4-H	2.2	60	113
JCZ-70A CZ-70A	12000 15000 18000	450 370 250-290	390 290 150-200	1460	Y100L2-4-H	3	50	143
JCZ-70A CZ-70A	15000 18000 21000	570-670 490 430	490-590 390 290	1750	Y132S-4-H	5.5	60	173

型号 Type	流量 Volume of flow m3/h	全压 Total Pressure Pa	静压 Static Pressure Pa	转速 Speed r/min	电动机Motor			重量 Weight (kg)
型号 Type	流量 Volume of flow m3/h	全压 Total Pressure Pa	静压 Static Pressure Pa	转速 Speed r/min	型号 Type	功率 Power kW	频率 Freq Hz	重量 Weight (kg)
JCZ-70B CZ-70B	9000 12000 15000	420 250-350 230	390 200-290 150	1460	Y100L1-4-H	2.2	50	139
JCZ-70B CZ-70B	12000 15000 18000	550 370-470 290	490 290-390 200	l750	Y112M-4-H	4	60	148
JCZ-75A CZ-75A	15000 18000 21000 24000	420 420 350 235	370 340 240 100	1460	Y112M-4-H	4	50	173
JCZ-75A CZ-75A	18000 21000 24000	670 600 530	590 490 390	1750	Y132M-4-H	7.5	60	21l
JCZ-75B CZ-75B	18000 21000 24000 27000	480 450 390 330	400 340 250 160	1460	Y132S-4-H	5.5	50	173
	21000 24000 27000 30000	670 600 530 360-460	590 490 390 200-290	1460	Y132M-4-H	7.5	50	273
JCZ-80A CZ-80A	21000 24000	270 250	200 150	1160	Y132M1-6-H	4	60	265
	24000 27000 30000	890 820 760	780 690 590	1750	Y160M-4-H	11	60	320
JCZ-80B CZ-80B	18000 21000 24000 27000	550 470 400 280-330	490 390 290 150-200	1460	Y132S-4-H	5.5	50	260
JCZ-80B CZ-80B	21000 24000 27000	760 700 630	690 590 490	1750	Y132M-4-H	7.5	60	273
JCZ-90A CZ-90A	24000 27000 30000 33000	660-760 570 490 320-420	590-690 490 390 200-290	1460	Y132M-4-H	7.5	50	311
	24000 27000 33000	360 270-370 270	290 190-290 150	1160	Y132S-6-H	5.5	60	314
	30000 33000 36000	880 810 740	780 690 590	1750	Y160L-4-H	15	60	374
JCZ-90B CZ-90B	27000 30000 33000 36000	770 690 600 540	690 590 475 390	1460	Y160M-4-H	1l	50	353
JCZ-90B CZ-90B	36000 39000 42000	930 860 810	780 690 610	1750	Y180M-4-H	18.5	60	412
JCZ-90C CZ-90C	30000 33000 36000	880 810 640-740	780 690 490-590	1460	Y160L-4-H	15	50	374
JCZ-90C CZ-90C	30000 33000 36000	390-490 420 290-340	290-390 290 140-190	1160	Y160M-6-H	7.5	60	349
JCZ-100A CZ-100A	33000 36000 39000	420 350 310	340 250 190	970	Y160M-6-H	7.5	50	335
JCZ-100A CZ-100A	39000 43000 48000	610 510 430	490 370 250	1160	Y160L-6-H	11	60	450

型号 Type	流量 Volume of flow m3/h	全压 Total Pressure Pa	静压 Static Pressure Pa	转速 Speed r/min	电动机Motor			重量 Weight (kg)
型号 Type	流量 Volume of flow m3/h	全压 Total Pressure Pa	静压 Static Pressure Pa	转速 Speed r/min	型号 Type	功率 Power kW	频率 Freq Hz	重量 Weight (kg)
JCZ-100B CZ-100B	39000 42000 48000	610 570 450	490 430 270	1460	Y160M-4-H	11	50	340
JCZ-100B CZ-100B	46000 50000 57000	840 790 670	680 600 420	1750	Y180M-4-H	18.5	60	450
JCZ-100C CZ-100C	42000 48000 54000	730 670 580	590 490 360	1460	Y160L-4-H	15	50	404
JCZ-100C CZ-100C	50000 57000 60000	1040 960 870	840 705 595	1750	Y180L-4-H	22	60	379
JCZ-100D CZ-100D	33000 39000 45000	820 730 630	740 610 470	1460	Y160L-4-H	15	50	442
JCZ-100D CZ-100D	46000 48000 54000	1020 980 880	860 800 660	1750	Y180L-4-H	22	60	450
JCZ-110A CZ-110A	42000 48000 54000 60000	580 510 340-440 330	490 390 200-290 150	970	Y180L-6-H	15	50	515
JCZ-110A CZ-110A	54000 60000	740 680	590 490	1160	Y200L1-6-H	18.5	60	540
JCZ-110B CZ-110B	42000 48000	280-380 260-310	200-290 150-200	970	Y160M-6-H	7.5	50	439
JCZ-110B CZ-110B	48000 54000 60000	510 440 380	390 290 200	1160	Y160L-6-H	11	60	467
JCZ-110C CZ-110C	42000 48000 54000	870 800 740	780 690 590	1460	Y180M-4-H	18.5	50	502
JCZ-110C CZ-110C	50000 57000 65000	1260 1150 1050	1130 980 830	1750	Y200L-4-H	30	60
JCZ-120A CZ-120A	60000 72000	420 330-380	290 150-200	970	Y180L-6-H	15	50	625
JCZ-120A CZ-120A	72000 84000	580 450-550	390 200-290	1160	Y200L1-6-H	18.5	60	650
JCZ-120B CZ-120B	60000 72000 84000	620 580 450-550	490 390 200-290	970	Y200L1-6-H	18.5	50	650
JCZ-120B CZ-120B	72000 86000 100000	890 810 690	700 540 320	1160	Y225M-6-H	30	60
JCZ-140A CZ-140A	72000 84000	690 530-630	590 390-490	970	Y200L2-6-H	22	50	780
JCZ-140A CZ-140A	86000 100000 115000	960 850 710	820 650 450	1160	Y225M-6-H	30	60
JCZ-140B CZ-140B	96000 115000	510 450	330 190	970	Y200L2-6-H	22	50
JCZ-140B CZ-140B	115000 138000	720 650	460 270	1160	Y225M-6-H	30	60

型号 Type	D1	D2	D3	L	n	d
JCZ-20 CZ-20	200	245	265	300	8	10
JCZ-25 CZ-25	250	295	315	300	8	10
JCZ-30 CZ-30	300	345	375	400	8	12
JCZ-35 CZ-35	350	395	425	400	8	12
JCZ-40 CZ-40	400	445	475	450	12	12
JCZ-45 CZ-45	450	495	545	450	12	12
JCZ-50 CZ-50	500	560	595	500	12	15
JCZ-60 CZ-60	600	660	695	550	12	15
JCZ-70 CZ-70	700	760	795	600	16	15
JCZ-75 CZ-75	750	820	860	600	16	19
JCZ-80 CZ-80	800	870	910	755	16	19
JCZ-90 CZ-90	900	970	1010	850	16	19
JCZ-100 CZ-100	1000	1070	1110	900	20	19
JCZ-110 CZ-110	1100	1170	1210	1000	20	19
JCZ-120 CZ-120	1200	1280	1330	1000	20	24

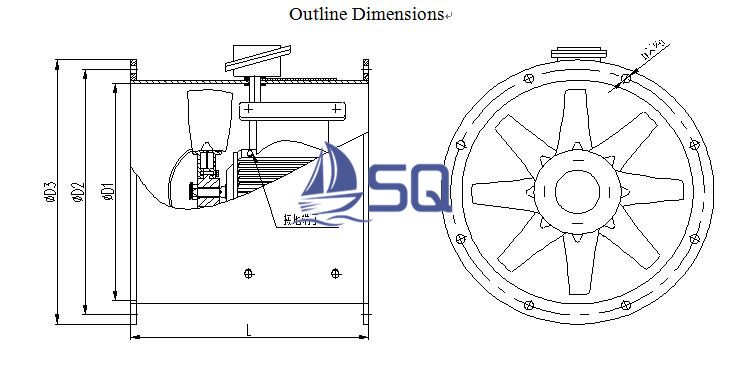

JCZ-140 CZ-140	1400	1480	1530	1000	20	24
