LDG Electromagnetic Flowmeter
Typical applications: Conducting liquids such as sewage, chemical liquids and tap water
Product Features
•The measurement is not affected by changes in density, viscosity, temperature, pressure, and conductivity of the fluid.
•There is no blocking part and pressure loss in the measuring tube. Straight pipe sections have lower requirements. Unique adaptability to
measuring slurries.
•Reasonable selection of electrode and lining materials. That is, they have good corrosion resistance and wear resistance.
•Full digital processing, strong anti-interference ability, reliable measurement, high precision and wide flow measurement range.
•Ultra-low EMI switching power supply, suitable for large power supply voltage variation and good anti-EMI performance.
•The product adopts 16-bit embedded microprocessor, which has fast operation speed, high precision and low frequency rectangular wave
excitation. And the excitation frequency is programmable, which improves the stability of flow measurement and reduces power
consumption.
•The product adopts SMD devices and surface mount technology (SMT), which has high circuit reliability.
•There are no moving parts and flow blocking parts in the pipeline. Therefore, there is almost no additional pressure loss in the
measurement.
•The range can be modified online on site according to the actual needs of the user.
•High-definition LCD with backlight and full Chinese menu to operate. The product is easy to apply and operate. Therefore, it is easy for
relevant personnel to learn.
•With digital communication signal output such as RS48S, RS232, Hart and Modbus Profibus-DP (optional).
•With self-test and self-diagnosis function.
•With the function of recording the total amount of hours. The product records the total flow in hours, and it can measure by different
time segment (optional).
•There are three calculators inside, which can display the forward cumulant, the reverse cumulant and the difference cumulative amount
respectively. There is a power-down clock inside, which can record 16 power-down times (optional).
•Infrared handheld operator, with 11SKHZ communication rate, long-distance non-contact operation of all functions of the converter
(optional)

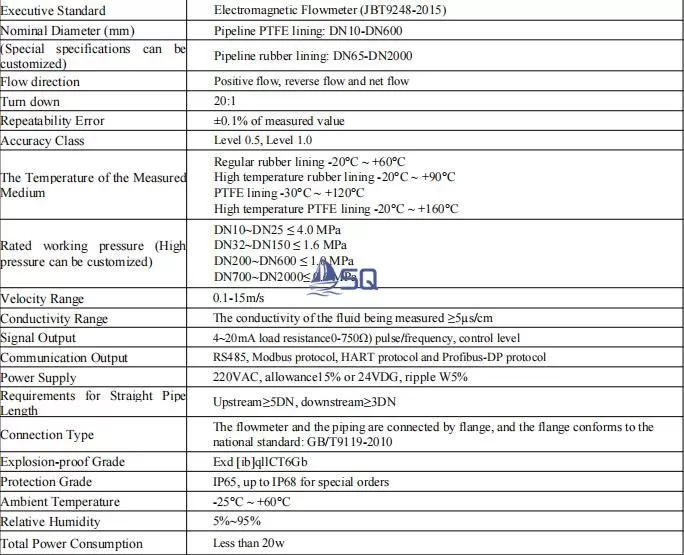

Technical Parameters
