China Marine Connector Dn16 DIN 16kg Lapped Falnges with Collar Flange Introduction:
Specifications
Description
16Kg/Cm2-DN10 DIN2576 TS 816/2
Flange Type
We can provide Weld Neck Flange,Slip On Flange,Plate Flange,Blind Flange,Socket Weld Flange,Threaded Flange,Lap Joint Flange,LWN Flange,Orifice Flange,Spectacle Blind,Spades and Ring Spacers etc.
Size
Size can be made 1/2'' to 192'',DN15-DN4800

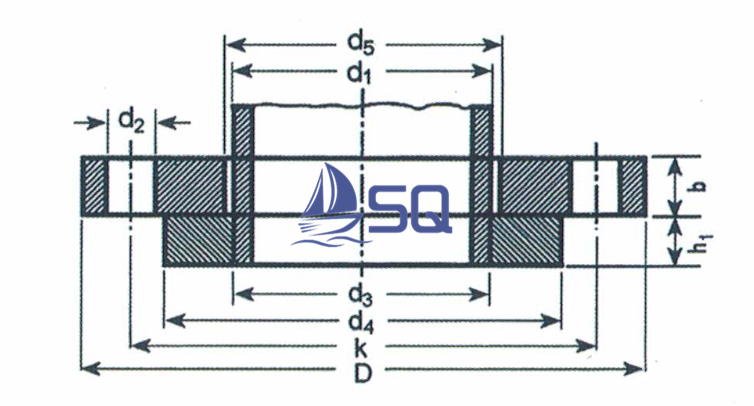

16Kg/Cm2 Diagram and Specification
![](http://www.shanqingtrading.com/public/upfiles/202001/b1]m6aa$8y$gvdxq0(b1)%7Dq.png)

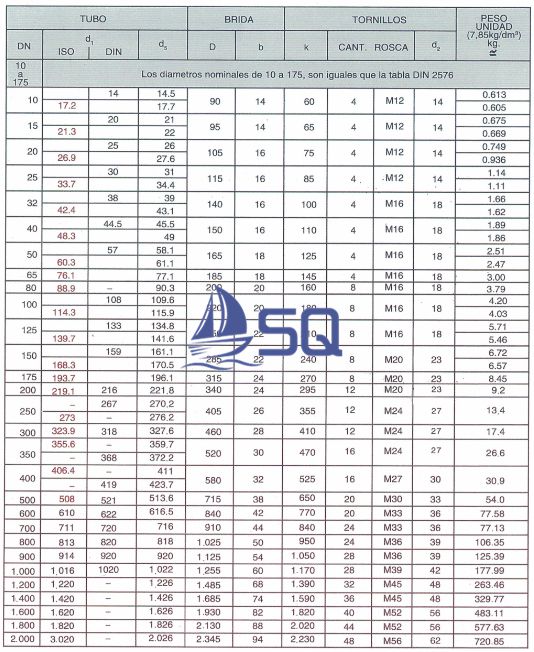

Specification(Unit:mm)
![](/public/upfiles/202001/t]qxe`{8jy51gmah}]le2$4.jpg)
Note:
1.Flange of parenthesized nominal diameter had letter not be used.
2.The facing of flanges shall conform to KS B1509(JIS B2202)1984.
3.Nominal diameter over 1000 is manufacturer's standard.
