China Marine Connector Dn64 DIN 64kg Lapped Falnges with Collar Flange Introduction:
Specifications
Description
64Kg/Cm2-DN10 DIN2576 TS 816/2
Flange Type
We can provide Weld Neck Flange,Slip On Flange,Plate Flange,Blind Flange,Socket Weld Flange,Threaded Flange,Lap Joint Flange,LWN Flange,Orifice Flange,Spectacle Blind,Spades and Ring Spacers etc.
Size
Size can be made 1/2'' to 192'',DN15-DN4800

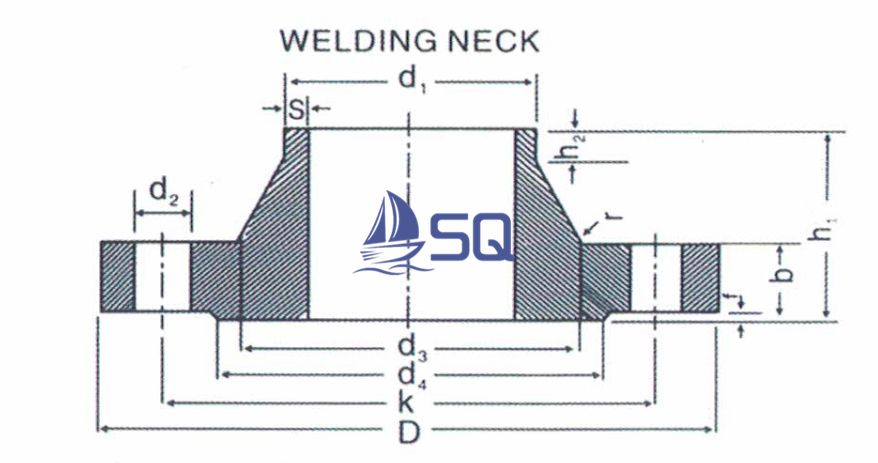

64Kg/Cm2 Diagram and Specification

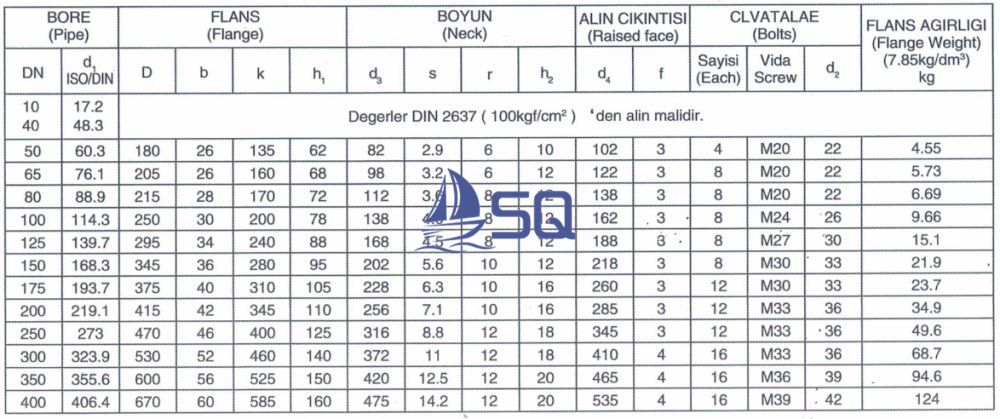

Specification(Unit:mm)
.jpg)
$d85c}5mcj%n.png)
Note:
1.Flange of parenthesized nominal diameter had letter not be used.
2.The facing of flanges shall conform to KS B1509(JIS B2202)1984.
3.Nominal diameter over 1000 is manufacturer's standard.
Service
Welcome to consult China Marine Connector Dn64 DIN 64kg Lapped Falnges with Collar Flange suppliers. We have more than 10 years of foreign trade supply experience and have provided high-quality shipping equipment to dozens of countries around the world. We provide you with high-quality services and preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
