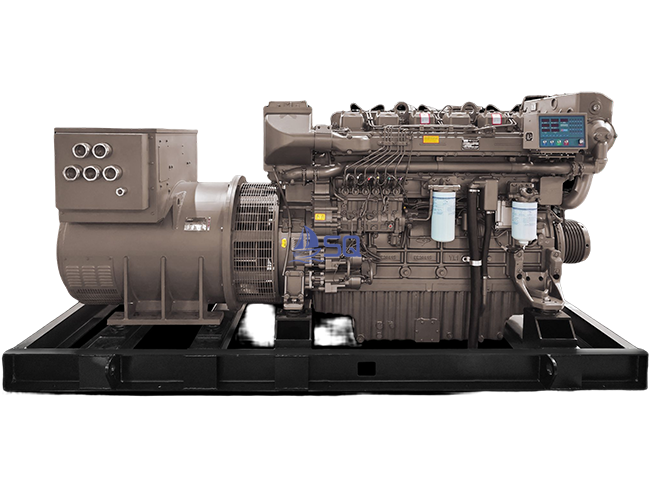

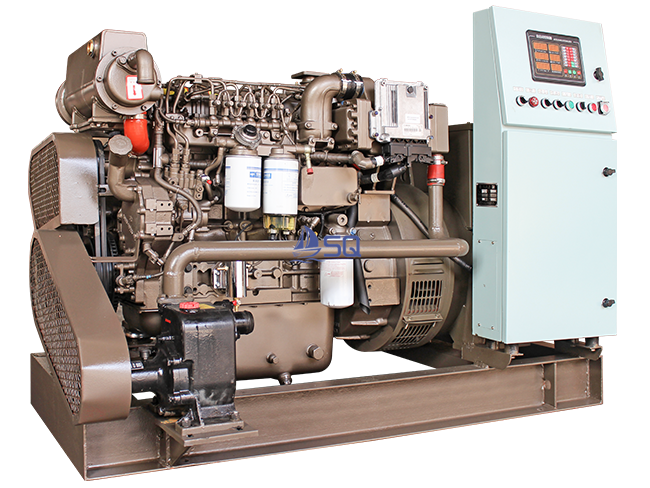

30kW~600kWPower range
|
Name |
Main Technical Parameters |
Name |
Main Technical Parameters |
|||||||||||
|
Genset model |
CCFJ30J-W4 | CCFJ50J-W3 | CCFJ64J-W2 |
Genset model |
CCFJ75J-W2 | CCFJ90J-W1 | CCFJ100J-W3 | |||||||
|
Power supply type |
Three-phase AC |
Power supply type |
Three-phase AC |
|||||||||||
|
Rated power (kw) |
30 | 50 | 64 |
Rated power (kw) |
75 | 90 | 100 | |||||||
|
Rated voltage (V) |
400 | 400 | 400 |
Rated voltage (V) |
400 | 400 | 400 | |||||||
|
Rated current (A) |
54.1 | 62.5 | 115.5 |
Rated current (A) |
135.3 | 162.4 | 180.4 | |||||||
|
Rated frequency (Hz) |
50 |
Rated frequency (Hz) |
50 | |||||||||||
|
Rated power factor COSφ |
0.8（Lag） |
Rated power factor COSφ |
0.8（Lag） | |||||||||||
|
Rated speed (r/min) |
1500 |
Rated speed (r/min) |
1500 | |||||||||||
|
Absolute value of steady-state voltage regulation (%) |
≤0.5 |
Absolute value of steady-state voltage regulation (%) |
≤0.5 | |||||||||||
|
steady-state voltage deviation (%) |
≤±2.5 |
steady-state voltage deviation (%) |
≤±2.5 | |||||||||||
|
Transient voltage deviation % |
Sudden unloading 60% Rated current |
≤+20 | Transient voltage deviation % | Sudden unloading 60% Rated current | ≤+20 | |||||||||
|
Sudden load 60% rated current |
≤-15 | Sudden load 60% rated current | ≤-15 | |||||||||||
|
Voltage stabilization time (s) |
≤1.5 |
Voltage stabilization time (s) |
≤1.5 | |||||||||||
|
Sinusoidal distortion rate of voltage waveform(%) |
≤5 |
Sinusoidal distortion rate of voltage waveform(%) |
≤5 | |||||||||||
|
Voltage fluctuation rate (%) |
≤±1 | Voltage fluctuation rate (%) | ≤±1 | |||||||||||
| Insensitivity (%) | ≤0.5 | Insensitivity (%) | ≤0.5 | |||||||||||
|
Speed fluctuation rate (%) |
≤0.5 | Speed fluctuation rate (%) | ≤0.5 | |||||||||||
|
Steady-state speed regulation (%) |
≤5 |
Steady-state speed regulation (%) |
≤5 | |||||||||||
| Transient speed difference(%) | Sudden load 0-50% | ≤10 | Transient speed difference(%) | Sudden load 0-50% | ≤10 | |||||||||
| Sudden load 50-100% | ≤10 | Sudden load 50-100% | ≤10 | |||||||||||
| Sudden unloading 100%-0 | ≤10 | Sudden unloading 100%-0 | ≤10 | |||||||||||
| Transient speed regulation stabilization time (s) | ≤5 | Transient speed regulation stabilization time (s) | ≤5 | |||||||||||
|
Fuel consumption rate under rated conditions (g/(kW·h)) |
≤230 |
Fuel consumption rate under rated conditions (g/(kW·h)) |
≤230 | |||||||||||
|
Specific oil consumption (g/(kW·h)) |
≤0.35 |
Specific oil consumption (g/(kW·h)) |
≤0.3 | |||||||||||
|
Fuel grade |
Summer: 0#, 10# light diesel of GB 19147-2016 premium grade or first grade |
Fuel grade |
Summer: 0#, 10# light diesel of GB 19147-2016 premium grade or first grade |
|||||||||||
|
Winter: 0#, -10#, -20# and -35# light diesel of GB 19147-2016 premium grade or first grade (selected based on the ambient temperature) |
Winter: 0#, -10#, -20# and -35# light diesel of GB 19147-2016 premium grade or first grade (selected based on the ambient temperature) |
|||||||||||||
|
Oil grade |
Summer: 40CF, 15W/40CF |
Oil grade |
Summer: 40CF, 15W/40CF |
|||||||||||
|
Winter: 30CD, 10W/30CD or other diesel engine oil that is not inferior to Grade CF in GB 11122-2006 and suitable for the environment |
Winter: 30CD, 10W/30CD or other diesel engine oil that is not inferior to Grade CF in GB 11122-2006 and suitable for the environment |
|||||||||||||
|
Start mode |
Electric start |
Start mode |
Electric start |
|||||||||||
|
Cooling mode |
Internal circulation:Closed circulating water cooling,External circulation,Open water cooling |
Cooling mod |
Internal circulation:Closed circulating water cooling,External circulation,Open water cooling | |||||||||||
|
Connection mode of motor winding |
Three-phase four-wire |
Connection mode of motor winding |
Three-phase four-wire |
|||||||||||
|
Operating mode of genset |
Continuous |
Operating mode of genset |
Continuous |
|||||||||||
|
Operating environment conditions |
Ambient temperature |
45°C |
Operating environment conditions |
Ambient temperature |
45°C | |||||||||
|
Outboard water temperature |
32°C |
Outboard water temperature |
32°C | |||||||||||
|
Inclination angle |
Hell: 15°; roll: 22.5°; trim: 7.5°; pitch: 10° |
Inclination angle |
Hell: 15°; roll: 22.5°; trim: 7.5°; pitch: 10° |
|||||||||||
|
Temperature rise |
Thermal classification A |
55°C |
Temperature rise |
Thermal classification A |
55°C | |||||||||
|
Measurement method R |
Measurement method R |
|||||||||||||
|
Short circuit |
The alternator and its excitation system can maintain at least 3 times the rated current for at least 2s under steady-state short-circuit conditions. |
Short circuit |
The alternator and its excitation system can maintain at least 3 times the rated current for at least 2s under steady-state short-circuit conditions. |
|||||||||||
|
Overload |
50% overcurrent; 2 min |
Overload |
50% overcurrent; 2 min |
|||||||||||
|
Fuel engine model |
YC4A55Z-C22 | YC4A85Z-C22 | YC4A110L-C22 |
Fuel engine model |
YC4A120L-C22 | YC4A145L-C22 | YC4A165L-C22 | |||||||
|
Rated power of diesel engine (kW) |
40 | 63 | 80 |
Rated power of diesel engine (kW) |
90 | 106 | 120 | |||||||
|
Alternator model |
SB-HW4.D-30 （SAE1-14） |
SB-HW4.D-50 （SAE1-14） |
SB-HW4.D-64 （SAE1-14） |
Alternator model |
SB-HW4.D-75 （SAE2-11.5） |
SB-HW4.D-90 （SAE2-11.5） |
SB-HW4.D-100 （SAE2-11.5） |
|||||||
|
Rated power of motor (kW) |
30 | 50 | 64 |
Rated power of motor (kW) |
75 | 90 | 100 | |||||||
|
Genset weight (kg) |
850 | 920 | 995 |
Genset weight (kg) |
1036 | 1078 | 1103 | |||||||
|
Dimension (L × W × H) mm |
1557×850×989 | 1672×850×989 | 1749×850×989 |
Dimension (L × W × H) mm |
1750×865×1044 | 1848×865×1044 | 1848×865×1044 | |||||||
|
Note: Dimension (L*W*H) may vary with the configuration. |
||||||||||||||
