Marine Industry 1kg JIS Ks F 7805 Slip-on Flange

Category:Marine Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Request a Quote

Get a factory quote now, we can supply according to your requirement.

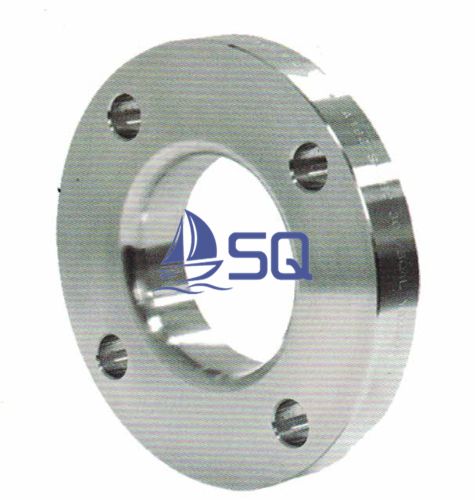

China Marine Industry 1kg JIS Ks F 7805 Slip-on Flange Introduction:

Specifications

Brand Name

HS Code

Unit

Customed Made

MOQ

Delivery Period

Description

1K KS V 7815 JIS F 7805 SLIP-ON FLANGES
Flange Type
We can provide Weld Neck Flange,Slip On Flange,Plate Flange,Blind Flange,Socket Weld Flange,Threaded Flange,Lap Joint Flange,LWN Flange,Orifice Flange,Spectacle Blind,Spades and Ring Spacers etc.
Size
Size can be made 1/2'' to 192'',DN15-DN4800

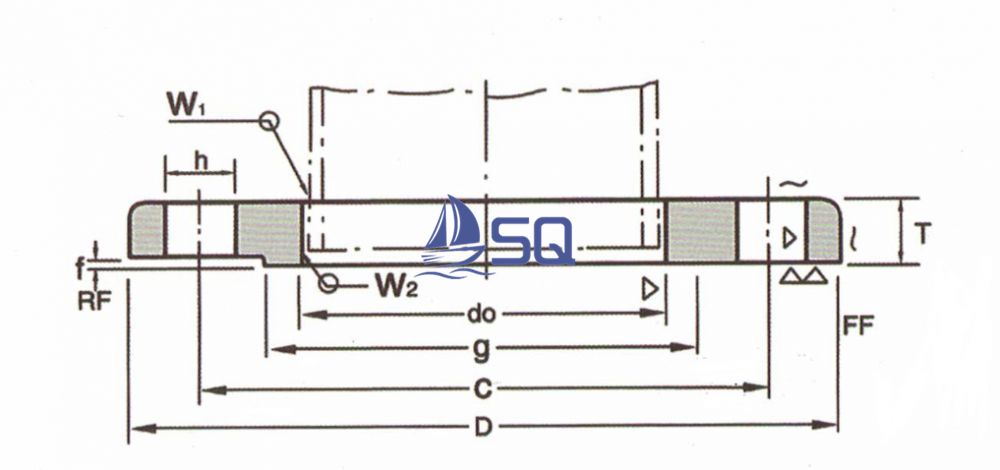

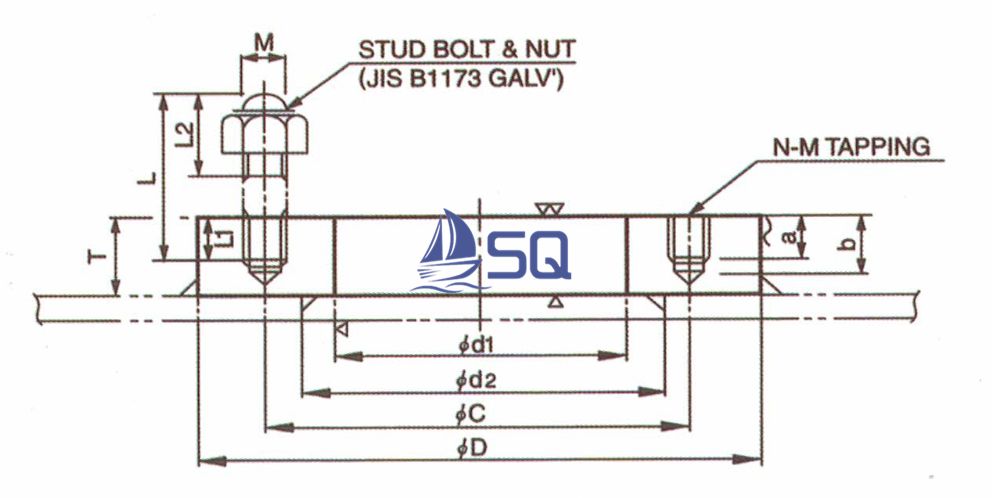

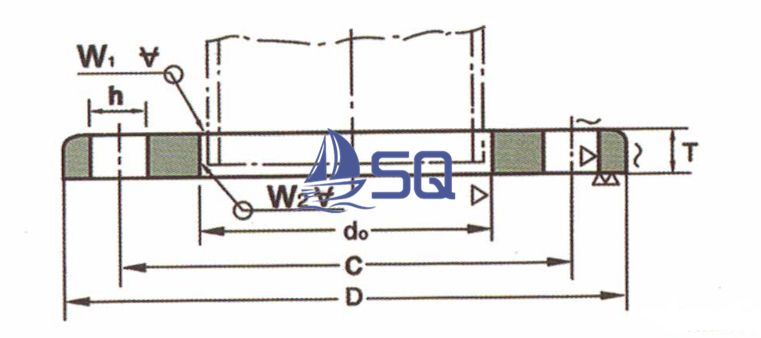

1Kg/Cm² Diagram and Specification

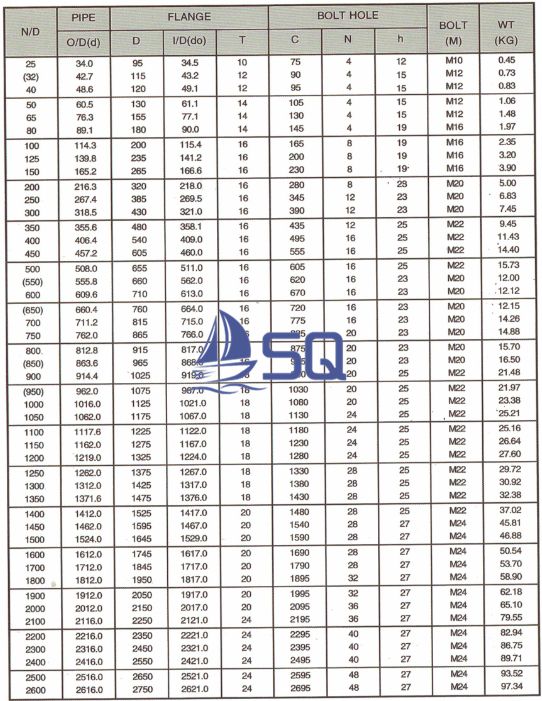

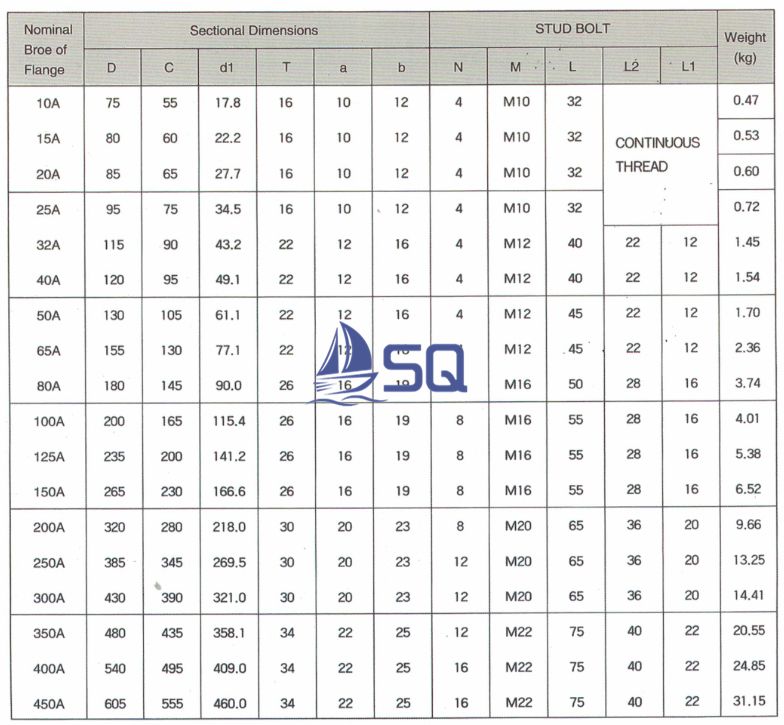

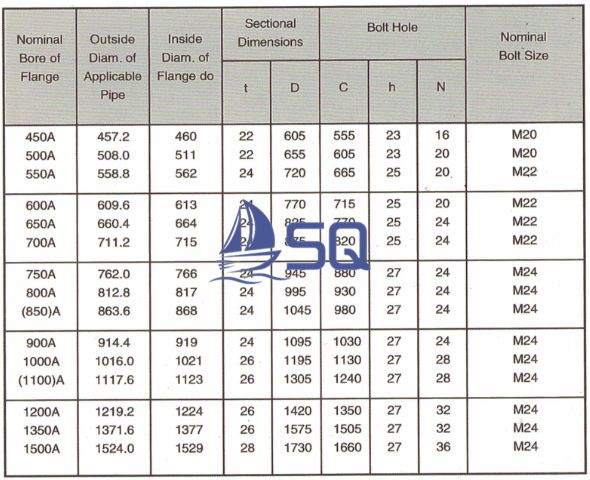

Specification(Unit:mm)

Note:
1.As far as possible,nominal diameter in parenthesis should be avoid from use.
2.The diamensionlal tolerancer shall confirm to JIS B2203.
3.The Flange gasket surface is bassed on large raised facing specified in JIS B2202.But,if necessary,facings other than the Large raised facing specified in JIS B2201 can be designated by customers.
4.Sized is an example of pipe thickness for schedule 40 of JIS G3454 and JIS G3456.But customers can rder for other size as occasion demand.
5.Material
Carbon Steel:S25C spedified in JIS G4051,or Sf440A specified in JIS G3201
Molybdeum steel:¹/₂Mo steel spcified in tables 1 and 2 of JIS B2215.
Chromium-Molybdenum steel:¹/₄CR ¹/₂Mo Steel specified in tables 1 and 2 of JIS B2215.
6.Refer to JIS B2216.
*The surface finish is the case of forging.

Service

Welcome to consult China Marine Industry 1kg JIS Ks F 7805 Slip-on Flange suppliers. We have more than 10 years of foreign trade supply experience and have provided high-quality shipping equipment to dozens of countries around the world. We provide you with high-quality services and preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
