Marine Industry Boat Ship Variable Displacement Pump

Feature
This series axial piston pump was developedby our factory latest updated products CY type axial pump, it contains the original CY pump has some variable type,is called the old type variables,besides having the advantages of the original CY type axial plunger pump,also has the following advantages:
1,This product is an axial piston pump in swash plate design for hydrostatic drives in open circuit operation;
2,Its rated operating pressure is up to 31.5MPa,and the instantaneous high pressure can reach 40MPa;
3,Various displacements .high power density;
4,Excellent suction performance;
5,New appearance,Excellent power/Weight ratio;
6,Low noise,Long lifespan;
7,The same mounting flange with CY pump and desigh for SAE oil flange.

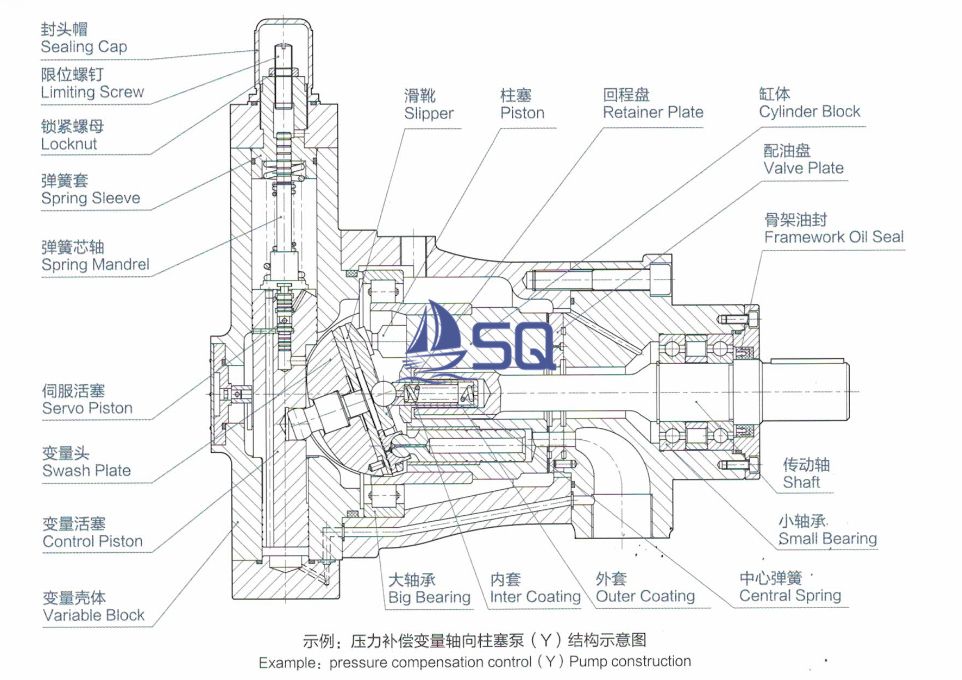

Construction

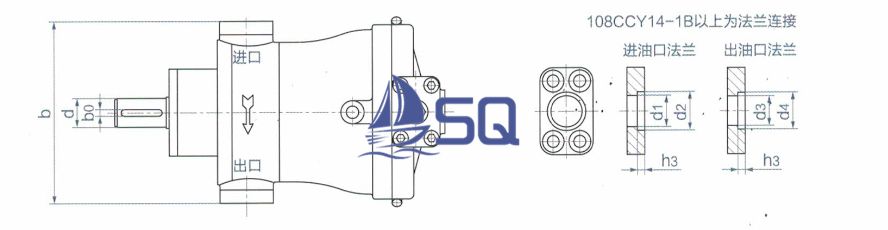

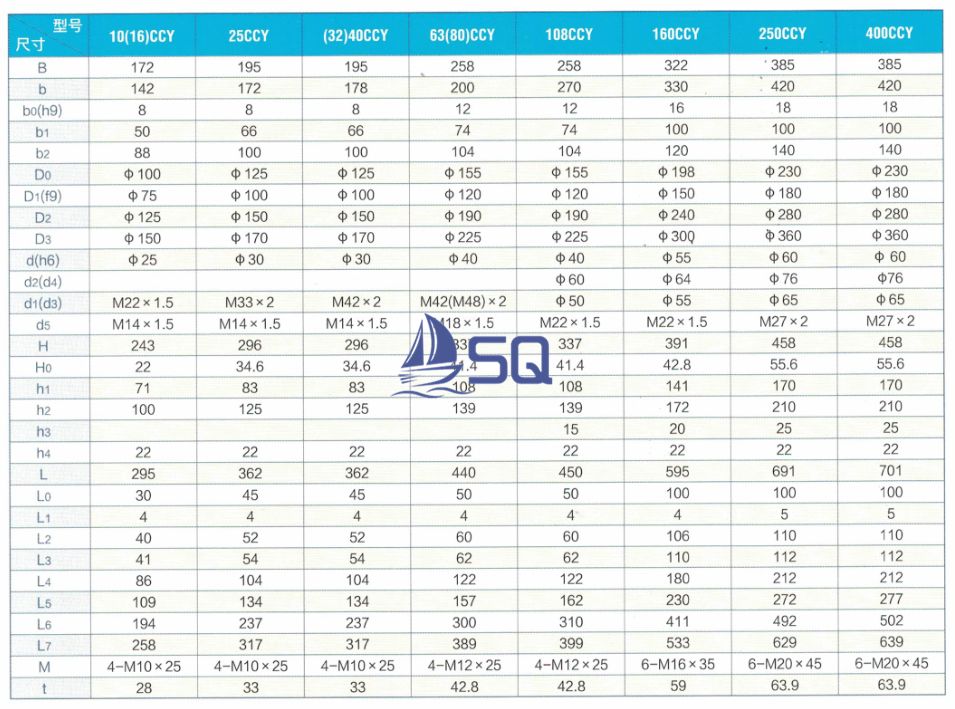

Overall Dimension

Oil Pump Motor Combination Specification
