Marine Industry Boat Variable Displacement Pump

Feature

1,This product is an axial piston pump in swash plate design for hydrostatic drives in open circuit operation;
2,Its rated operating pressure is up to 31.5MPa,and the instantaneous high pressure can reach 40MPa;
3,Various displacements .high power density;
4,Excellent suction performance;
5,New appearance,Excellent power/Weight ratio;
6,Low noise,Long lifespan;
7,The same mounting flange with CY pump and desigh for SAE oil flange.

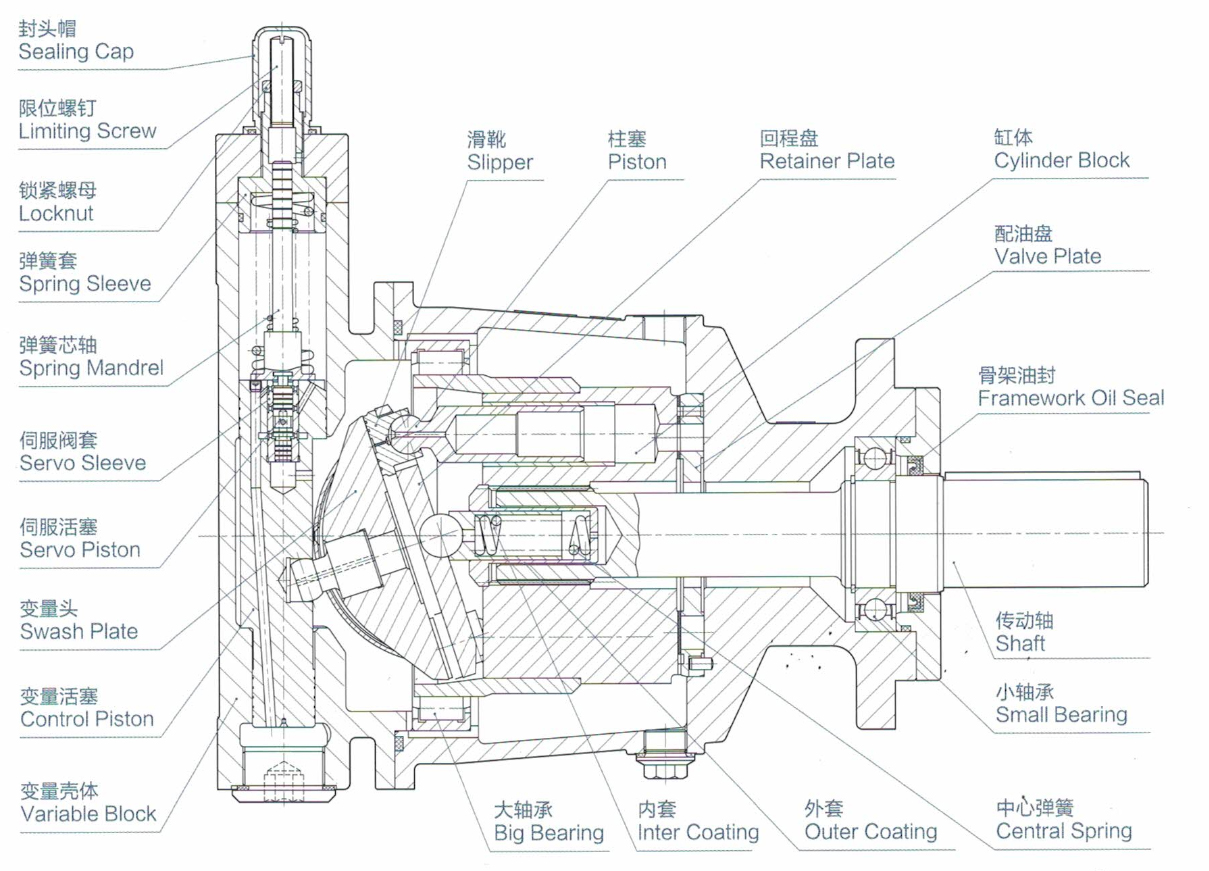

Construction

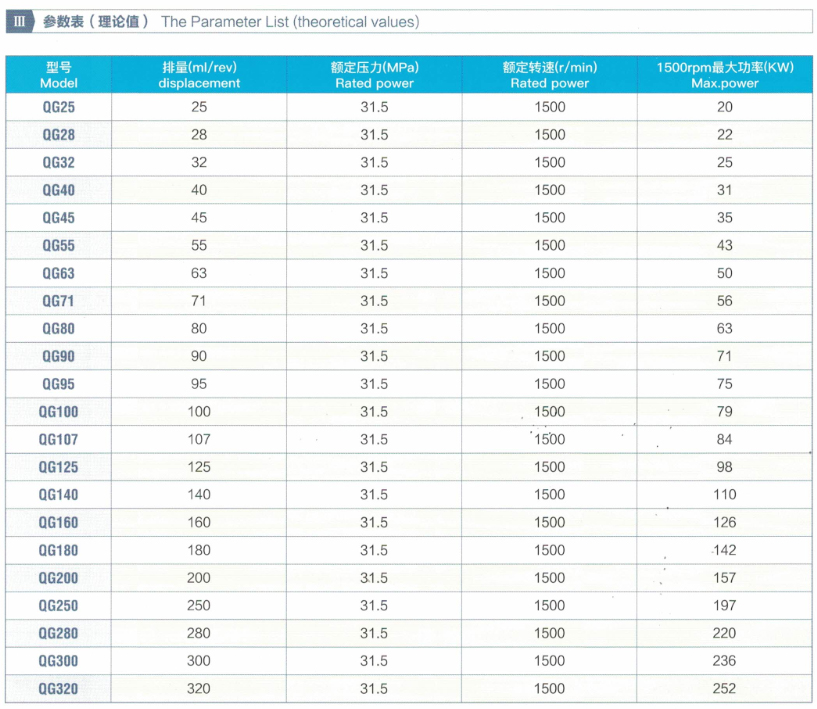

Parameter List

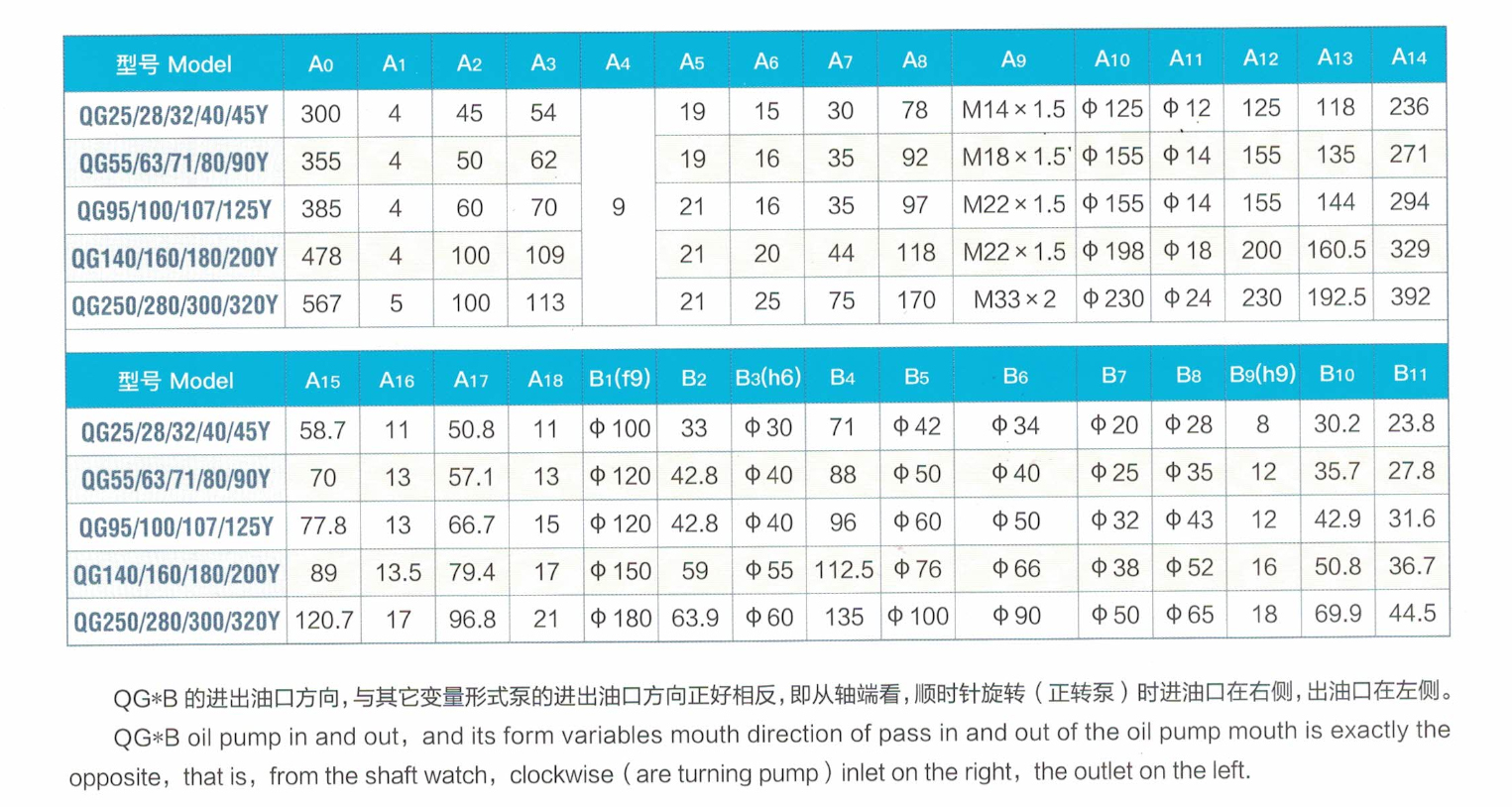

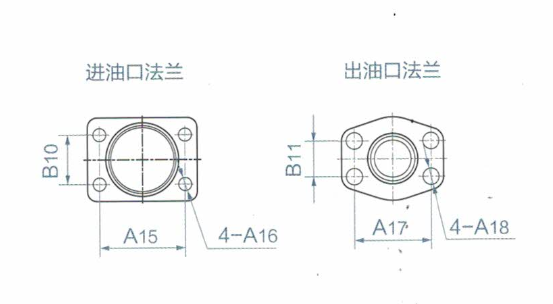

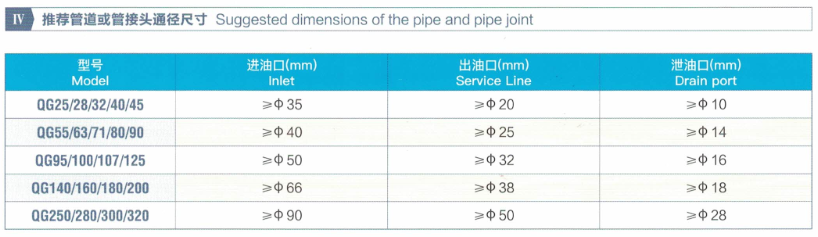

Diamensions of the pipe and pipe joint

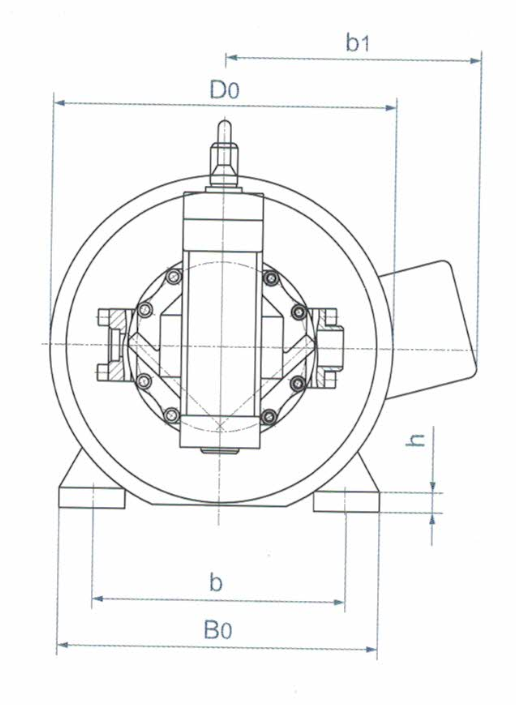

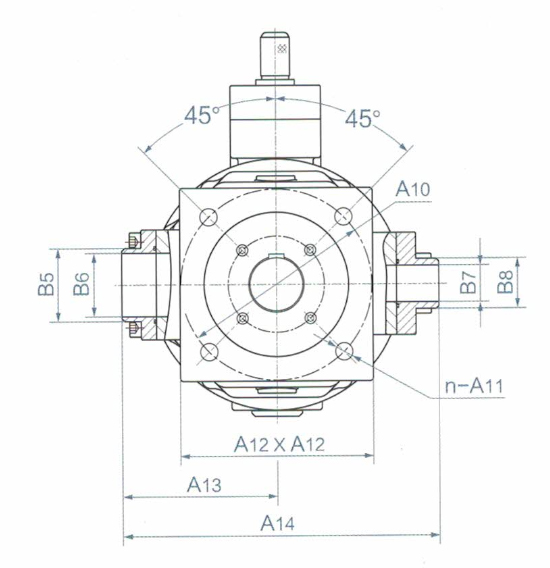

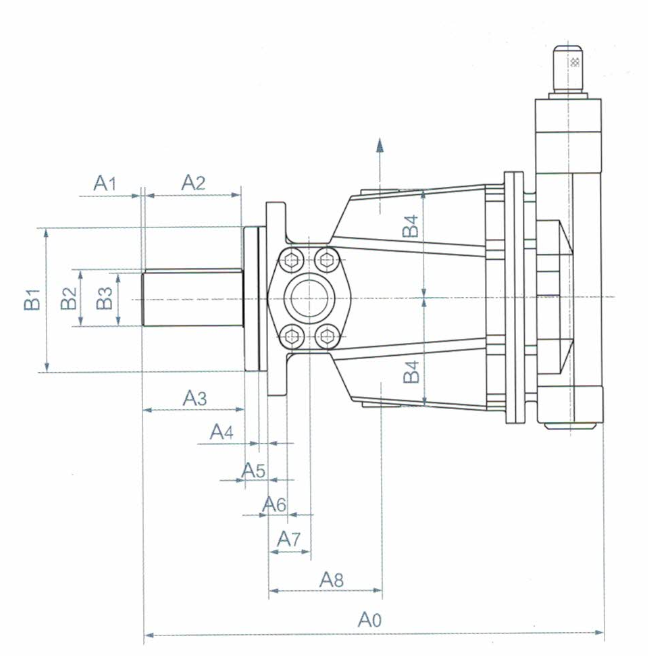

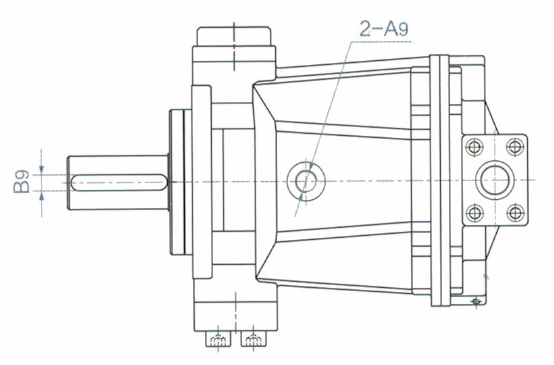

Overall Dimension

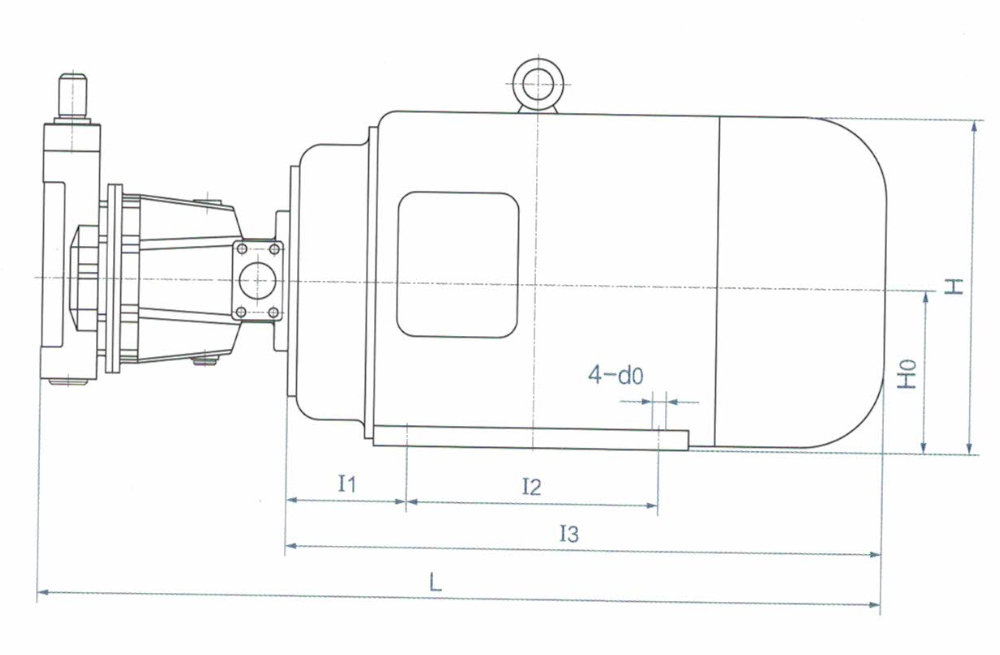

Oil Pump Motor Combination
