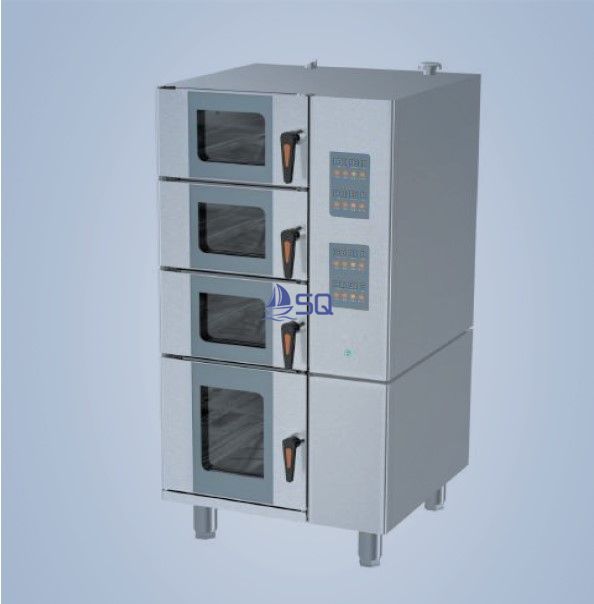

The steam box is designed with stainless steel structure, double-layer tempered glass door structure, visual cooking and excellent steaming cavity sealing effect
The steaming cavity liner is formed by mold, made of SUS304 material, which can match GN1/1 pots
The time, temperature, and menu of each steaming cavity can be independently controlled. No smell pollution exists among the independent steaming cavities. Parameters can be set according to your needs, and multiple dishes to be steamed at the same time is supported
The hard water is discharged automatically after shutdown to avoid the formation of scale and damage to the water tank
The steamer door hinge is equipped with different limit devices for easy operation
The steam box is designed with steam pressure relief protec-tion, overpressure shutdown and other protection functions
| Model | DZ-ZN04 | DZ-ZN04 | DZ-ZN10 | DZ-ZN20 | DZ-ZN20/TC |
| Capacity | 4XGN1/1 | 6XGN1/1 | 10X12GN1/1 | 20XGN1/1 | 20XGN1/1 |
| Voltage | 380/415V-3PH-50Hz 440/480V-3PH-60Hz | ||||
| Power(kW) | 6 | 9 | 18 | 27 | 27 |

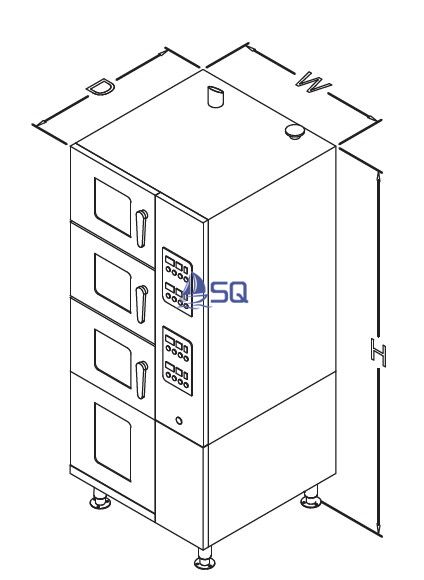

| Size(mm) | 475X750X730 | 720X750X890 | 750X750X1600/1780 | 1280×750×1600 | 950×850×1830 |
| Weight(kg) | 56 | 89 | 135/155 | 210 | 10 |
| Note | Desktop Type | Desktop Type | Vertical Type | Vertical Type | Trolley Type |
Welcome to consult China Marine Intellectual Steam Box suppliers. We have more than 10 years of foreign trade supply experience and have provided high-quality shipping equipment to dozens of countries around the world. We provide you with high-quality services and preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
