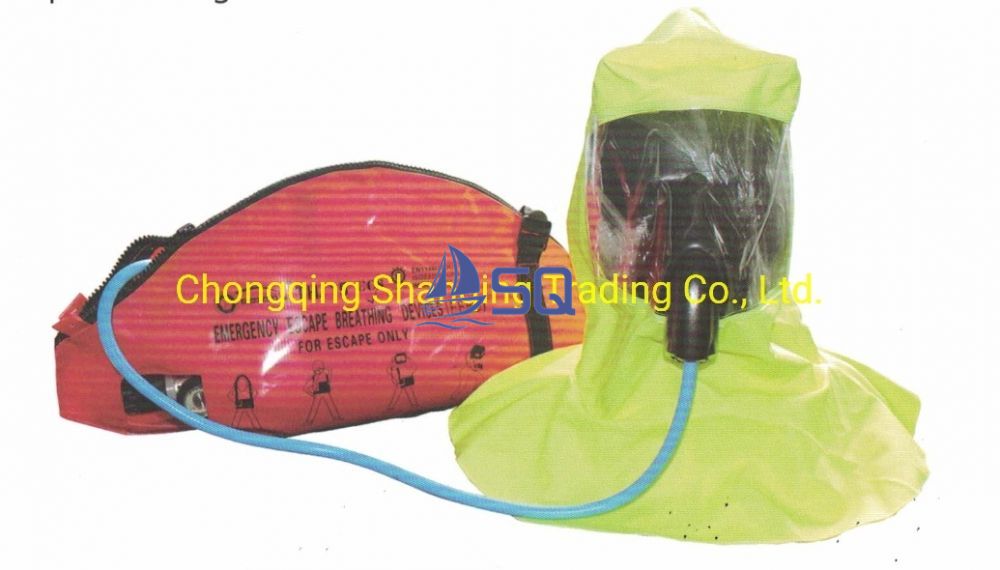

China Marine Ship Boat Emergency Escape Breathing Devices Introduction:
Specifications
Description
Emergency Escape Breathing Devices Specification
Comly with SOLAS 1974 and latest amendment
Use for people when emergency escape,it is a high-performance personal respiratory protective equipment to protect them
Working principle:reduce the high presure gas to medium pressure gas into 0.6-0.9Mpa in the cylinder,flow to hood for human respiratory
Working Duration: ≥15min
Air CylinbderVolume: 3L
Normal working pressure: 210Bar
Weight: 7kg
Packing size: 590×250×175mm
Certificate: CCS\EC\ZY
O2 Breathing Device Description
Oxygen apparatus is a new generation product for personal respiratory protection. Under the condition of isolation from the outside world, it can ensure that the supply of oxygen is completely matched with the vital capacity of human beings. It has the advantages of unobstructed circulation gas path, stable and sufficient gas supply, timely follow-up supply, comfortable use, etc.; it has the advantages of small respiratory resistance, small weight and volume, long protection time, high stability and reliability, simple structure, convenient disassembly and maintenance, etc!
Specification
|
Breathing volume
|
30L/min
|
Sound level
|
≥80db
|
|
Expiratory resistance
|
≤600Pa
|
Effective protection time
|
4H(General working intensity)
|
|
Inspiratory resistance
|
>0
|
Rated working pressure of oxygen cylinder
|
20MPa
|
|
Oxygen supply ration
|
1.6±0.1L/min
|
Volume of oxygen cylinder
|
2.4L
|
|
Automatic oxygen supply ration
|
>100L/min
|
Oxygen volume
|
500L
|
|
Dynamic oxygen supply
|
>100L/min
|
Calcium hydroxide content
|
2.1Kg
|
|
Opening pressure of automatic makeup valve
|
50-245Pa
|
Outline size
|
560x370x160mm
|
|
Carbon dioxide concentration in exhalation
|
<1%
|
quality
|
10Kg(No gas)
|
|
Oxygen concentration in inhalation
|
>21%
|
Liquid storage capacity
|
1x2CBM
|
|
Alarm pressure
|
4-6MPa
|
Grouting outlet pressure
|
1.2MPa
|
|
Alarm time
|
30-60s
|
Grouting flow rate
|
130L/min
|
Other Parts of Breathing Apparatus
