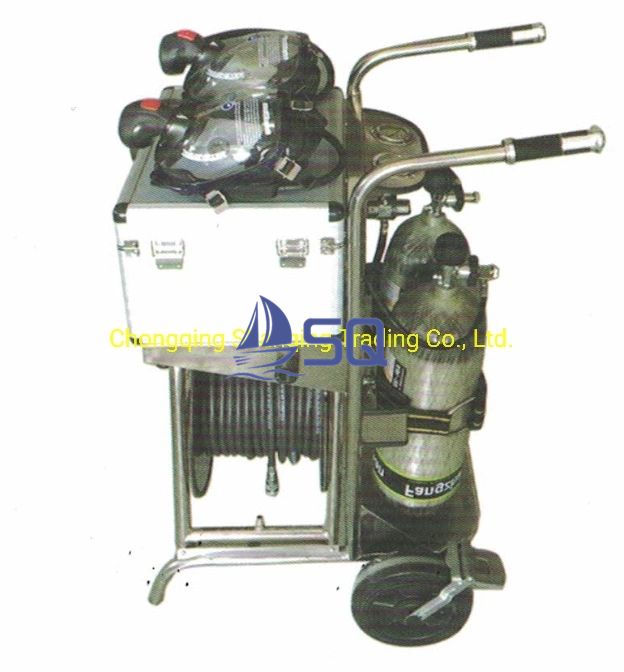

China Marine Ship Boat Wheeled Breathing Apparatus Introduction:
Specifications
Description
Wheel Breathing Apparatus can be used by two people at the same time to ensure long-term work, convenient replacement of gas supply source, no impact on rescue work and effective extension of continuous rescue time.
Component (Cylinder,Breathing apparatus box,Mask,Barrow,Air supply valve)
Advantage
1,The pressure gauge and alarm whistle are placed in front of the chest, with a sound greater than 90 decibels. It is convenient for the user to hear the alarm sound in noisy environment. The pressure gauge has the function of waterproof and shockproof.
2,K-type interface can be used by two people at the same time.
3,HUD head up display has display function, high and low pressure prompt and temperature prompt. It adopts flame retardant and high temperature resistant materials to ensure high impact resistance and can be used safely in various harsh environments. It can be used with a variety of transmitters and is easy to operate.
4,The pressure reducing valve depressurizes the high-pressure gas through a series of functions, and the gas after depressurization is connected with the air supply valve through the medium pressure pipe for secondary depressurization, so as to reach the standard of human respiration.
5,Stainless steel trolley: stainless steel frame, high structural strength, excellent anti-corrosion performance, can be equipped with foot brake device.
6,Medium pressure hose: the length of main hose is 30m, and the length of two branch hoses is 10m respectively. The total length of medium pressure hose (main hose + branch hose) can be increased to 90m as required.
7,Air supply assembly: double or four bottles, pressure reducing valve, air supply valve, comprehensive cover and other components. The long hose respirator bottles of the cart are all carbon fiber composite bottles, each with specifications of 6L, 6.8L, 9L and 12L.
Specification
|
Performance index
|
4-cylinder device
|
2-cylinder device
|
|
Cylinder
|
Material
|
Carbon fiber cylinder
|
Carbon fiber cylinder
|
|
Water capacity
|
6.8L
|
6.8L
|
|
Working pressure
|
30MPa
|
30MPa
|
|
Quantity
|
4
|
2
|
|
Decompression valve
|
Input pressure
|
≤500Pa
|
≤500Pa
|
|
Output pressure
|
≤1000Pa
|
≤1000Pa
|
|
Safety valve
|
Opening pressure
|
1.1~1.7MPa
|
1.1~1.7MPa
|
|
Alarm
|
Alarm pressure
|
5.5±0.5MPa
|
5.5±0.5MPa
|
|
Medium-pressure hose
|
Length
|
Standard configuration: 50m;≤90m at most
|
Standard configuration: 50m;≤90m at most
|
Note:We can also customize the corresponding products according to your needs!
