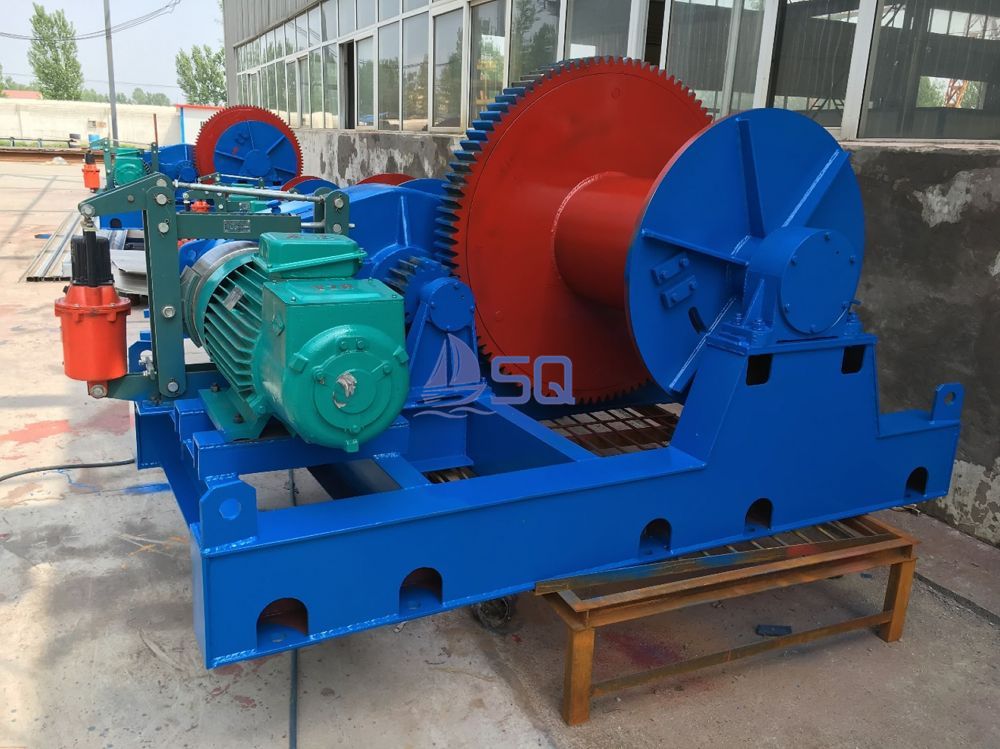

Mining Electric High Speed Winch use for crane and installation industry. JK Mining Electric High Speed Winch has the following features:
1.Final Drives gears are made with heat-treated carbon steel offering greater strength.
2.Precision needle bearing used in high-load areas offering lower friction level and longer life.
3.High impact case providing weather resistance and protection for internal components.
4.Durable hook safety snap keeping the loads attached.
|
Model |
JK1 |
JK3 |
JK5 |
JK8 |
JK10 |
|
|
Line pull capacity (kg) |
1000 |
3000 |
5000 |
8000 |
10000 |
|
|
Wire rope average speed (m/min) |
30 |
30 |
28 |
20 |
19 |
|
|
Wire rope Dia.( mm): |
9.3 |
15.5 |
21.5 |
26 |
30 |
|
|
Reduction box |
Type |
JZQ350 |
JZQ500 |
JZQ650 |
JZQ650 |
JZQ750 |
|
Transmission ratio |
31.5 |
23.34 |
40.17 |
23.34 |
23.34 |
|
|
Drum (mm) |
Diameter() |
190 |
325 |
406 |
500 |
550 |
|
Length |
360 |
520 |
840 |
900 |
1000 |
|
|
Capacity(m) |
110 |
200 |
300 |
300 |
450 |
|
|
motor |
Type |
Y132M-4 |
YZR225M-8 |
YZR250M1-8 |
YZR250M1-6 |
YZR250M2-6 |
|
Power(kW) |
7.5 |
22 |
30 |
37 |
45 |
|
|
Rotating speed(r/min) |
1440 |
715 |
864 |
960 |
960 |
|
|
Hydraulic Brake |
YWZ-200/25 |
YWZ-200/25 |
YWZ-300/45 |
YWZ-300/45 |
YWZ-400 |
|
|
Dimension (cm) |
945x97x60 |
147x140x95 |
186x166x95 |
240x180x110 |
250x190x120 |
|
|
Weight(kg) |
460 |
1200 |
2700 |
4000 |
5000 |
|
