Mining Intrinsic Safety Flowmeter

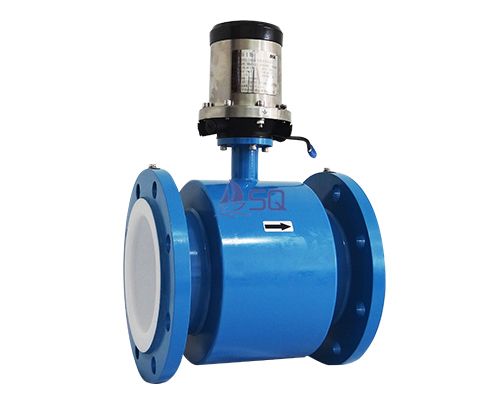

LZD280/100G Mining Intrinsic Safety Flowmeter

Product Introduction
LZD280/100G Intrinsically Safe Mine Flowmeter is a battery powered electromagnetic flow meter with an explosion-proof label of Ex ib I Mb. This type of flowmeter uses the Faraday's law of induction. When the conductor moves through the magnetic field to cut the magnetic induction line, the two ends of the conductor will generate an induced electromotive force. The magnitude of the induced electromotive force is a function of the flow rate. By measuring induced electromotive force and processing data, accurate fluid flow rate can be obtained.
This type of flowmeter can measure various corrosive, non corrosive liquids, heavy turbidity coal slurry or mud bodies, and is widely used in explosion-proof situations such as underground coal mines, especially in situations where on-site power is not convenient.

Technical characteristics

measuring principle
Faraday electromagnetic induction

Shell
Q235 steel pipe section+stainless steel gauge head
Measuring pipe diameter
DN100~DN300
display
LCD liquid crystal display screen
Measuring flow rate
1000 m3/h
Parameter setting method
Infrared remote control type
measurement accuracy
± 1%
output signal
No output
Installation method
Flange mounted
power supply
No external power supply (internal battery power supply)
lining
Multiple lining options available
Battery life
Over 5 years (30S excitation)
Explosion proof structure
Intrinsically safe type
weight
About 10Kg (DN100)
Homologous product
LZD350/150G, LZD500/200G, LZD900/250G, LZD1000/300G (corresponding to different calibers)

Functional highlights
1% linearity, 0.2% repeatability
High reliability, anti-interference design, fearless of complex electromagnetic environments
Multiple lining options, suitable for different media occasions, meeting high and low temperatures, acid alkali corrosion, sand and stone wear, etc
Multiple instrument modes can be set with LCD off mode to minimize power consumption
Multiple alarm information indications for convenient on-site diagnosis
Integrated high energy density lithium battery, with a 30 second excitation interval, for over 8 years of long-term use
