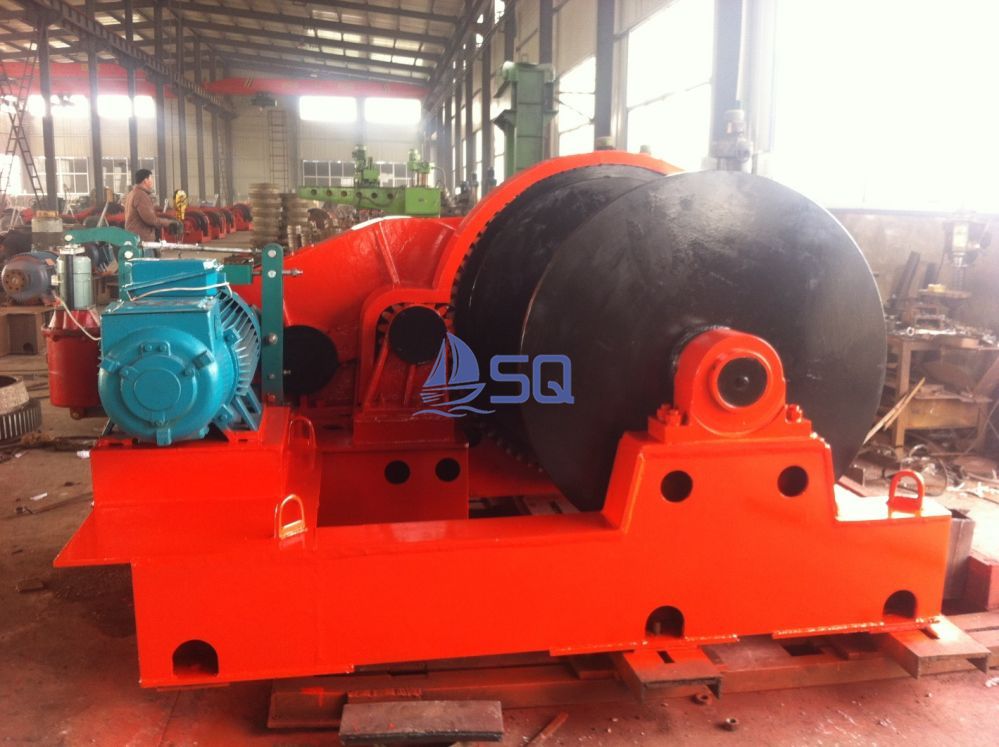

There are two types of JM Electric Mining Low Speed Winch: small pull capacity and large pull capacity. Large pull capacity mostly are applicable to port building, traction of shipyard, steel structure transport and assemble, disassemble, pulling machines. Its feature is that line rope pull large, sometimes with rope guider for wire rope dispose trimly, safety and credible
Small pull capacity mostly are applicable for construction, lifting, disassembly, traction, assembly in construction company, mine, factory and so on.
|
Model |
JM 2 T |
JM 3 T |
JM 5 T |
|
|
Rated Line Pull KN |
20 |
30 |
50 |
|
|
Total Transmission ratioI |
54.9 |
88.6 |
119.34 |
|
|
Drum |
Dia.XL MM |
219X535 |
1273X594 |
325X640 |
|
Wire rope length M |
180 |
150 |
200 |
|
|
Wire rope |
Specification |
6X19 |
6X19 |
6X19 |
|
Diameter MM |
12.5 |
15.5 |
19.5 |
|
|
Lifting Speed M/MIM |
16 |
16 |
9 |
|
|
motor |
Model |
YZR132M-6 |
YZR160M-6 |
YZR160L-6 |
|
Power KW |
7.5 |
11 |
11 |
|
|
Speed R/MIM |
960 |
960 |
960 |
|
|
Arrester brake model |
TJ2-200 |
TJ2-200 |
YZW300/45 |
|
|
Dimension MM |
980X880X530 |
1130X1020X550 |
1310X1240X800 |
|
|
Weight KG |
425 |
585 |
950 |
|
