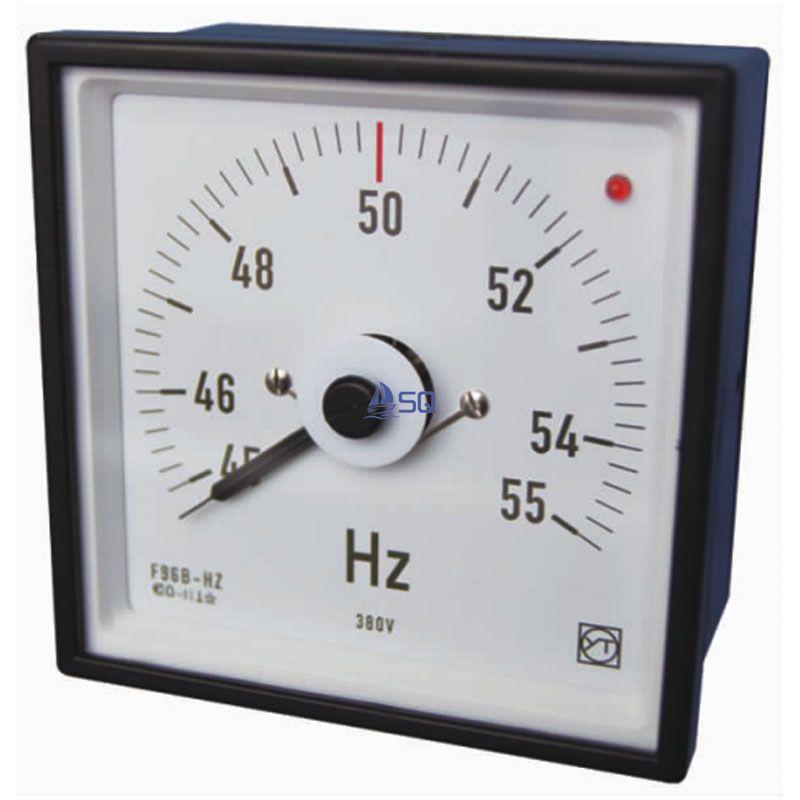

Measurement of network frequency and to output alarm signal if toexceed limt.
Accuracy:Class 0.5
Ambient temperrature range:-25℃ to +55℃
Housing protection: IP44(Up to IP56 with protection shield, Specify IP degree in order)
Vibration resistance:2-1ooHz,≤0.7g
Test voltage: AC2.5kV, 50Hz, 1min
Contact rating: AC 250V, 1A, DC 28V, 1A
Alarm value setting: tobe customized including upper limit, lower limit, and upper/lower limit as well.
Measuring range as F96-HZ
| Type | Develop angle |
Outline(mm)
（A*B*C） |
Cut-out
（mm） |
Weight
（kg） |
Note |
|
F72B-HZB
|
90°
|
72*72*120
|
68*68+0.5
|
0.2
|
YT-MHZ
|
|
F96B-HZB
|
|
96*96*130
|
92*92+0.5
|
0.45
|
…
|
|
F72B-HZ
|
|
72*72*120
|
68*68+0.5
|
0.2
|
YT-MHZ
|
|
F96B-HZ
|
240°
|
96*96*130
|
92*92+0.5
|
0.7
|
...
|
