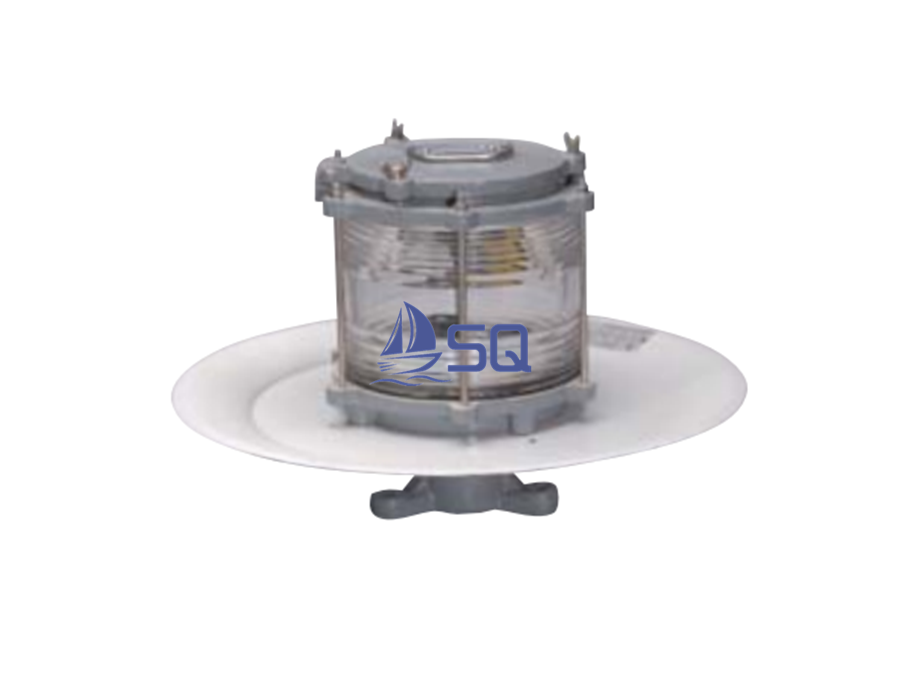

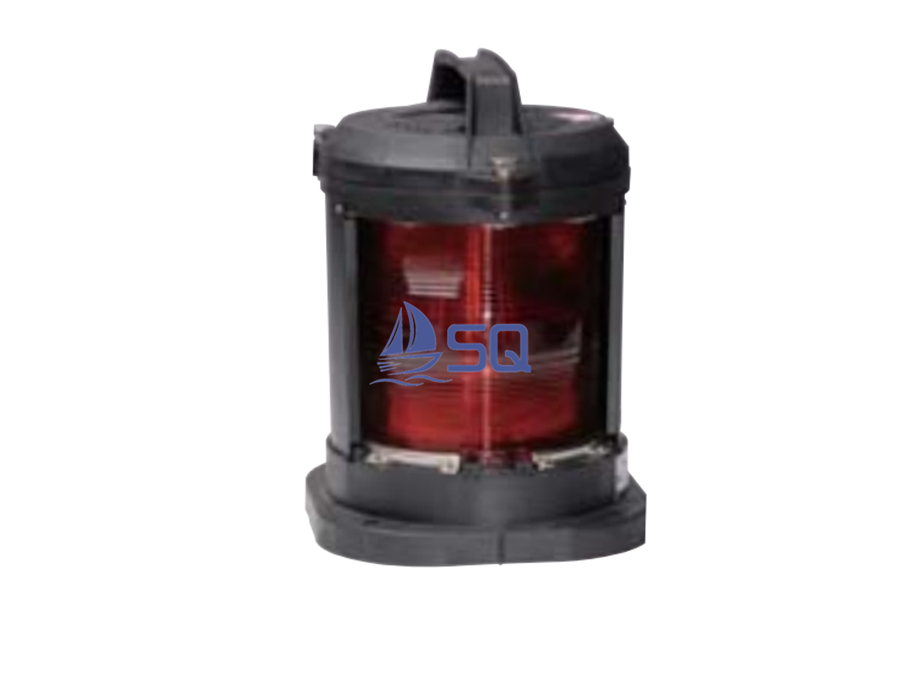

Navigation Signal Light

Products Feature

1.This lamp can be installed conveniently and its bulb can be replaced easily,it can replace the bulb after open the up cover.

2.There are automatic leak holes on the bottom of light.

3.The shell is made of high quality steel by pressing mold, light surface is painted by marine special molding powder which has the feature of corrosion prevention and shock resistance.

4.The lampshade adopts good quality glass and it has good function of light transmission.

5.The signal lights adopt the signal light's bulb which conform to the ship norm and the average life not less than 700h.

6.The signal lights can work normally under the temperature -30℃~+50℃

7.Cable outside diameter 14mm

Adopt Standard and Products Certification

1.Conform to INTERNATIONAL REGULATIONS FOR PREVENTING COLLISIONS AT SEA 1972.

2.Conform to international standard of IEC60598-1-2008

3.Conform to performance standard of requirement about IMO Res.MSC.253(83).

4.Conform to national standard of GB/T3028-2012.

5.Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.

6.Approved by China Classification Society (CCS) and Type Approval of China Fishery Inspection Bureau.(ZY)

7.Passed the European Union (CE) certification.

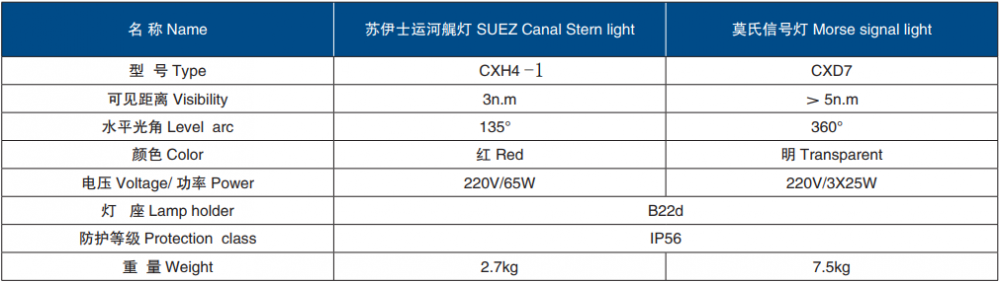

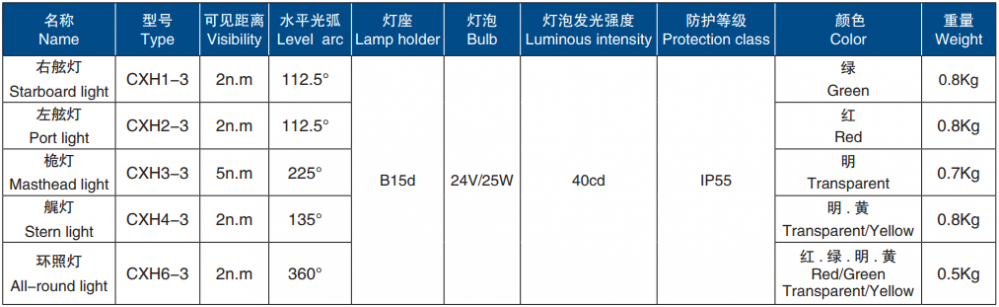

Specification

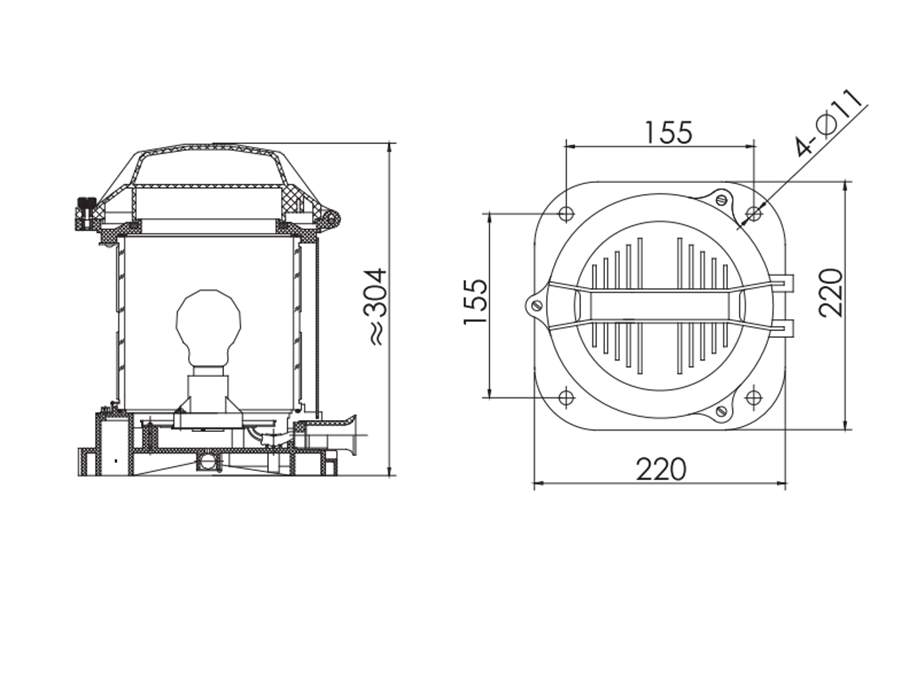

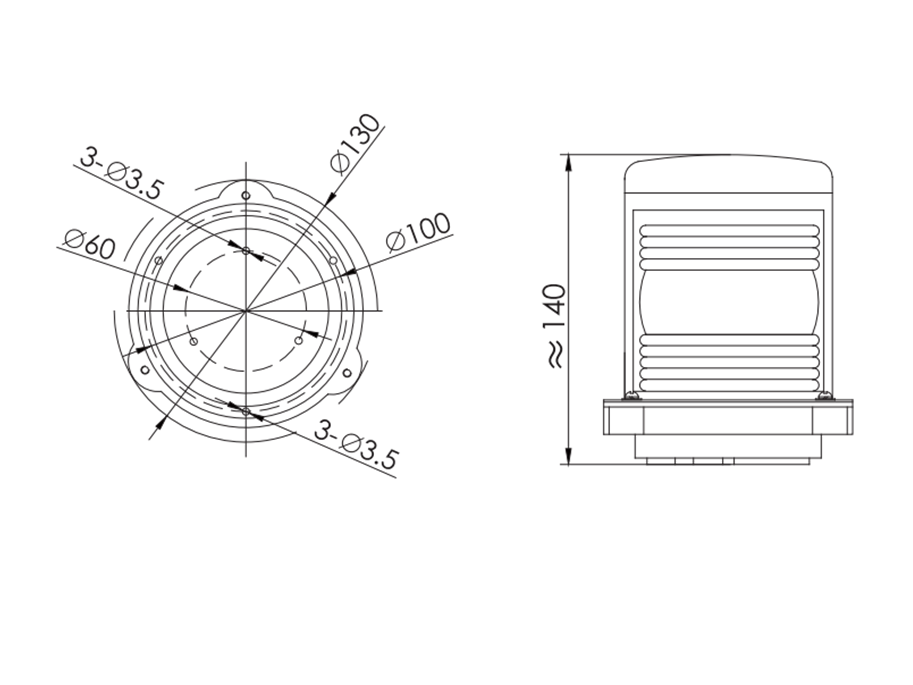

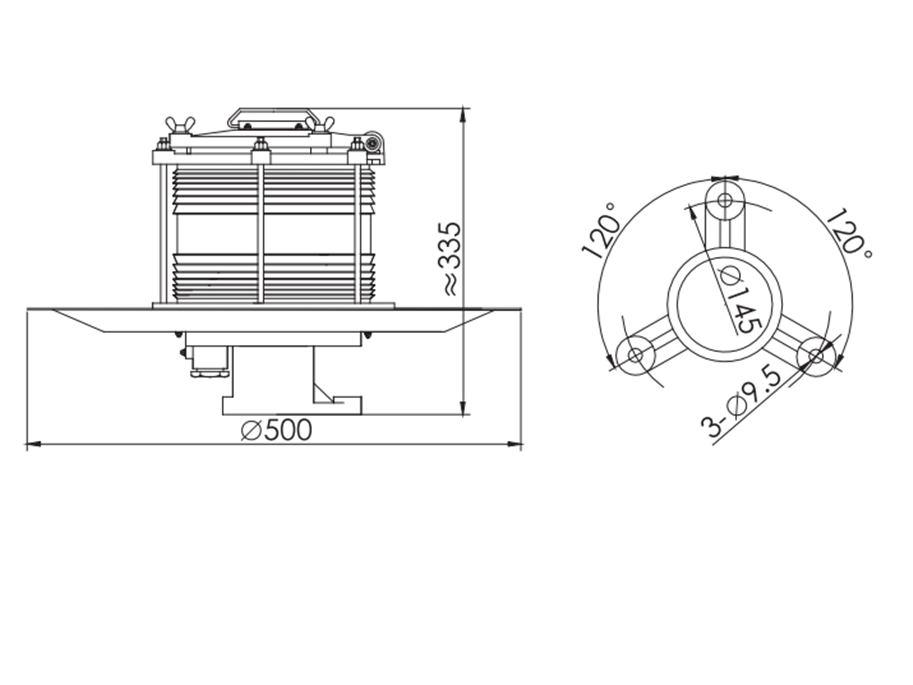

Diagram
