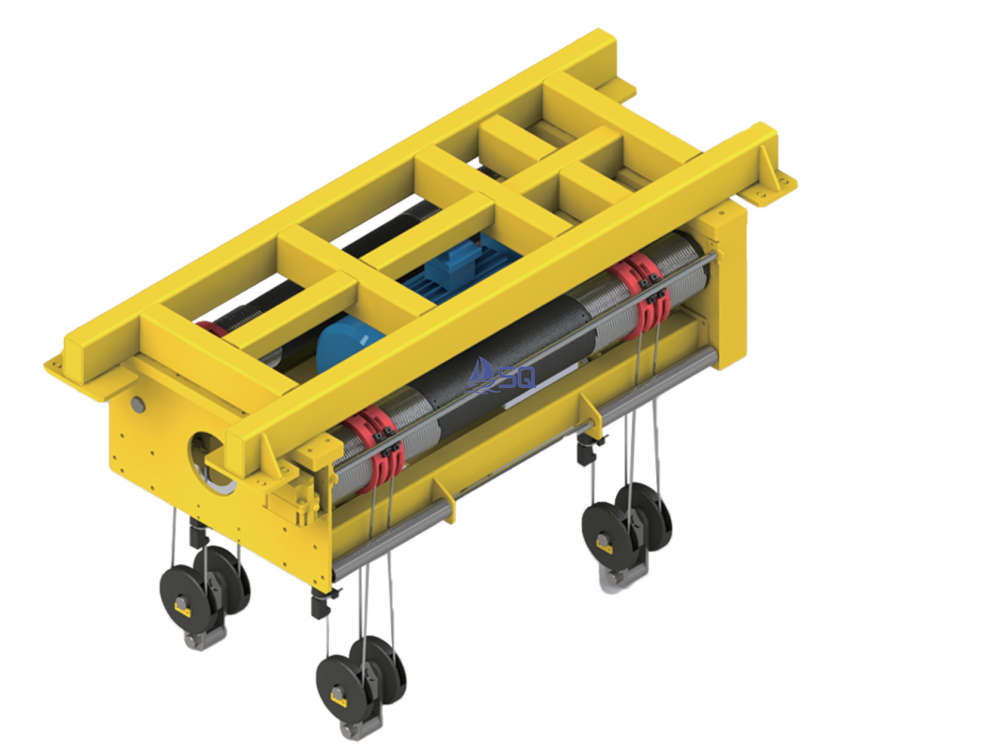

This product is an intelligent battery changing tailored for new energy truck automatic battery changing stations.
1. Adopt electromagnetic brake motor with internal encoder and programmable control.
2. The reel is equipped with rope groove and rope guide, two-way four-rope structure, to ensure that the hook does not swing.
3. Equipped with mechanical height limiter and absolute encoder for double safety protection.
4. Each hook is equipped with an independent force sensor, which can effectively protect the battery safety.
|
Model |
Gear ratio |
Output Torque |
Out rope speed |
Lifting weight |
Lifting height |
Power |
|
PJL-5-4.5T |
37.08:1 |
2580n.m |
11.5m/min |
4500kgs |
5m |
1kw |
