| Diesel Fork lift 3.0T/3.5T | NL30C/NL30 | NL35C/NL35 | |||||
| characteristic | Power | Diesel / gasoline | Diesel / gasoline | ||||
| Driving mode | Drive type | Drive type | |||||
| Rated Load (kg) | 3000 | 3500 | |||||
| Load center distance (mm) | 500 | 500 | |||||

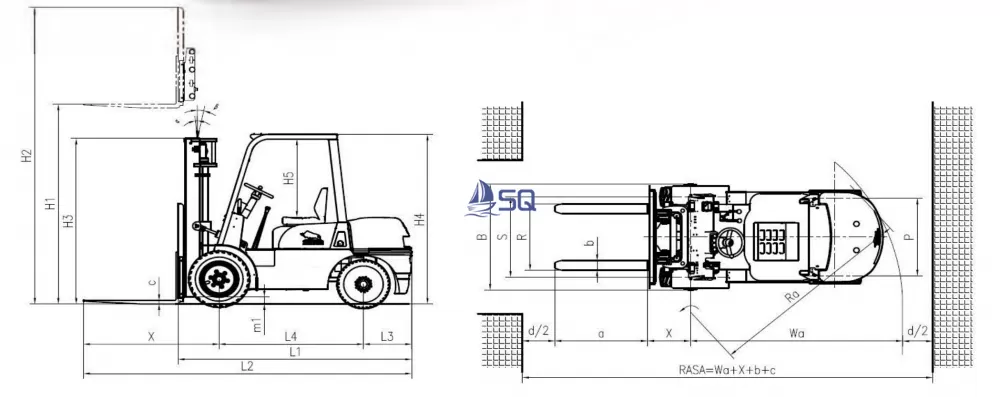

| Maximum lifting height (mm) | H1 | 3000 | 3000 | ||||
| Frame inclination front / rear (Deg) | α/β | 6°/12° | 6°/12° | ||||
| size | Fork size L×W×H (mm) | a×b×c | 1070×125×45 | 1070×125×45 | |||
| Full-length free / fork (mm) | L1/L2 | 2750/3870 | 2890/3980 | ||||
| Full width (mm) | B | 1230 | 1230 | ||||
| Maximum lifting height of fork (with shelf)(mm) | H2 | 4110 | 4110 | ||||
| Door height (cargo landing, vertical) (mm) | H3 | 2050 | 2050 | ||||
| Top frame height (mm) | H4 | 2140 | 2140 | ||||
| Distance of seat face to roof frame (mm) | H5 | 1000 | 1000 | ||||
| Fork pitch(outside) (maximum/minimum)(mm) | R | 1100/250 | 1100/250 | ||||
| Minimum turning radius (mm) | Wa | 2495 | 2640 | ||||
| Minimum rectangular channel width (mm) | Ra | 2500 | 2700 | ||||
| Minimum ground clearance (at the gantry)(mm) | m1 | 126 | 126 | ||||
| Front overhang (mm) | X | 500 | 500 | ||||
| Rear overhang (mm) | L3 | 570 | 570 | ||||
| Wheelbase (mm) | L4 | 1770 | 1850 | ||||
| Roel (front /rear) (mm) | S/P | 1000/970 | 1000/970 | ||||
| function | Maximum driving speed (Km/h) | 18/19 | 18/19 | ||||
| Lift speed (full load / empty load) (mm/s) | 460/540 | 460/540 | |||||
| Drop speed (full load / empty load) (mm/s) | 450/420 | 450/420 | |||||
| Maximum Traction (Full load / No load) (KN) | 20/16 | 21/17 | |||||
| Maximum hill climbing capacity (empty load)(%) | 20 | 20 | |||||
| Forklift dead weight (no load)(Kg) | 4280 | 4500 | |||||
| Body and tire | Number of tires X= drive wheel (front / rear) | 2X/2 | 2X/2 | ||||
| Tire type | Inflatable tire | Inflatable tire | |||||
| Tire size | 28×9-15-12PR/6.50-10-10PR | 28×9-15-12PR/6.50-10-10PR | |||||
| Service brake | Hydraulic-Pedal | Hydraulic-Pedal | |||||
| parking brake | Mechanical-manual type | Mechanical-manual type | |||||
| Drive element and gearbox | Storage battery (V/Ah) | 12/120 | 12/120 | ||||
| Engine manufacturer / model number | Xinchang4D27G31 | Xinchang4D30G31 | YANMAR 4TNE98 | K25 | 白杨BY491 | ||
| Engine power rating (kW/rpm) | 36.8/2500 | 36.8/2650 | 42.1/2450 | 37.4/2300 | 46/3000 | ||
| Engine-rated torque (Nm/rpm) | 156/1700-1900 | 174/1700-1900 | 193.6/1700-1900 | 176.5/1600 | 176/1800-2200 | ||
| Number of engine cylinders | 4-90×105 | 4-95×105 | 4-98×110 | 4-89×100 | 4-91×86 | ||
| Engine displacement (L) | 2.67 | 2.98 | 3.319 | 2.488 | 2.272 | ||
| Engine adaptation model | 3-3.5T | 3-3.5T | 3-3.5T | 3-3.5T | 3-3.5T | ||
| Fuel tank capacity (L) | 70 | 70 | 70 | 70 | 70 | ||
| Number of transmission shift gears | 1-1 self-row shift / 2-2 hand shift | 1-1 self-row shift / 2-2 hand shift | |||||
| Working pressure (Mpa) | 17.5 | 17.5 | |||||
