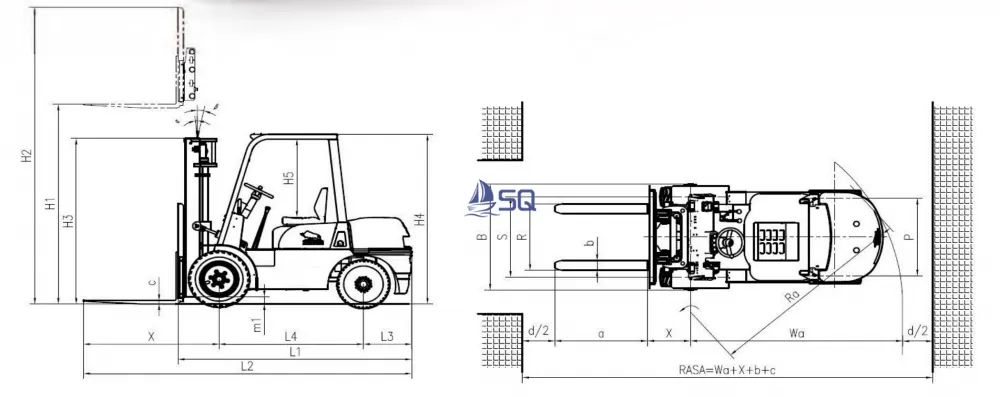

| Diesel Fork lift 3.0T/3.5T | NL30C/NL30 | NL35C/NL35 | |||||
| characteristic | Power | Diesel / gasoline | Diesel / gasoline | ||||
| Driving mode | Drive type | Drive type | |||||
| Rated Load (kg) | 4500 | 3500 | |||||
| Load center distance (mm) | 500 | 500 | |||||
| Maximum lifting height (mm) | H1 | 3000 | 3000 | ||||
| Frame inclination front / rear (Deg) | α/β | 6°/12° | 6°/12° | ||||
| size | Fork size L×W×H (mm) | a×b×c | 1070×150×50 | 1070×150×50 | |||
| Full-length free / fork (mm) | L1/L2 | 3218/4320 | 3218/4320 | ||||
| Full width (mm) | B | 1490 | 1490 | ||||
| Maximum lifting height of fork (with shelf)(mm) | H2 | 4260 | 4260 | ||||
| Door height (cargo landing, vertical) (mm) | H3 | 2245 | 2245 | ||||
| Top frame height (mm) | H4 | 2290 | 2290 | ||||
| Distance of seat face to roof frame (mm) | H5 | 960 | 960 | ||||
| Fork pitch(outside) (maximum/minimum)(mm) | R | 1390/300 | 1390/300 | ||||
| Minimum turning radius (mm) | Wa | 2974 | 2974 | ||||
| Minimum rectangular channel width (mm) | Ra | 3100 | 3100 | ||||
| Minimum ground clearance (at the gantry)(mm) | m1 | 160 | 160 | ||||
| Front overhang (mm) | X | 560 | 560 | ||||
| Rear overhang (mm) | L3 | 590 | 590 | ||||
| Wheelbase (mm) | L4 | 2100 | 2100 | ||||
| Roel (front /rear) (mm) | S/P | 1180/1190 | 1180/1190 | ||||
| function | Maximum driving speed (Km/h) | 18/19 | 18/19 | ||||
| Lift speed (full load / empty load) (mm/s) | 380/410 | 380/410 | |||||
| Drop speed (full load / empty load) (mm/s) | 380/340 | 380/340 | |||||
| Maximum Traction (Full load / No load) (KN) | 22/18 | 22/18 | |||||
| Maximum hill climbing capacity (empty load)(%) | 20 | 20 | |||||
| Forklift dead weight (no load)(Kg) | 6500 | 6600 | |||||
| Body and tire | Number of tires X= drive wheel (front / rear) | 2X/2 | 2X/2 | ||||
| Tire type | Inflatable tire | Inflatable tire | |||||
| Tire size | 300-15-18PR | 300-15-18PR | |||||
| Service brake | Hydraulic-Pedal | Hydraulic-Pedal | |||||
| parking brake | Mechanical-manual type | Mechanical-manual type | |||||
| Drive element and gearbox | Storage battery (V/Ah) | (12/80)x2 | (12/80)x2 | ||||
| Engine manufacturer / model number | Xinchai4D35ZG31 | Perkins1104D-44 | MitsubishiS6s | ||||
| Engine power rating (kW/rpm) | 48/2300 | 55.9/2200 | 52/2300 | ||||
| Engine-rated torque (Nm/rpm) | 230/1600-1800 | 265/1700 | 248/1700 | ||||
| Number of engine cylinders | 4-98×115 | 4-105×127 | 6-94×120 | ||||
| Engine displacement (L) | 3.47 | 4.4 | 4.997 | ||||
| Engine adaptation model | 4.5-5T | 4.5-5T | 4.5-5T | ||||
| Fuel tank capacity (L) | 110 | 110 | 110 | ||||
| Number of transmission shift gears | 2-1 self shift | 2-1 self shift | |||||
| Working pressure (Mpa) | 18.5 | 18.5 | |||||
Welcome to consult China NL30/35 Diesel Forklift 4.5T/5.0T suppliers. We have more than 10 years of foreign trade supply experience and have provided high-quality shipping equipment to dozens of countries around the world. We provide you with high-quality services and preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
