Parallel Shaft Helical Gearmotor F Series

F series Parallel Shaft Helical Gear Worm Gearbox

F Series Helical Gear Reducer The axis-parallel gear units have a slim design. Nonetheless, they offer a power range from 130 to 18,000 Nm. We think they are always a good choice when space is limited.

F series parallel-shaft helical gear units: perfectly matched to limited installation space

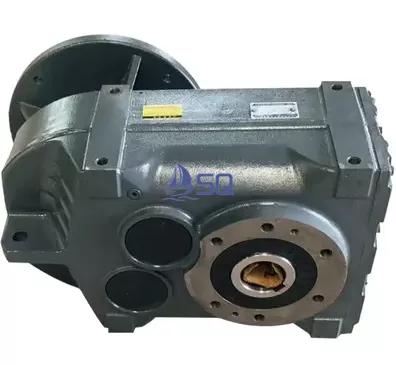

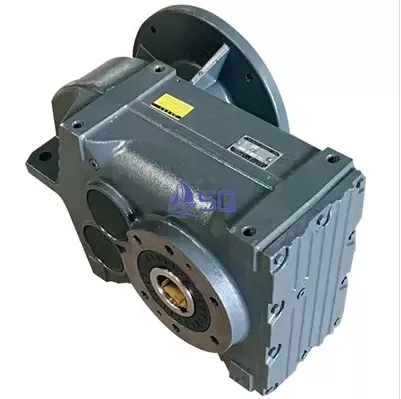

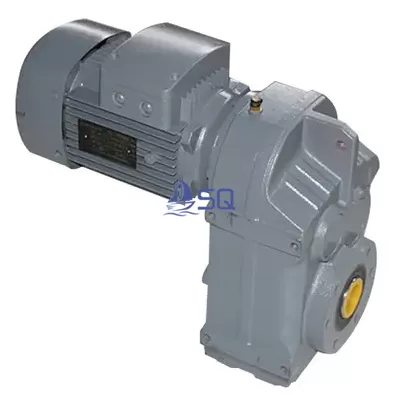

The figure shows a gearmotor with a parallel-shaft helical gear unit One of our best gear units for limited installation space. A wide range of mounting positions and variants enable a broad spectrum of applications even under difficult installation conditions – without having to compromise on the performance. And what applies to many of our gear units: long operating lives without maintenance and wear-free gearing with a high fatigue strength

With a high torque rating from 130 Nm to 18,000 Nm, our parallel-shaft helical gear units offer great performance in many conveying and processing applications.

You can choose from foot-, flange- or shaft-mounted options. For precise positioning tasks, our parallel-shaft helical gear units are available with reduced backlash.

Installation method and parameter table

Models:

F Series - Foot-mounted, solid shaft output FAB Series - Foot-mounted, hollow shaft output FA Series – Keyed hollow shaft output FF Series – B5 Flange-mounted, solid shaft output FAF Series – B5 Flange-mounted, hollow shaft output FAZ Series – B14 Flange-mounted, hollow shaft output FAT Series – Hollow shaft output, torque arm FH, FHB, FHF, FHZ Series – Hollow shaft output, shrink disk FV, FVB, FVF, FVZ Series – Hollow shaft output, splined hollow shaft F(FA, FF, FAF, FAB, FAZ)S Series – Solid shaft input

Features:

1. Modular design, compact structure. Extra-slim parallel shaft helical gearmotors are the perfect solution when space is limited 2. F series parallel shaft helical gearmotors are typically used in conveyors and materials processing applications 3. Multi-stage(2 or 3 stages) gear units for low output speed 4. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm 5. Can be combined with other types of gearboxes (Such as R Series, UDL Series) 6. Optional mounting options (foot-mounted, flange-mounted, shaft-mounted)

Foot-mounted or flange-mounted B5 or B14 Flange-mounted Solid or hollow shaft Hollow shaft with keyed connection, shrink disk, splined hollow shaft
